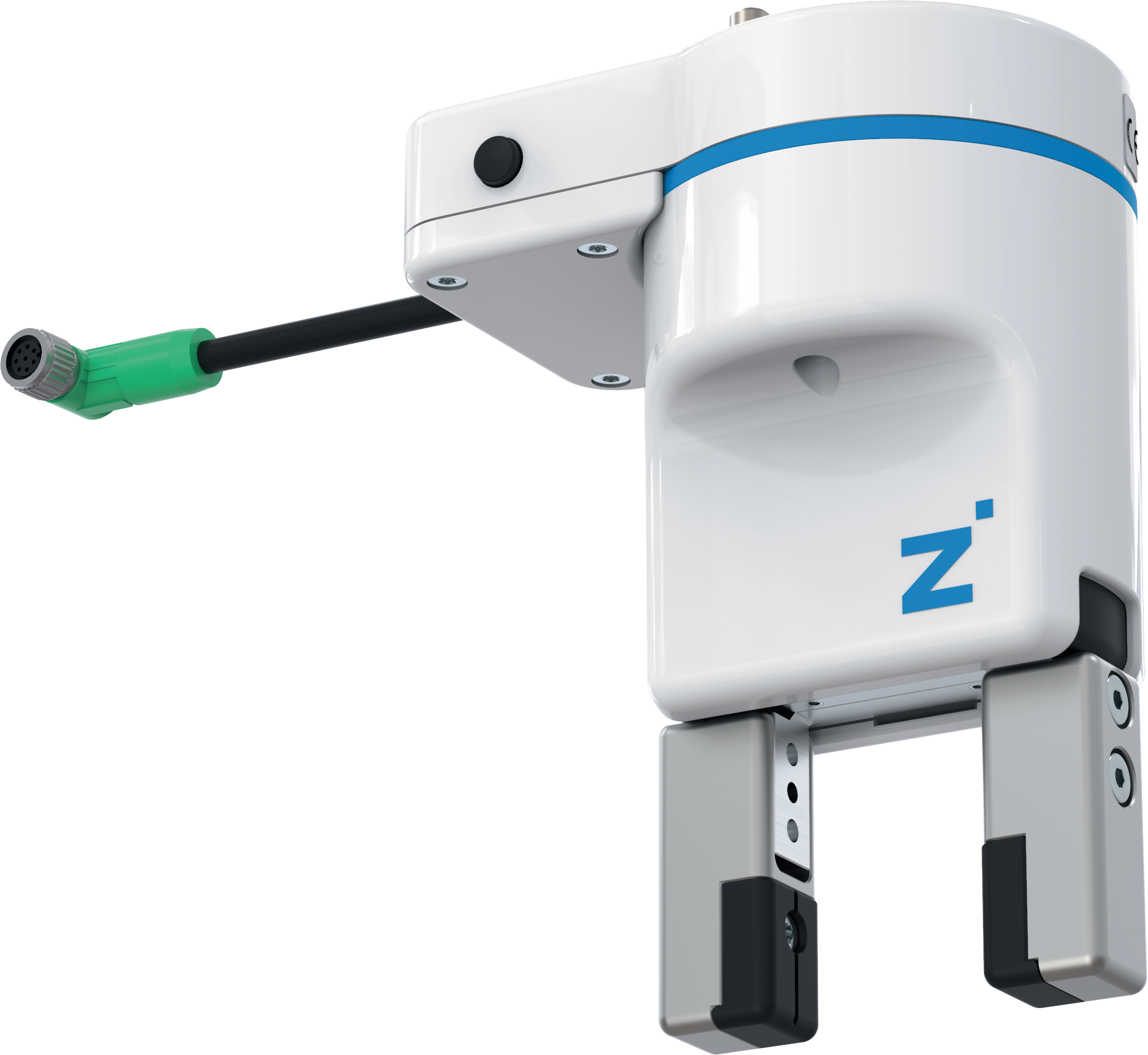

Zimmer HRC-03 | Cobot gripper for DOBOT CRA & Fanuc CRX series

The Zimmer HRC-03 (part number HRC-03-116787) is an electric parallel gripper built for collaborative robotic systems that meet ISO/TS 15066 standards.

This two-jaw gripper provides adjustable gripping force up to 190 N with 10 mm stroke per jaw and maintains repeat accuracy of ±0.05 mm.

At 0.68 kg, it integrates with minimal impact on cobot payload capacity.

This gripper is compatible with Fanuc CRX and Dobot CR3A through CR16A collaborative robot series.

It operates on 24 V DC with 1 A current consumption and offers control through I/O interfaces with integrated analog position feedback (0–10 V) and PNP switching output.

A freely programmable multifunction button and Freedrive support allow operators to manually position the gripper during setup and teach operations.

Internal cable routing protects connections in collaborative workspace environments.

The unit carries IP40 protection class rating and supports ambient temperatures up to 50°C.

The HRC-03 suits assembly operations, electronics manufacturing lines, and packaging processes where collaborative robots handle parts requiring precise, repeatable gripping.

Maximum jaw length is 80 mm.
