  1. Home
  2. Robots & Accessories
  3. YardStick YARO-1105 Cobot, 1100mm reach, 5kg payload
3671-YARO03-dwL_W_AJ

Not sure it fits your cell? Book 20 minutes with an engineer who has specified this part before.

Book a call

Ordered the wrong size or interface? Here is exactly how sending it back works.

In Stock1100mm Reach

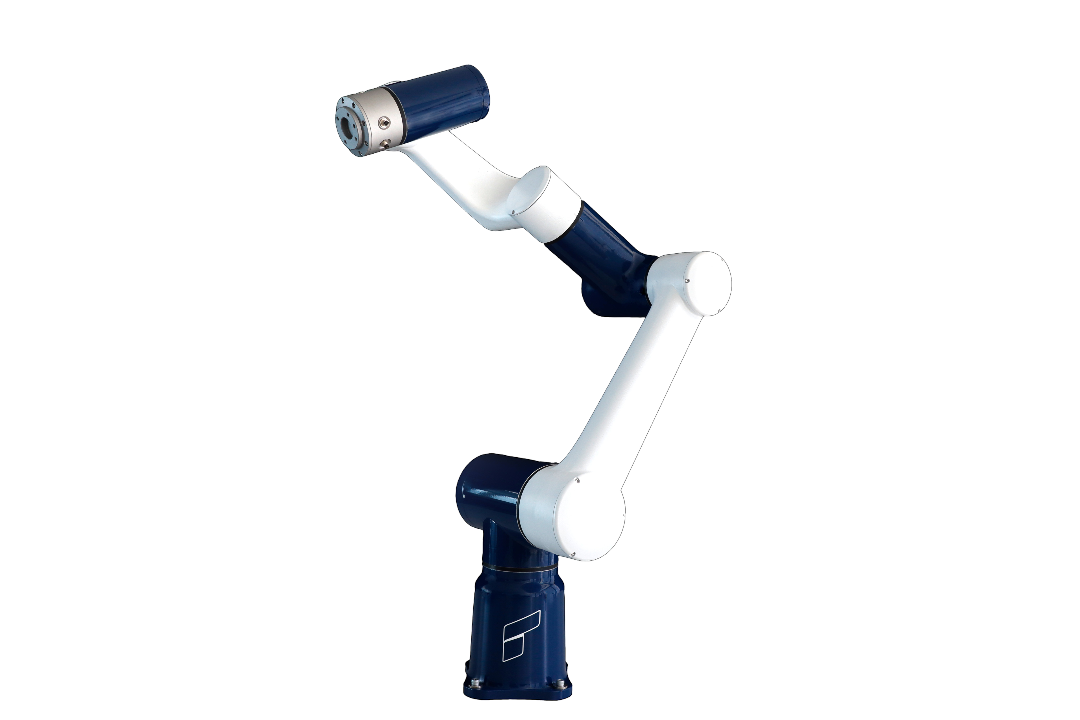

YardStick YARO-1105 Cobot, 1100mm reach, 5kg payload

YardStick Robotics GmbH

$63,000.00

YardStick YARO-1105 six-axis collaborative robot with 1,100 mm reach and 5 kg payload, rated IP67/IP69 for dust, water, and extreme temperatures from –20°C to 50°C. Features 0.1 mm repeatability, mechanical joint brakes, integrated torque sensing, and ISO-9409 tool flange. ATEX-ready for potentially explosive environments.

YardStick YARO-1105 cobot is an articulated industrial robot arm designed for demanding automation, featuring ATEX readiness and IP69 protection for outdoor and washdown collaborative robot workflows.

Specifications:

  • 1100 mm reach, 5 kg payload, 28 kg total weight
  • ISO-9409 tool flange for flexible end-effector mounting
  • IP67 and IP69 rated corrosion-resistant construction
  • Operating range: –20°C to 50°C; repeatability: 0.1 mm

Features:

  • Six degrees of freedom for high flexibility in articulated robot arm applications
  • Mechanical brakes on every joint improve safety and control
  • Integrated torque sensing enhances collaborative operations
  • Mounts in any orientation to support diverse workflows and installation requirements

Software:

  • Modular controller stack with real-time 1 kHz low-level interface
  • Optional advanced packages: object recognition, force and compliance control, vibration compensation, end-effector stabilization
  • Supports 24 V DC power, MODBUS RTU, and 100Base Ethernet for easy integration

Extreme Durability and ATEX Capability:

  • ATEX-ready for deployment in explosive environments
  • IP69 rating ensures resistance to dust, high-pressure water, and washdown conditions
  • Suitable as an outdoor collaborative robot for inspection and handling in harsh and hygienic settings

Comparison to Standard Cobots:

  • IP69 and ATEX-ready YARO-1105 surpasses standard cobots with higher ingress protection and hazardous location capability
  • Corrosion resistance and ambient operation from –20°C to 50°C expand application range beyond indoor use

Best Use Cases:

  • Machine tending and inspection in extreme environments
  • Pick-and-place automation requiring washdown or outdoor deployment
  • Handling tasks within food, chemical, or explosive processing facilities

Frequently Asked Questions:

  • What is IP69? IP69 protection rating signifies resistance to high-pressure, high-temperature water and total dust ingress, ideal for industrial washdown applications.
  • When to use ATEX robots? ATEX certified cobots like YardStick YARO-1105 are used in potentially explosive or hazardous areas requiring heightened safety standards.
  • Best use cases for 6DOF cobots? 6-degree-of-freedom collaborative robots enable complex automation, flexible mounting, and safe human-robot collaboration in inspection, handling, and machine tending scenarios.

Related Products and Categories:

  • Explore more collaborative robots
  • See all robots & accessories
  • View YardStick cobots family
  • Shop robot arm accessories
Weight28 kg
Weight28 kg
Max. Payload5 kg
Max. Reach
1 / 100 mm
DOF
6
Repeatability
0.1 mm
Max. Speed
1
Protection Class
IP67, IP69
Reach
1100 mm
Payload
5 kg
Power Supply
24 V DC, 2 A
Communication
MODBUS RTU, 100Base Ethernet
Degrees of freedom
6
Temperature range
-20°C to 50°C
Certification
ATEX-ready
  • Inspects, handles, and automates in harsh indoor and outdoor settings reliably
  • Reaches 1100 mm and lifts 5 kg with six degrees of freedom
  • Mounts any direction, 0.1 mm repeatability, operates -20°C to 50°C
  • IP69 rated, corrosion resistant, survives washdown and outdoor deployment
  • Six joints with mechanical brakes on each enable safe collaborative work
  • ISO 9409-1 flange accepts any compatible end-effector quickly
  • ATEX-ready for explosive atmospheres, hazardous location certification available
The YARO-1105 is IP69 rated and corrosion resistant, designed to operate reliably in harsh indoor and outdoor settings including washdown and high-pressure water exposure from -20°C to 50°C. It survives outdoor deployment where standard cobots cannot.
The YARO-1105 reaches 1100 mm and lifts 5 kg with six degrees of freedom and 0.1 mm repeatability.
The YARO-1105 is ATEX-ready and can be certified for deployment in explosive environments, making it suitable for handling tasks in chemical and explosive processing facilities.
The YARO-1105 mounts in any direction with an ISO 9409-1 flange that accepts any compatible end-effector, providing flexibility for diverse installation requirements and workflows.
The YARO-1105 features six joints with mechanical brakes on each joint, integrated torque sensing, and a modular controller with real-time 1 kHz low-level interface to enable safe human-robot collaboration.

Cobot for outdoor and washdown vs. standard indoor collaborative robots:

The YARO-1105 is built for harsh environments where typical cobots fail. Choose it when you need IP69 washdown protection, outdoor operation from -20°C to 50°C, corrosion resistance, and ATEX readiness for explosive atmospheres. Standard cobots are rated for controlled indoor settings and cannot survive high-pressure water, temperature extremes, or hazardous locations.

  • For outdoor inspection or handling tasks in changing weather, the IP69 rating and -20°C to 50°C operating range prevent failure where indoor-only cobots require climate control.
  • In food processing, chemical plants, or explosive-atmosphere facilities, ATEX readiness and hazardous location certification enable deployment where standard cobots are prohibited.
  • On high-pressure washdown lines, the corrosion-resistant construction and sealed joints withstand repeated cleaning without degradation.
  • With 1100 mm reach and 5 kg payload, it handles pick-and-place and machine tending in compact outdoor cells where larger payloads are unnecessary.
  • Six degrees of freedom and any-direction mounting support flexible installation in constrained outdoor or hybrid indoor-outdoor workflows.
