XMS robot workstation

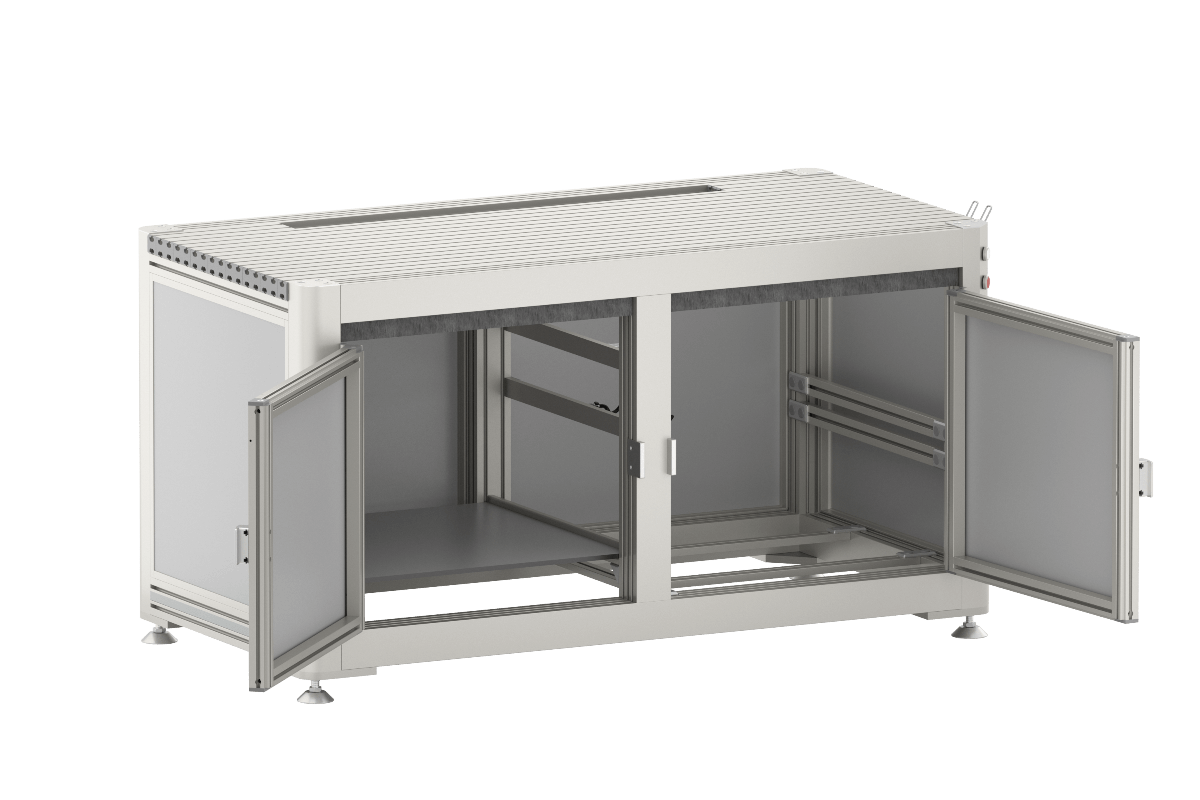

The item XMS Robot Workstation is a structural frame platform that provides a mounting base and work surface for industrial robot applications.

Measuring 1600x800 mm with an 800 mm length dimension, this aluminum profile construction integrates cable routing channels, electrical enclosures, and operator interface mounting points into a single workstation assembly.

The system uses item Groove Plate as a configurable work surface and features XMS series profiles with internal cable ducts for protected wire management.

A lockable base cabinet with two doors provides dust-protected storage for electrical components, with internal suspension provisions for control units and batteries.

The frame accepts robot mounting plates compatible with various robot manufacturers and includes integrated mounting locations for start/stop switches, emergency stop controls, sensors, and accessories.

The workstation is designed for applications requiring a compact robotic cell with organized cable routing and operator control access.

Custom configuration assistance is available from item to adapt the platform to specific project requirements.
