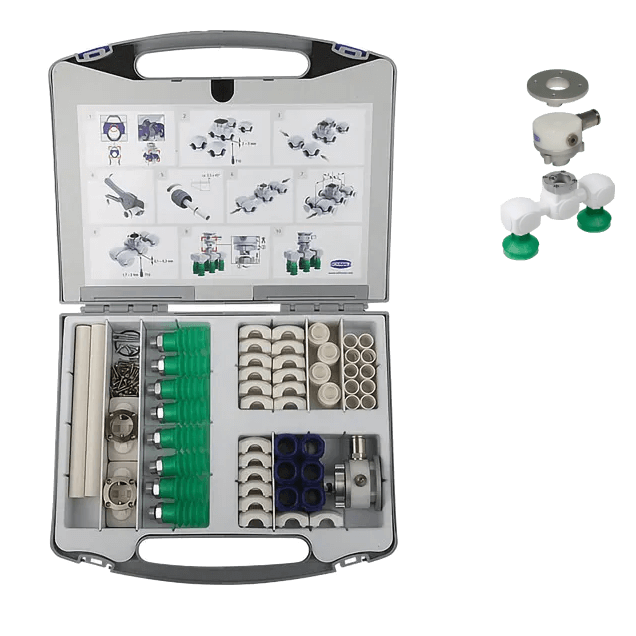

This vacuum gripper build kit from J.
Schmalz provides a complete component set for assembling up to two VEE vacuum end effectors.
The 120-piece kit includes 8 SPB4-30 vacuum suction pads designed for bags and flexible packaging, along with a lockable quick-change adapter featuring a bayonet mount.
The system supports a maximum payload of 2 kg and operates at vacuum levels up to -980 mbar with a maximum rated flow of 60.
It withstands overpressure to 3 bar and functions across a temperature range of -25 °C to +80 °C.
The complete kit weighs 0.065 kg and ships in a durable plastic case with assembly instructions.
Suitable for direct integration into robotic systems or for prototyping and design work where rapid end effector assembly is required.
