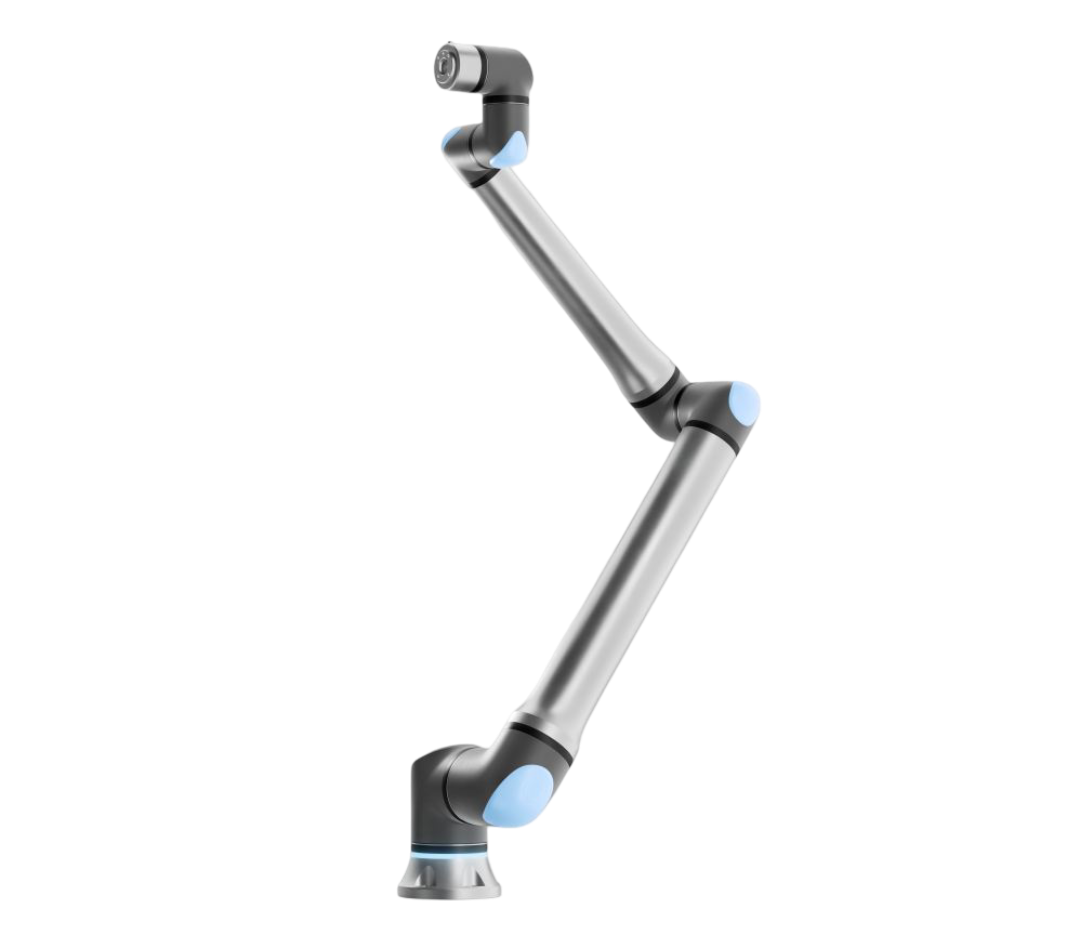

Universal Robots UR8 Long | 6DOF | 1750 mm | 8kg

The Universal Robots UR8 Long is a six-degree-of-freedom collaborative robot designed for applications requiring extended reach combined with precision handling.

With a maximum reach of 1,750 mm and an 8 kg payload capacity, this cobot addresses automation tasks across large work envelopes while maintaining a repeatability of ±0.08 mm.

The unit weighs 44.7 kg and carries an IP65 protection rating, suitable for floor, wall, or ceiling mounting configurations.

This model operates on PolyScope 5/X software and supports MotionPlus for controlled motion profiles.

Network integration is handled through standard industrial protocols including Ethernet/IP, PROFINET, and Modbus TCP.

The Freedrive function enables direct manual positioning of the arm for teaching points and program setup.

Typical applications include welding operations, pick and place routines, quality inspection stations, and material handling where workspace size demands extended reach.

The UR8 Long is manufactured by Universal Robots under part number 201299.
