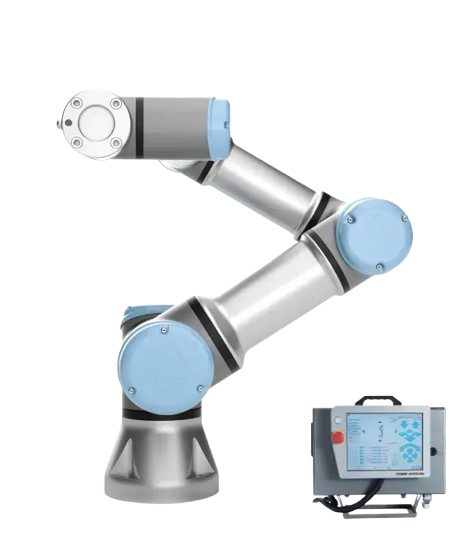

Universal Robots UR3e | 6DOF | 500mm | 3kg

The Universal Robots UR3e is a six-degree-of-freedom collaborative robot engineered for precision automation where space is limited.

With a maximum payload of 3 kg and a reach of 500 mm, it delivers repeatability of ±0.03 mm while occupying a footprint of just Ø 128 mm.

At 11.2 kg, the robot can be easily repositioned or integrated into compact workstations.

The UR3e carries an IP54 protection rating and complies with ISO Class 6/7 cleanroom standards, making it suitable for environments requiring controlled contamination levels.

Operators interact with the robot through Polyscope software on an integrated 12-inch touchscreen.

Tool communication is facilitated by an M8 8-pin connector with 12/24 V power supply.

Typical applications include assembly operations, gluing, screwing, and inspection tasks where precision and spatial constraints are critical factors.

Part number 110403.
