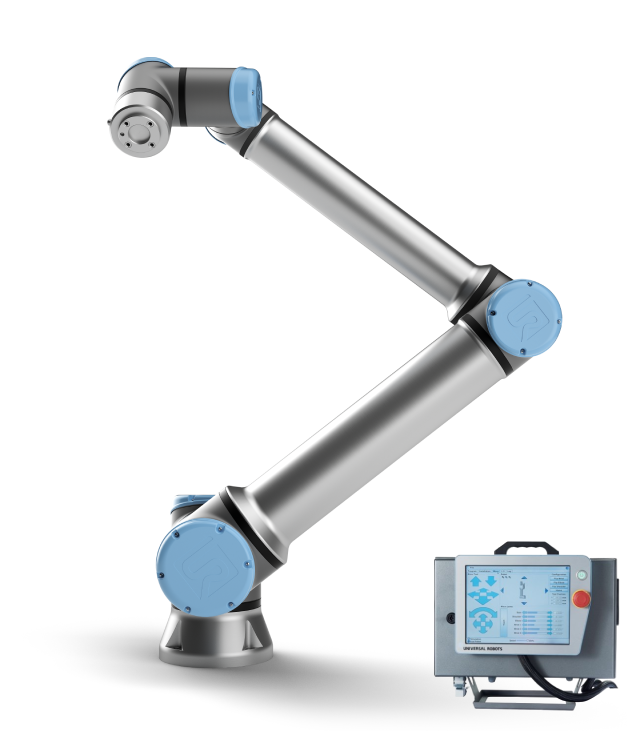

The UR12e is a six-axis collaborative robot designed for applications requiring higher payload capacity combined with precision positioning.
This cobot handles loads up to 12.5 kg across a 1,300 mm reach envelope while maintaining ±0.05 mm repeatability.
At 33.5 kg, the robot offers a compact footprint with a Ø 190 mm base diameter and carries an IP54 protection rating for dust and splash resistance.
Safety integration includes 17 built-in functions certified to PLd Category 3, supporting collaborative operation in shared workspaces.
The Polyscope 5 interface runs on a 12-inch touchscreen, providing direct programming and control access.
Connectivity options include Modbus TCP, PROFINET, Ethernet/IP, and ROS for integration into existing automation architectures.
Both digital and analog I/O are available, and the URCaps platform enables third-party component expansion without custom programming.
Common deployment scenarios include machine tending, packaging operations, quality inspection stations, and material handling tasks involving heavier components or tooling.
The UR12e addresses applications where standard lower-payload cobots lack sufficient capacity but full industrial robots introduce complexity or safety barriers unsuitable for flexible manufacturing environments.
