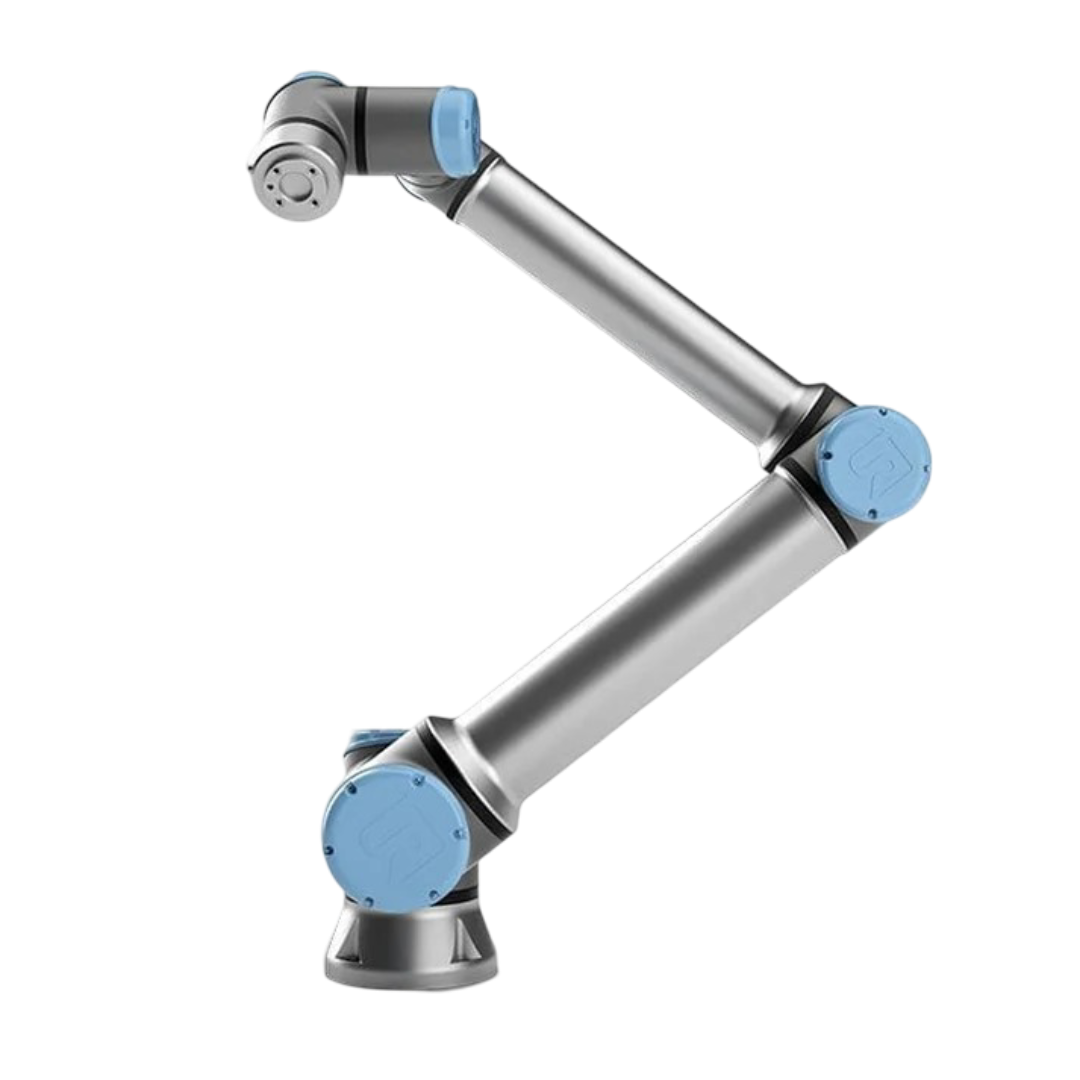

The Universal Robots UR12e is a six-degree-of-freedom collaborative robot designed to handle payloads up to 12.5 kg across a working radius of 1,300 mm.
It delivers positional repeatability of ±0.05 mm and operates at speeds up to 4 m/s.
Weighing 33.5 kg with an IP54 environmental rating, the cobot integrates 17 built-in safety functions certified to PLd Category 3, enabling safe operation alongside human workers.
The UR12e is programmed and controlled through Polyscope 5 software via a 12-inch touchscreen interface.
It supports industrial communication protocols including Modbus TCP, PROFINET, Ethernet/IP, and ROS for integration into existing automation infrastructure.
Expansion capability is provided through digital and analog I/O connections, with URCaps compatibility enabling straightforward integration of third-party hardware and software components.
Typical applications include machine loading and unloading, packaging operations, quality inspection tasks, and handling of heavy components or tooling.
The system's combination of reach, payload capacity, and collaborative safety functions makes it suited for production environments requiring both precision and operator proximity.
