Sprue picker

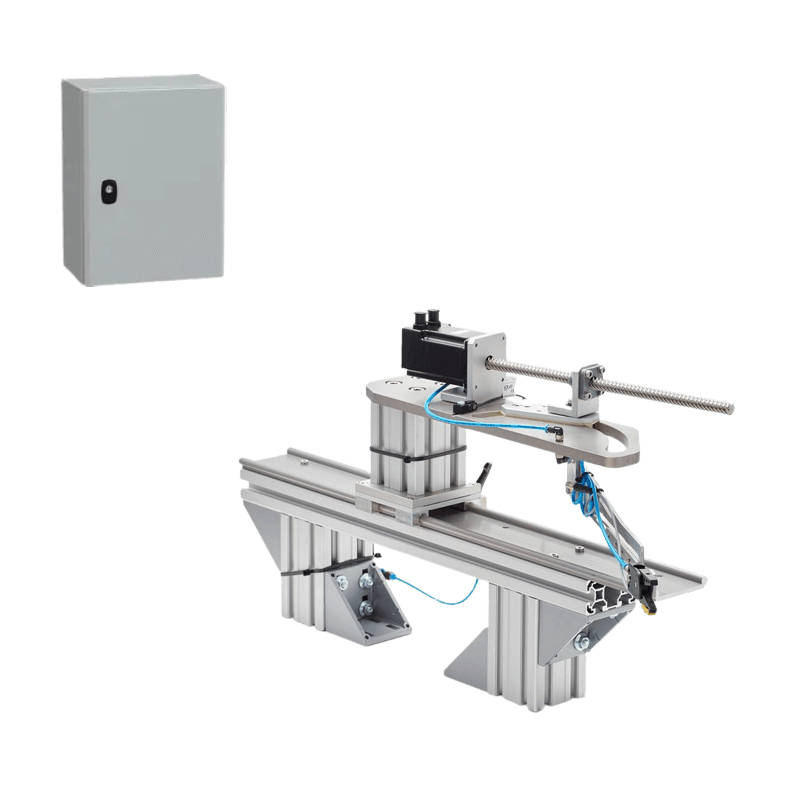

The igus DLE-IAP-001-KIT-2 IAP1.02 is a single-axis sprue picker designed to automate sprue removal from stripper and ejector molds in small injection molding machines.

This electrically driven system achieves lateral sprue ejection and completes a full mold open-and-close cycle in 1.25 seconds.

The unit fits within standard molding machine protective housings and is built for continuous 24/7 operation.

The picker uses lubricant-free igus polymer bearing technology throughout its motion system.

Linear motion is handled by drylin W profile rail guides, while dryspin threaded nuts and spindles provide the drive actuation.

Flat guide drylin N components ensure stable guidance, and iglidur J plain bearings reduce wear at pivot points.

Additional iglidur semi-finished plastic products are incorporated for custom wear parts.

This combination of polymer components enables maintenance-friendly operation in confined machine spaces.

The modular base design allows customization to fit various machine types, and three variants are available to match different integration requirements.

Wear parts are engineered for quick replacement to minimize downtime during service intervals.
