SMC ZXPE5 | Electric vacuum gripper | for FANUC

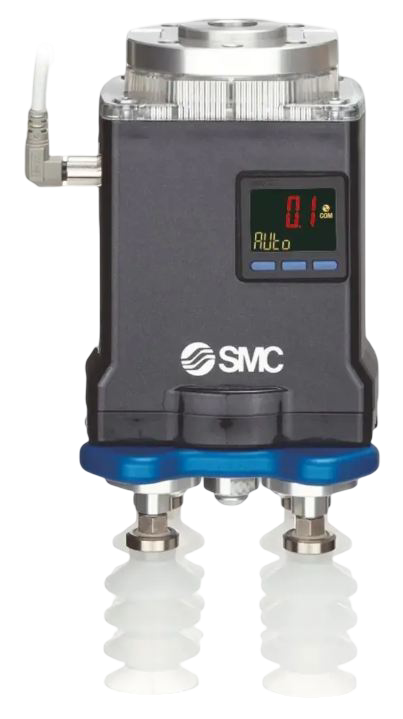

The SMC ZXPE5A051P-25BS-CE is an electric vacuum gripper engineered for FANUC collaborative robots, combining vacuum generation, valving, sensing, and suction cups in a single 0.556 kg end effector.

The unit operates without external compressed air and delivers a maximum gripping force of 5 N.

Its propulsion method is electric, and it is rated for ambient temperatures up to 40 °C.

The gripper mounts via an ISO 9409-1-50-4-M6 tool flange that enables installation and fast changeover using two clamp screws.

Cup configurations are available in diameters from 8 mm to 32 mm, offered in various shapes and materials to accommodate different workpiece geometries and surface types.

The integrated vacuum generation and leak-reducing design are intended to support stable automated handling with reduced setup requirements.

Typical applications include pick-and-place operations, packaging, palletizing, and handling of flexible, uneven, or delicate surfaces where gentle gripping is required.

The ZXPE5 series is designed for direct integration with FANUC CRX collaborative robots through a PNP interface and M8 connector.
