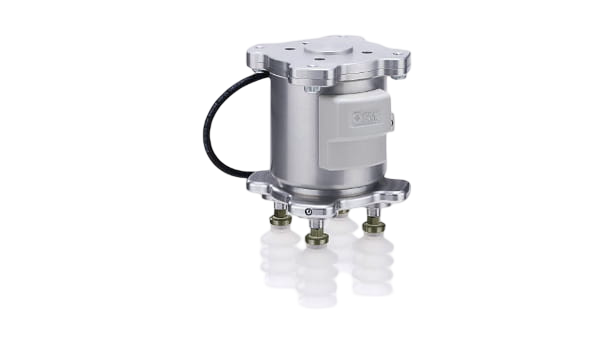

The SMC ZXP-X1 is a fully integrated vacuum gripper unit that consolidates ejector, supply and release valves, pressure sensor, and suction pads into a compact module for collaborative robot applications.
The system operates with a single compressed-air tube and one M8 connector for simplified installation and minimal cabling.
It delivers a maximum work load capacity of up to 7 kg, vacuum pressure of −84 kPa, and 17 L/min suction flow for reliable material handling.
The modular pad system supports multiple configurations, with options for pad diameter, geometry, and material.
Available geometries include flat, bellows, and thin-flat shapes, while material choices span silicone, NBR, and urethane to suit flat, curved, porous, or delicate surfaces.
The gripper conforms to ISO 9409‑1‑50‑4‑M6 mounting standards and is compatible with major collaborative robot brands including Universal Robots, Omron/Techman, FANUC, and Yaskawa.
Typical applications include compact pick-and-place automation, packaging, electronics assembly, laboratory processes, and flexible handling of small parts in collaborative environments.
Part number ZXP7A21-ZP25BS-X1 weighs 0.84 kg.
