SMC ZGS | Vacuum Gripper System | Universal Robots

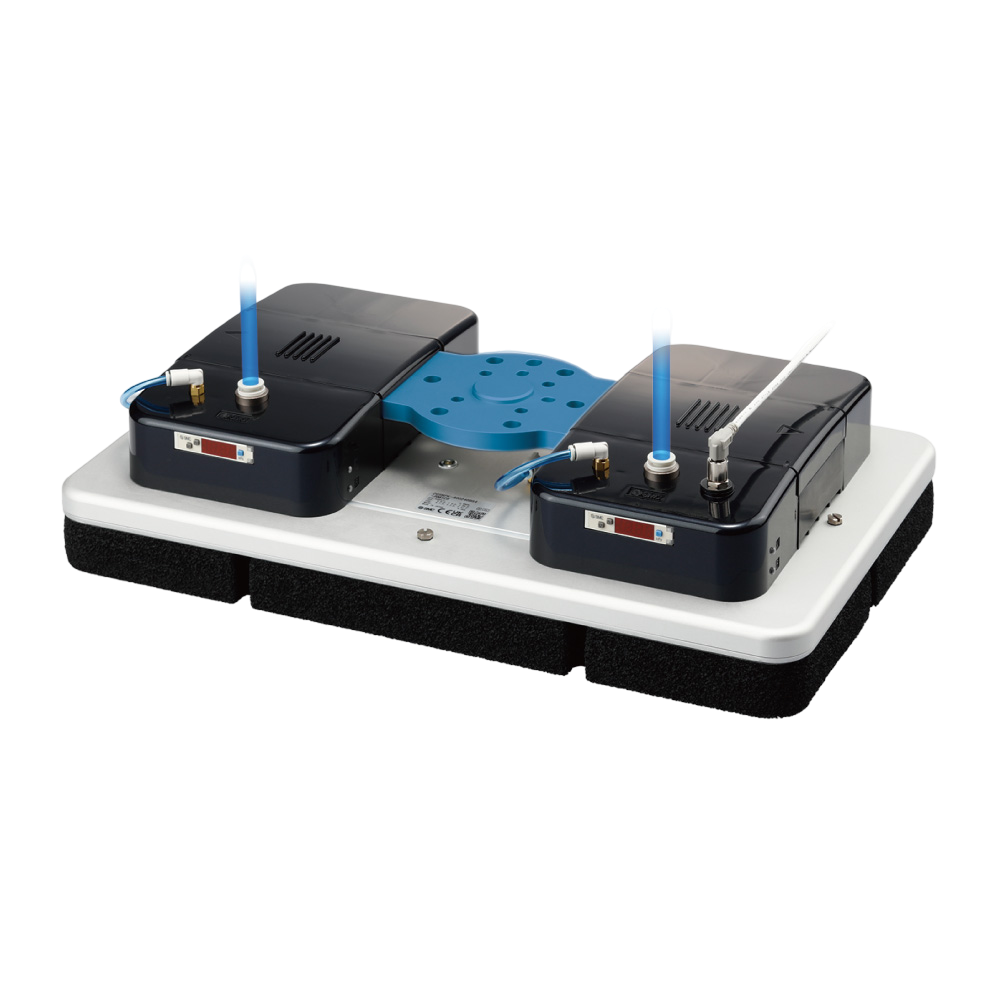

The SMC ZGS vacuum gripper system consolidates ejector unit, valves, silencer, and pressure switch into a single compact assembly that mounts directly to collaborative and industrial robots.

The 400 × 240 mm sponge-type suction surface grips cartons, bags, and uneven items reliably, accommodating mixed goods of varying shapes and sizes.

With a lifting force up to 2144 N at −75 kPa, the system handles demanding palletizing, depalletizing, and packaging applications.

Modular ejector configurations enable users to adjust suction flow and optimize cycle times for specific product characteristics.

The ZGS011PK weighs 1.3 kg and features an ISO-9409-1-50-4-M6 mounting flange for quick integration.

Installation requires only a single air connection and one electrical cable.

Compatible with Universal Robots, Omron/Techman, FANUC, and Yaskawa collaborative robots.

Maximum ambient operating temperature is 50 °C.
