SMC RMTM | Tool Changer | One-push Type

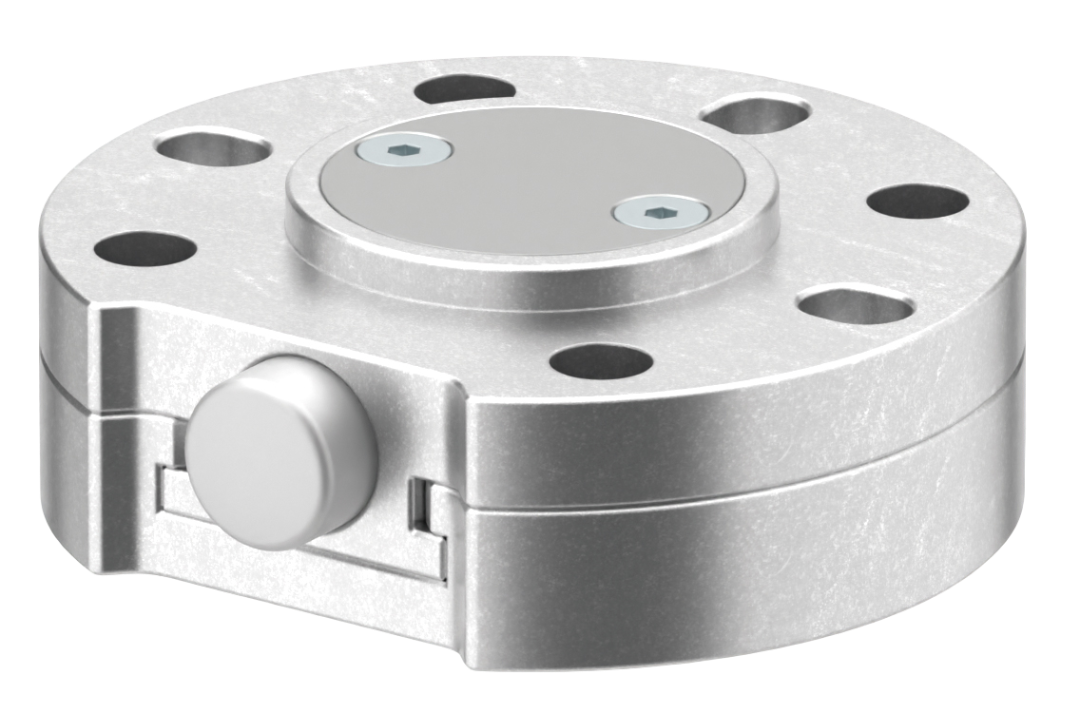

The SMC RMTM1-M1-X101 is a one-push type tool changer designed for rapid, tool-free end-effector swapping on robot systems.

It uses a push-button mechanism to enable secure attachment and release of tooling.

The unit delivers 0.01 mm repeatability and supports loads up to 20 kg.

This compact adapter weighs 0.137 kg and provides mechanical stability with 60 Nm moment and torque resistance.

The design conforms to ISO 9409-1-50-4-M6 for standardized mounting integration.

The modular assembly includes main plate, tool plate, collar assembly, pins, and mounting screws for complete installation.

The RMTM1 is suited for applications requiring frequent tool changes, including pick-and-place operations, machine tending, palletizing, and collaborative robot tasks where minimizing changeover time improves productivity.

Optional 180-degree mounting angle kits are available to accommodate multi-position tool layouts or applications that require reconfiguration flexibility.
