SMC RMTM | Tool Changer | Clamp Type

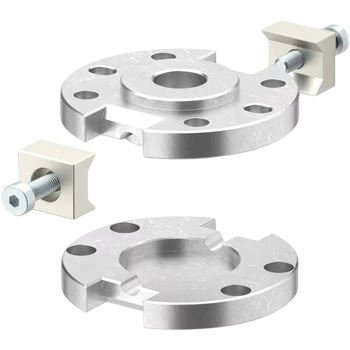

The SMC RMTM2-4M1 is a manual tool changer that uses a two-bolt clamping mechanism to secure end-effector connections on collaborative robot arms.

Built to ISO 9409-1-50-4-M6 specifications, it provides direct mounting compatibility with most collaborative robots and delivers 0.2 mm repeatability for consistent tool positioning across exchanges.

Weighing 0.137 kg with a compact 16 mm height profile, the RMTM2-4M1 minimizes added inertia at the robot wrist, which can improve cycle times in high-speed operations.

The clamping design creates a rigid, vibration-resistant connection suited to applications requiring stable tool mounting under load or where positional accuracy is critical.

This tool changer is appropriate for flexible manufacturing environments where multiple end-effectors must be swapped manually between tasks, including pick-and-place operations, machine tending, and multi-tool production cells.

The system includes both main plate and tool plate components for integration with grippers and other end-of-arm tooling.
