Which robots is the SMC MHM-25D-X7400A-CRX compatible with?

It is compatible with Universal Robots and FANUC collaborative robot platforms, as well as Yaskawa, Omron/Techman, and Mitsubishi systems.

How much gripping force and payload does it provide?

It delivers up to 200 N of gripping force and is rated for workpieces up to 10 kg.

Will it keep holding a part if the air supply is interrupted?

Yes, it maintains magnetic hold even when the air supply is interrupted, supporting process continuity and safety.

What is the mounting interface and connection setup?

It uses an ISO 9409-1-50-4-M6 mounting interface with a single air supply tube and an M8/M12 electrical connection.

What types of parts is this gripper suited for?

It handles ferrous metallic parts with holes, uneven surfaces, or irregular contours where vacuum or mechanical grippers may not achieve reliable contact.

Can the magnetic force be adjusted, and how much does the gripper weigh?

The magnetic force is field-adjustable to match workpiece requirements, and the gripper weighs 0.59 kg with an integrated solenoid valve, auto switch, and speed-adjustment mechanism.

Not sure it fits your cell? Book 20 minutes with an engineer who has specified this part before.

Book a call

Ordered the wrong size or interface? Here is exactly how sending it back works.

In StockLightweight

SMC MHM | magnetic cobot gripper | for UR & Fanuc

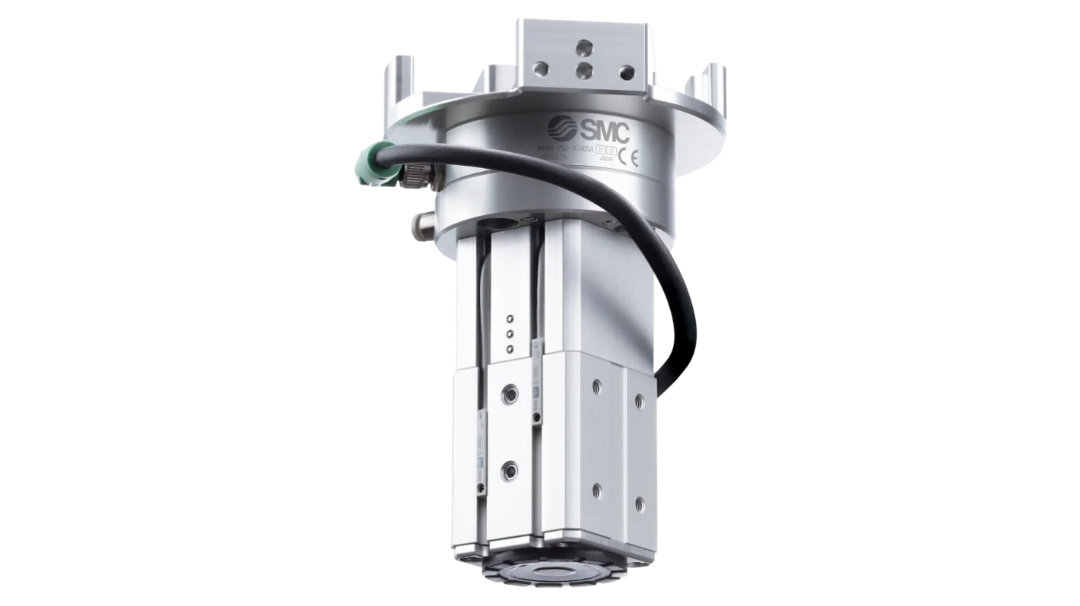

Name: SMC MHM-25D-X7400A-CRX Magnetic Cobot Gripper
Brand: SMC
SKU: 3777
Price: 2095 USD
Availability: InStock

SMC

$2,095.00

Pneumatic magnetic gripper for collaborative robots (UR, FANUC, Yaskawa, Omron, Mitsubishi) that grips ferrous parts up to 10 kg and 200 N. Holds firm during air loss thanks to integrated solenoid valve, switch, and speed control in 0.59 kg. Field-adjustable magnetic force grabs holey and uneven metal parts vacuum grippers miss.

SMC MHM Magnetic Cobot Gripper for UR & FANUC Robots:

The SMC MHM-25D-X7400A-CRX is a magnetic cobot gripper engineered for collaborative robot systems, providing secure handling of ferrous workpieces in industrial environments.

Key Features and Performance:

Magnetic hold: 200 N gripping force, supports up to 10 kg workpiece weight
Pneumatic operation: Integrated solenoid valve and auto switch for reliable activation
Mounting compatibility: ISO 9409-1-50-4-M6 interface
Lightweight design: 0.59 kg

Compatibility and Applications:

Compatible with Universal Robots, FANUC collaborative robots, Yaskawa, Omron/Techman, and Mitsubishi cobot platforms
Suitable as a ferrous workpiece gripper for machine tending, sheet metal handling, and palletizing metal parts
Ideal for challenging surfaces such as uneven, contoured, or holed metal where vacuum or mechanical grippers can be unreliable

Collaborative Safety and Magnetic Control:

The SMC MHM gripper maintains magnetic hold during air supply loss for process safety. Magnetic force is field-adjustable to match specific application needs, supporting safe use with collaborative robots.

Why Choose SMC MHM for Cobot End Effectors:

Streamlined setup with single air supply tube and M8/M12 electrical connection
Operates at a maximum ambient temperature of 50°C
Designed as a robust alternative where vacuum or mechanical grippers are less effective

Compare and Learn More:

Meta Description:

Pneumatic magnetic gripper for cobots with 200N force, solenoid valve, and magnetic hold. UR & FANUC compatible.

Weight0.59 kg

Propulsion MethodPneumatic

Max Gripping force200 N

Recommended workpiece weight: 10 kg
Max. ambient temperature: 50 ℃

Holds firm through air loss — magnetic grip, integrated valve
Holds through air loss — magnetic grip stays put
All-in-one: valve, switch, speed control in 0.59 kg
Tune the pull — field-adjustable magnetic force
Grabs holey, uneven metal parts vacuum grippers miss
Grips ferrous parts securely — up to 200 N
Lifts heavier metal — rated to 10 kg
Fits your fleet — UR, FANUC, Yaskawa, Omron, Mitsubishi

: It is compatible with Universal Robots and FANUC collaborative robot platforms, as well as Yaskawa, Omron/Techman, and Mitsubishi systems.
: It delivers up to 200 N of gripping force and is rated for workpieces up to 10 kg.
: Yes, it maintains magnetic hold even when the air supply is interrupted, supporting process continuity and safety.
: It uses an ISO 9409-1-50-4-M6 mounting interface with a single air supply tube and an M8/M12 electrical connection.
: It handles ferrous metallic parts with holes, uneven surfaces, or irregular contours where vacuum or mechanical grippers may not achieve reliable contact.
: The magnetic force is field-adjustable to match workpiece requirements, and the gripper weighs 0.59 kg with an integrated solenoid valve, auto switch, and speed-adjustment mechanism.

Magnetic cobot gripper vs vacuum or mechanical grippers:

Choose this for ferrous workpieces when weighing a magnetic gripper against vacuum or mechanical options.

For ferrous parts with holes or uneven surfaces, the magnetic grip holds where vacuum or mechanical contact is unreliable.
For air supply interruptions, the magnetic hold stays engaged to support continuity and safety.
For mixed part families, adjustable magnetic force matches the workpiece.
For quick installs in tight cells, the compact unit integrates valve, auto switch, and speed control with one air tube and M8/M12 connection.
For sheet-metal handling, machine tending, and palletizing up to 10 kg, the 200 N grip secures ferrous parts.
For UR, FANUC, Yaskawa, Omron, or Mitsubishi cobots, the ISO 9409-1-50-4-M6 interface simplifies mounting.
