Can the SMC MHM-25D-X7400A gripper work if air pressure is lost?

Yes, the 200 N magnetic hold survives air loss because it uses permanent magnets to retain ferrous parts securely. This makes it safer than vacuum grippers in applications where pressure loss is a risk.

What robot brands does this magnetic gripper mount to?

The SMC MHM-25D-X7400A mounts via ISO 9409-1-50-4-M6 flange directly to Universal Robots, Fanuc, Yaskawa, Omron/Techman, and Mitsubishi cobots. No adapter plate is required for these brands.

How much weight can the MHM-25D-X7400A handle?

The gripper handles payloads up to 10 kg and weighs just 0.59 kg itself. The 200 N magnetic force provides reliable retention for ferrous workpieces within this payload range.

Can this gripper pick up parts with holes or uneven surfaces?

Yes, the magnetic gripper handles holed, uneven, and non-flat ferrous parts that vacuum grippers cannot grip. Magnetic force works without requiring an airtight seal, making it suitable for complex part geometries.

What does a magnetic gripper need to work?

The SMC MHM-25D-X7400A requires a single pneumatic connection that integrates a solenoid valve, auto-switch, and speed adjustment. It does not need a perfect seal or external valve assembly, simplifying setup compared to vacuum grippers.

What temperature can this magnetic cobot gripper operate in?

The gripper operates in ambient temperatures up to 50°C for use in demanding production settings. It is rated for reliable performance within this thermal range.

Not sure it fits your cell? Book 20 minutes with an engineer who has specified this part before.

Book a call

Ordered the wrong size or interface? Here is exactly how sending it back works.

In StockPowerful Grip

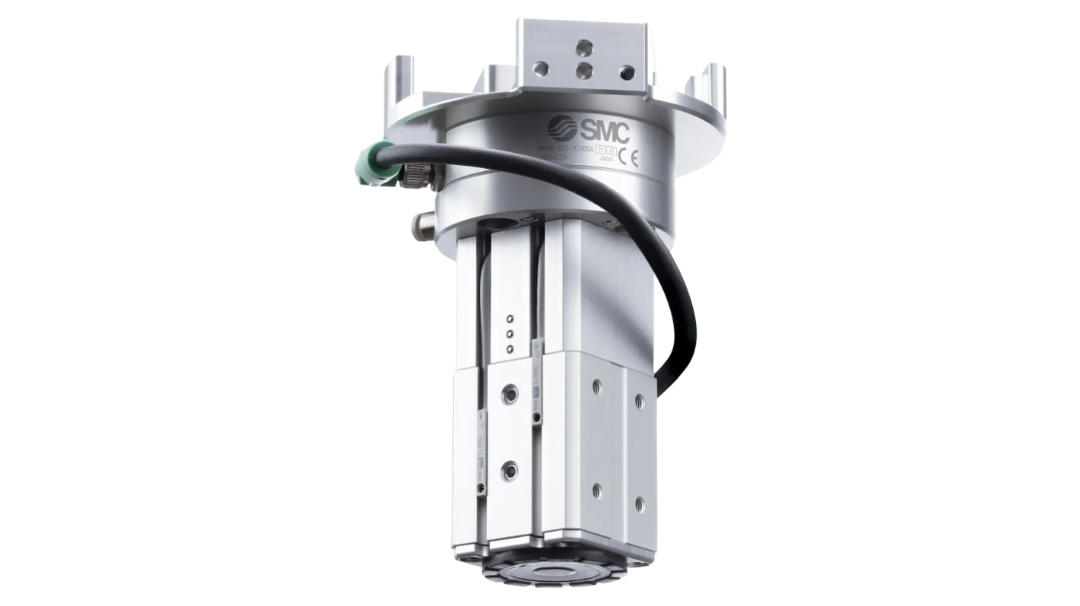

SMC MHM-25D-X7400A Magnetic Cobot Gripper, 200 N

Name: SMC MHM-25D-X7400A Magnetic Cobot Gripper, 200 N
Brand: SMC
SKU: 3776
Price: 2195 USD
Availability: InStock

SMC

$2,195.00

Pneumatic magnetic gripper for collaborative robots, gripping ferrous workpieces up to 10 kg with 200 N force. Holds load during air loss, M8/M12 connection, ISO 9409-1-50-4-M6 mount. Ideal for sheet metal, machine tending, palletizing.

SMC MHM-25D-X7400A Magnetic Cobot Gripper, 200 N for Collaborative Robots:

The SMC MHM-25D-X7400A magnetic cobot gripper is a pneumatic end effector engineered for secure handling of ferrous workpieces in collaborative robot applications.

Gripping force: 200 N for reliable retention
Weight: 0.59 kg
Payload: Up to 10 kg
Mounting: ISO 9409-1-50-4-M6 flange for direct attachment to Universal Robots, Fanuc, Yaskawa, Omron/Techman, Mitsubishi cobots

Versatile and Efficient Magnetic Gripping:

The SMC MHM-25D-X7400A gripper uses powerful permanent magnets, maintaining grip on sheet metal and other steel components even if air pressure is lost. This makes it a safe choice for applications such as machine tending, palletizing, and flexible sheet metal manufacturing. The design supports retention of parts with holes, uneven surfaces, and non-flat contours, outperforming vacuum grippers in many tasks where an airtight seal is not possible.

Key Features and Benefits:

Single-tube air connection: Integrated solenoid valve, auto-switch, and speed adjustment enable simplified setup, reducing pneumatic and wiring complexity, which lowers installation time and cost compared to external valve assemblies on alternative grippers.
Adjustable magnetic force: Tune the holding power to match varying workpiece requirements, improving process control and flexibility in mixed production environments.
Operating temperature: Rated for ambient temperatures up to 50°C for use in demanding production settings.
ISO 9409-1 compliance: Ensures compatibility with leading cobot brands and many modular end effector interfaces.

Applications and Compatibility:

The MHM-25D-X7400A magnetic cobot gripper is well suited for sheet metal magnetic gripper tasks, handling steel, iron, and related ferromagnetic materials in automated lines. Common uses include machine tending, robotic palletizing, and manufacturing cell automation requiring reliable, residue-free metal part handling.

Compare with Other Solutions:

For workpieces or conditions where vacuum grippers are unreliable, the SMC MHM-25D-X7400A magnetic gripper provides strong holding power without the need for a perfect seal. Explore other vacuum grippers, end effectors and tooling, and compatible robot platforms for different applications.

Certifications and Support:

Manufactured by SMC and compliant with ISO 9409-1 mounting standards, the SMC MHM-25D-X7400A gripper is engineered for reliability in industrial environments. Please refer to the datasheet for details on certifications.

Next Steps:

To maximize value and productivity over time, the SMC MHM-25D-X7400A magnetic cobot gripper offers performance advantages that justify investment compared to conventional vacuum grippers. Add to Cart, Request Quote, or Compare with other magnetic and vacuum grippers to select the right end effector for your application.

Weight0.59 kg

Max Gripping force200 N

Recommended workpiece weight10 kg

Propulsion Method: Pneumatic
Max. ambient temperature: 50 ℃
Reach: N/A
Repeatability: N/A
IP Rating: N/A
Power Supply: N/A

Grips ferrous parts securely, 200 N magnetic hold survives air loss
Weighs just 0.59 kg, handles payloads up to 10 kg
Mounts via ISO 9409-1-50-4-M6 flange to Universal Robots, Fanuc, Yaskawa, Omron/Techman, Mitsubishi
Single pneumatic connection integrates solenoid valve, auto-switch, speed adjustment
Adjustable magnetic force matches varying workpiece requirements in mixed production
Operates in ambient temperatures up to 50°C for demanding settings
Handles holed, uneven, non-flat ferrous parts vacuum grippers cannot grip

: Yes, the 200 N magnetic hold survives air loss because it uses permanent magnets to retain ferrous parts securely. This makes it safer than vacuum grippers in applications where pressure loss is a risk.
: The SMC MHM-25D-X7400A mounts via ISO 9409-1-50-4-M6 flange directly to Universal Robots, Fanuc, Yaskawa, Omron/Techman, and Mitsubishi cobots. No adapter plate is required for these brands.
: The gripper handles payloads up to 10 kg and weighs just 0.59 kg itself. The 200 N magnetic force provides reliable retention for ferrous workpieces within this payload range.
: Yes, the magnetic gripper handles holed, uneven, and non-flat ferrous parts that vacuum grippers cannot grip. Magnetic force works without requiring an airtight seal, making it suitable for complex part geometries.
: The SMC MHM-25D-X7400A requires a single pneumatic connection that integrates a solenoid valve, auto-switch, and speed adjustment. It does not need a perfect seal or external valve assembly, simplifying setup compared to vacuum grippers.
: The gripper operates in ambient temperatures up to 50°C for use in demanding production settings. It is rated for reliable performance within this thermal range.

Magnetic versus vacuum grippers for ferrous parts:

Choose this magnetic gripper when you need to handle steel and iron workpieces that vacuum grippers cannot reliably grip. Vacuum grippers require an airtight seal, so they fail on holed, uneven, or non-flat ferrous parts. This magnetic gripper maintains 200 N hold even if air pressure is lost, and works on any ferromagnetic surface.

For sheet metal with holes or irregular surfaces, magnetic force eliminates the need for a perfect seal that vacuum cannot achieve.
For mixed production with varying part geometries, adjustable magnetic force tunes holding power to each workpiece without tool changes.
For tight collaborative cells, the 0.59 kg weight and integrated pneumatic valve (solenoid, auto-switch, speed adjustment in one connection) reduce payload used and installation complexity versus external valve assemblies.
For payloads up to 10 kg in machine tending and palletizing, the 200 N grip survives power loss, improving safety in shared human-robot workspaces.
For hot or demanding environments up to 50°C, permanent magnet operation requires no active cooling or environmental conditioning.
