What is the gripping force of the SMC LEHR32K2-50A-011-E?

The SMC LEHR32K2-50A-011-E delivers a maximum gripping force of 140 N with 0.1 mm repeatability.

Does this electric gripper need power to hold an object?

No, the slide-screw self-locking mechanism maintains gripping force during power interruptions, so continuous power is not required to hold an object.

Which collaborative robots is this gripper compatible with?

The gripper is certified for use with Universal Robots, FANUC, and Omron/Techman collaborative robots.

How does this gripper mount to a robot?

It mounts via ISO 9409-1-50-4-M6 flange and connects through a single M8 interface for streamlined installation.

What does the encoder do on this gripper?

The battery-less absolute encoder eliminates homing routines by immediately restoring finger position upon restart without requiring calibration.

What stroke distance does this gripper have?

The gripper has a 50 mm stroke capacity for opening and closing the fingers.

Not sure it fits your cell? Book 20 minutes with an engineer who has specified this part before.

Book a call

Ordered the wrong size or interface? Here is exactly how sending it back works.

In StockCollaborative Ready

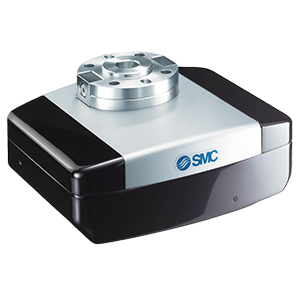

SMC LEHR32K2-50A-011-E Electric Gripper, 140 N

Name: SMC LEHR32K2-50A-011-E Electric Gripper, 140 N
Brand: SMC
SKU: 3760
Price: 7695 USD
Availability: InStock

SMC

$7,695.00

140 N electric gripper for collaborative robots with slide-screw self-locking drive, battery-less encoder, and 0.1 mm repeatability. Certified for Universal Robots, FANUC, and Techman.

SMC LEHR32K2-50A-011-E electric gripper is a 1 kg end effector designed for engineers, integrators, and facility managers seeking a Universal Robots compatible solution for collaborative automation.

Features of the SMC LEHR32K2-50A-011-E electric gripper:

Maximum gripping force: 140 N
Stroke: 50 mm
Repeatability: 0.1 mm
Mounting interface: ISO 9409-1-50-4-M6 flange

Key advantages for collaborative robotics:

Compatible with Universal Robots, FANUC, and Omron/Techman cobots for streamlined integration
Slide-screw self-locking mechanism maintains grip during power loss, reducing risk of dropped parts
Battery-less absolute encoder restores finger position after restart without homing, minimizing downtime
Supports a range of pad and finger options, enabling adaptation to varied part shapes and sizes

Typical applications for the SMC LEHR32K2-50A-011-E electric gripper:

Pick-and-place operations in automated cells
Precision component assembly in electronics or medical device manufacturing
Laboratory automation where repeatable gripping is critical

Why choose the SMC LEHR32K2-50A-011-E as an electric gripper for Universal Robots:

The SMC LEHR32K2-50A-011-E electric gripper suits applications demanding reliable grip retention without constant power, thanks to a self-locking drive that cuts energy usage and maintains position. Single M8 connection streamlines installation, and flexible configuration options fit a wide range of workpieces from delicate components to medium payloads.

Explore more collaborative grippers:

Weight1 kg

Max Gripping force140 N

Repeatability0.1 mm

Payload: 1 kg
Reach: 50 mm
Mounting Interface: ISO 9409-1-50-4-M6
Gripping Force: 140 N

Encoder-equipped electric gripper locks grip without power, ideal for cobots

: The SMC LEHR32K2-50A-011-E delivers a maximum gripping force of 140 N with 0.1 mm repeatability.
: No, the slide-screw self-locking mechanism maintains gripping force during power interruptions, so continuous power is not required to hold an object.
: The gripper is certified for use with Universal Robots, FANUC, and Omron/Techman collaborative robots.
: It mounts via ISO 9409-1-50-4-M6 flange and connects through a single M8 interface for streamlined installation.
: The battery-less absolute encoder eliminates homing routines by immediately restoring finger position upon restart without requiring calibration.
: The gripper has a 50 mm stroke capacity for opening and closing the fingers.

Electric gripper versus pneumatic or vacuum alternatives:

The SMC LEHR32K2-50A-011-E is an electric gripper designed for cobots where power retention and encoder positioning matter more than maximum speed. It contrasts with pneumatic grippers that require compressed air lines and cannot hold grip during air loss, and with vacuum systems that depend on constant suction.

For delicate electronics or medical components needing 0.1 mm repeatability, the encoder restores finger position after a restart without homing, cutting downtime versus pneumatic grippers that lose position on power cycling.
On collaborative cells where parts must stay gripped during emergency stops, the self-locking slide-screw mechanism holds 140 N grip without power, eliminating dropped-part risk that vacuum or spring-return pneumatic designs face.
In labs or light assembly lines with varied part shapes, interchangeable pad and finger options adapt quickly to changing workpieces without tool changes, whereas fixed pneumatic jaws require setup time.
For pick-and-place on Universal Robots with a single M8 connection, the 1 kg weight and ISO 9409-1-50-4 mount integrate faster than retrofit pneumatic manifolds or magnetic systems.
