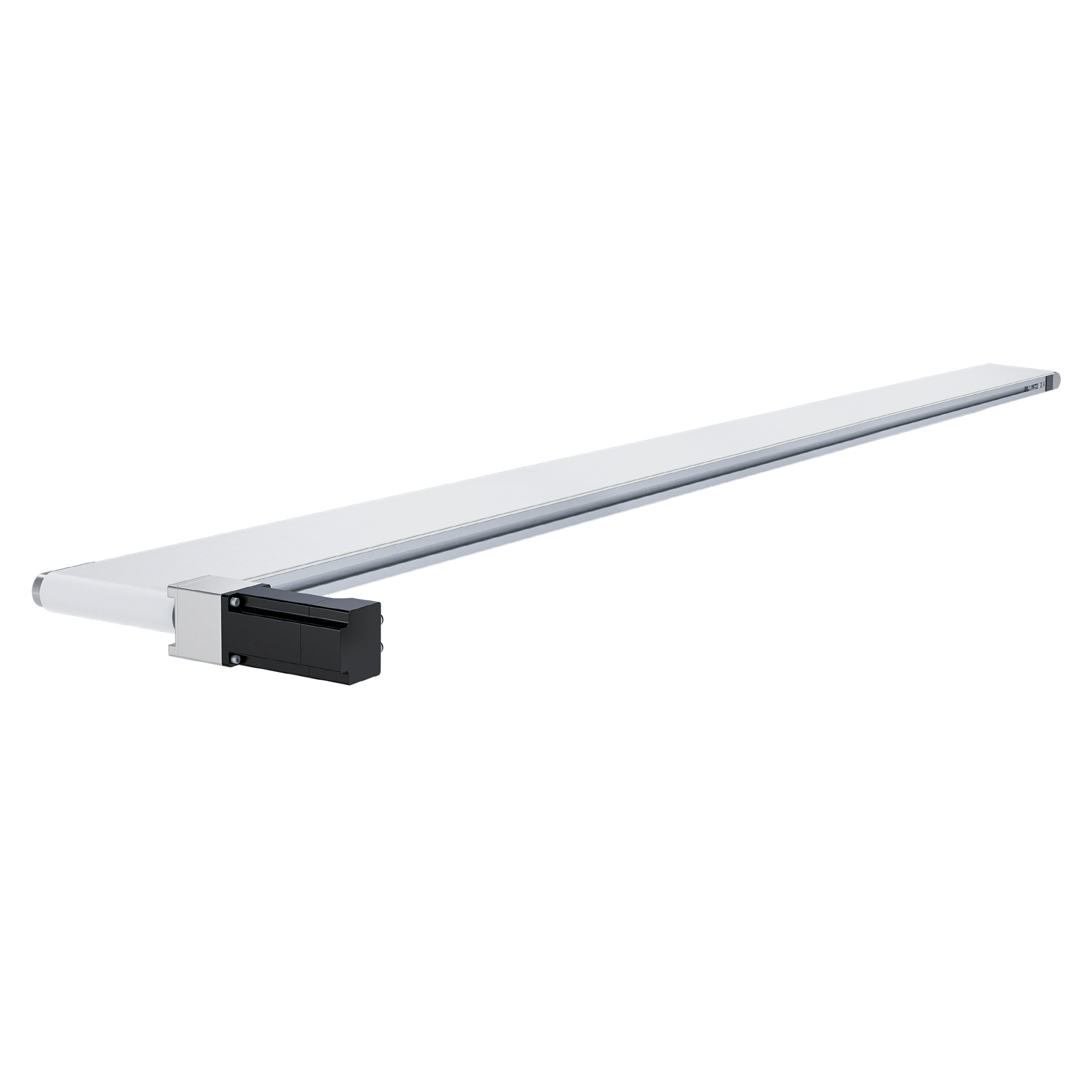

The Small Conveyor GUF-P MINI AF from Maschinenbau Kitz GmbH is a profile-based belt conveyor built for transporting small, lightweight components up to 25 kg.
Measuring 150 mm wide by 2,000 mm long, this unit delivers a low installation height suited to tight integration scenarios in automated cells and assembly stations.
The reduced diameter of its drive and idler rollers minimizes transfer gaps during product handoff.
Both sides of the conveyor frame incorporate T-slots with 10 mm slot width, enabling straightforward mounting to machine frames and attachment of side rails, sensors, or other peripherals.
These slots also support installation of a full-length conveyor stand to accommodate uneven floors, machine bed protrusions, or height offsets.
Power and control signals are managed through the Igus Robot Control interface.
This conveyor is available for customization to meet specific application requirements.
Part number 02-10024231-DE1 ships without accessories or base frame; contact Axton Robotics for configuration guidance and availability of mounting hardware.
