Small Conveyor GUF-P MINI AF

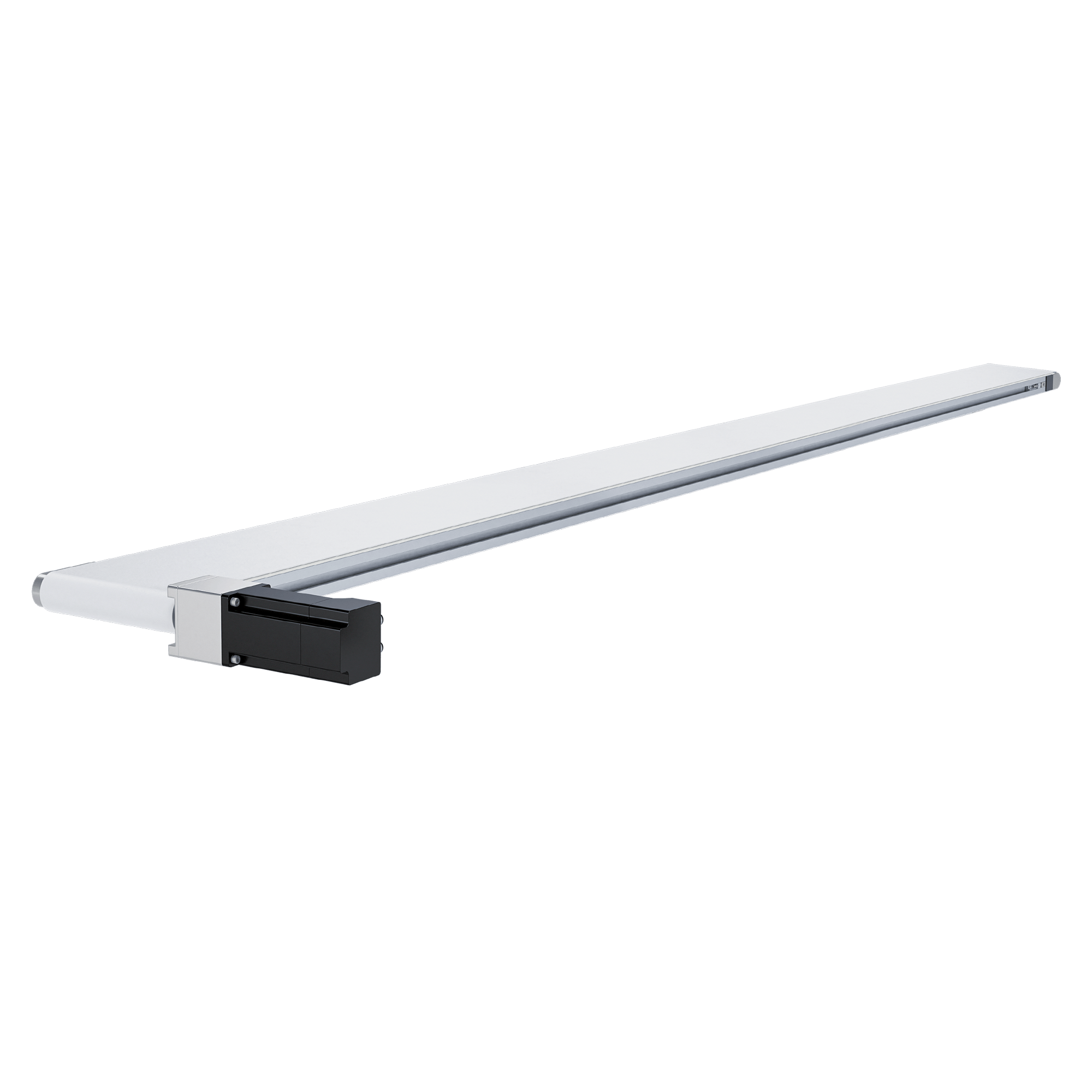

The Maschinenbau Kitz GUF-P MINI AF is a 1,000 mm long by 300 mm wide belt conveyor built on a modular profile design, rated for payloads up to 25 kg.

This unit is engineered for moving small, lightweight parts in environments where vertical clearance is limited.

The low-profile construction and small-diameter drive and idler rollers minimize transfer gaps, reducing the risk of product hangups at transition points.

The conveyor frame incorporates T-slots with 10 mm slot width running along both sides, enabling direct attachment to machine frames and providing mounting points for side rails, sensors, and other peripherals.

These slots also support optional conveyor stands that can be installed along the full frame length to navigate uneven floors or projecting machine bed edges.

Power supply and control are handled through the Igus Robot Control system.

This unit ships without accessories or a base frame; both are available upon request.

Customization options are available to meet specific application requirements.
