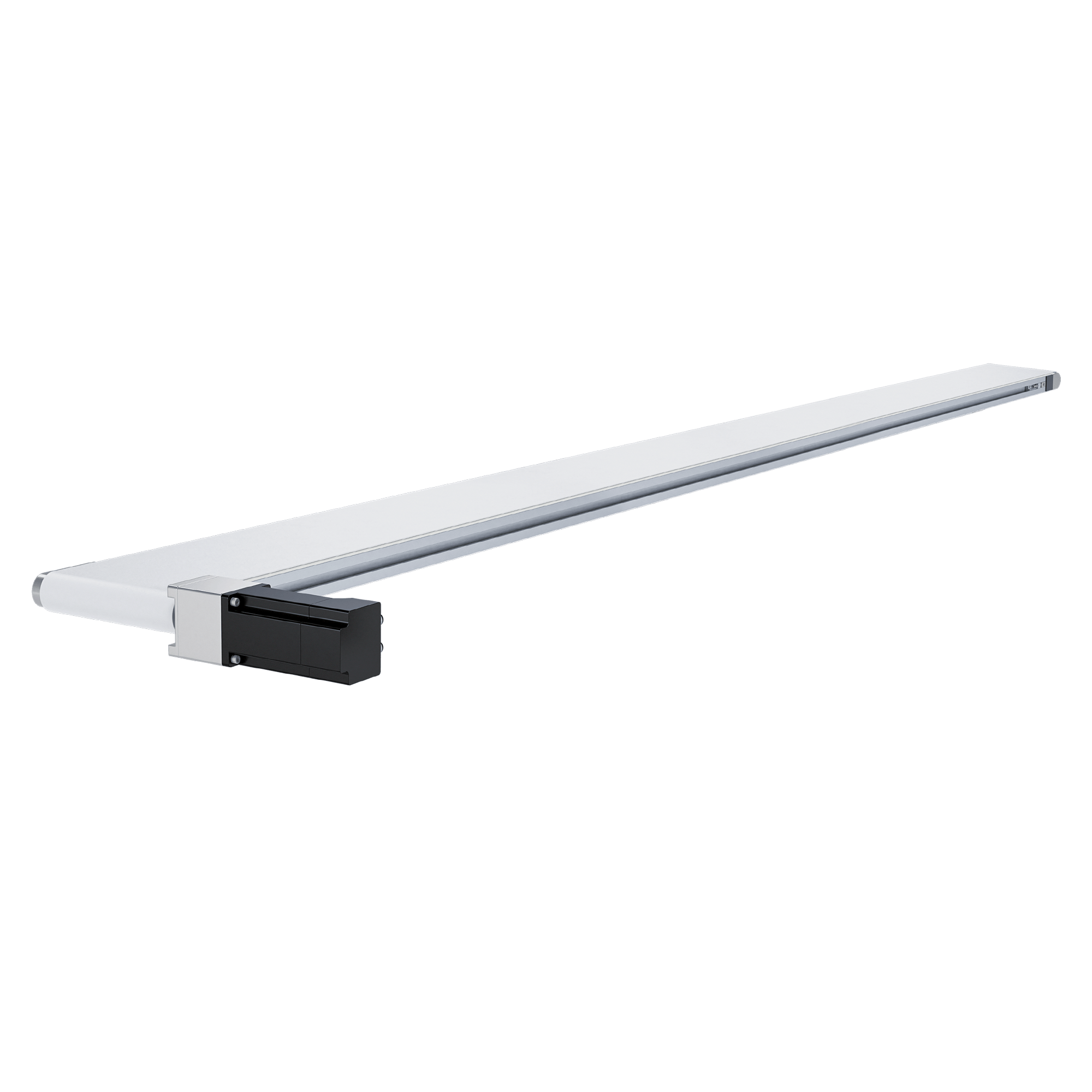

The Small Conveyor GUF-P MINI AF from Maschinenbau Kitz GmbH is a belt conveyor built on a modular profile frame, rated for payloads up to 25 kg.
The unit measures 200 mm wide and 1,500 mm long, making it suitable for transporting small, lightweight components in low-volume applications.
Its minimal installation height allows integration into space-constrained systems, and the small-diameter drive and idler rollers reduce transfer gaps between conveyor sections or adjacent equipment.
The conveyor frame incorporates T-slots with 10 mm slot width running along both sides.
These slots provide mounting points for attaching the conveyor to machine frames, installing side rails, mounting sensors, or adding other accessories.
The T-slot design also accommodates optional conveyor stands along the frame's full length to clear uneven floors, machine bed protrusions, or ledges.
Power supply and control are handled through the Igus Robot Control system.
Customization is available to meet specific application requirements.
Note that accessories and a base frame are not included with the unit.
