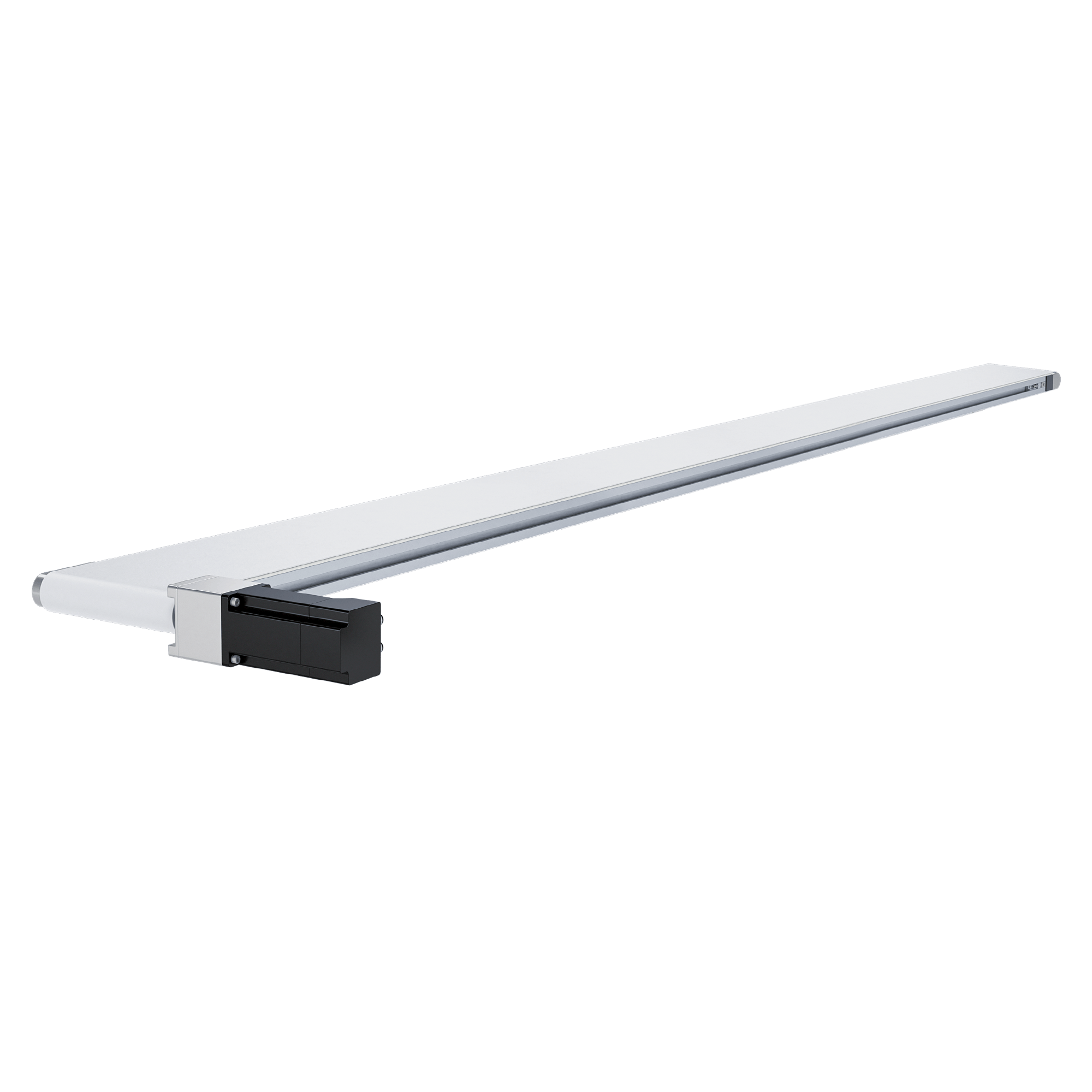

Small Conveyor GUF-P MINI AF

The Small Conveyor GUF-P MINI AF is a belt conveyor manufactured by Maschinenbau Kitz GmbH for handling small parts up to 25 kg.

This unit measures 100 mm in width and 1,500 mm in length, with a modular profile design that provides a minimal installation height suitable for space-constrained automation systems.

The compact drive and idler roller diameters reduce transfer gaps between conveyor sections.

The conveyor frame incorporates T-slots with 10 mm slot width running along both sides, enabling mounting to machine frames and attachment of side rails, sensors, or other components.

These slots also support optional conveyor stands that can span the frame's full length to clear uneven surfaces or projecting edges in the work area.

Power and control integration is handled through the Igus Robot Control system.

The unit ships without accessories or a base frame; customization is available to meet specific application requirements.

Part number 02-10025204-DE1.
