Small | 2-Finger | Pneumatic | 1.5 - 10mm Stroke

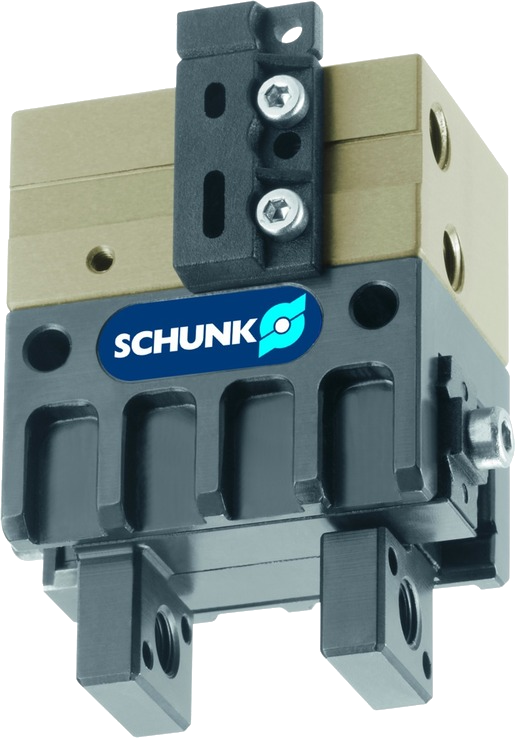

The SCHUNK 305513 is a pneumatic two-finger parallel gripper built for small-component handling in industrial automation environments.

With 4 mm stroke per jaw and a maximum gripping force of 105 N, this compact gripper weighs 0.13 kg and delivers 0.02 mm repeatability for consistent part positioning.

It handles workpieces up to 0.43 kg recommended weight and operates in ambient temperatures up to 90°C.

This gripper suits applications requiring precise manipulation of small parts in confined spaces, including electronics assembly, pick-and-place operations, testing stations, and compact robotic cells.

The combination of short stroke and high repeatability makes it appropriate for high-cycle automation tasks where speed and positioning accuracy are critical.

When selecting this gripper, consider the 4 mm per-jaw stroke range in relation to your workpiece dimensions and the 105 N gripping force against your part handling requirements.

The 0.43 kg workpiece weight recommendation provides guidance for safe, reliable operation within the gripper's design parameters.
