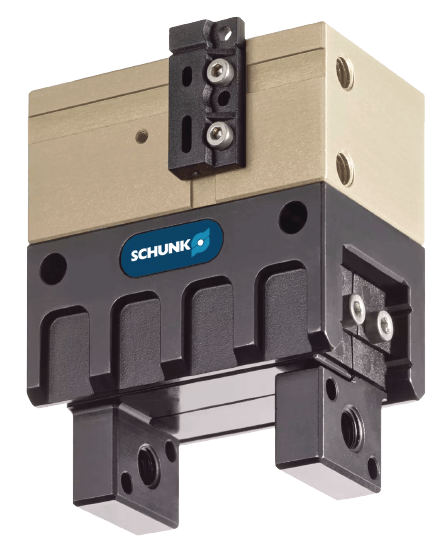

This SCHUNK pneumatic parallel gripper delivers precision handling for small components with 8 mm stroke per jaw and 270 N maximum gripping force.
Weighing 0.37 kg, the unit is rated for workpieces up to 1.05 kg and maintains 0.02 mm repeatability in ambient temperatures up to 90°C.
The gripper employs double-roller base-jaw guidance combined with a cross-roller system for low-friction operation, while an oval piston drive maintains gripping force even with extended finger configurations.
A wedge-hook mechanism provides synchronized jaw movement and structural rigidity during operation.
Food-grade lubrication is standard, and optional gripping-force maintenance enhances reliability in continuous-duty applications.
The unit accepts direct air supply or threaded pneumatic connections and accommodates electronic magnetic switches and optional flexible position sensing.
Standardized mounting interfaces on two sides with four screw directions support integration into modular automation systems.
Suitable applications include assembly operations, testing procedures, electronics handling, laboratory automation, and pick-and-place tasks involving small to medium components.
