Small | 2-Finger | Pneumatic | 1.5 - 10mm Stroke

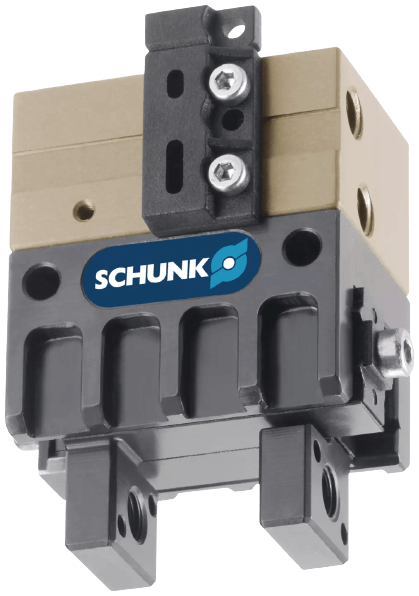

The SCHUNK 305512 is a pneumatic parallel gripper engineered for high-precision manipulation of small workpieces in automated systems.

This compact unit delivers a maximum gripping force of 105 N with a 4 mm stroke per jaw and maintains positioning repeatability of 0.02 mm, suitable for handling workpieces up to 0.43 kg.

Weighing just 0.13 kg, the gripper operates in ambient temperatures up to 90°C and features food-grade lubrication for clean manufacturing environments.

The design incorporates standardized mounting from two sides with four screw directions, facilitating integration into modular automation layouts.

Optional AS/IS gripping-force maintenance functionality supports continuous operation in demanding production cycles.

This gripper is appropriate for assembly operations, electronics handling, testing stations, laboratory automation, and pick-and-place applications where compact size and precise control are required for small to medium components.
