Small | 2-Finger | Pneumatic | 1.5 - 10mm Stroke

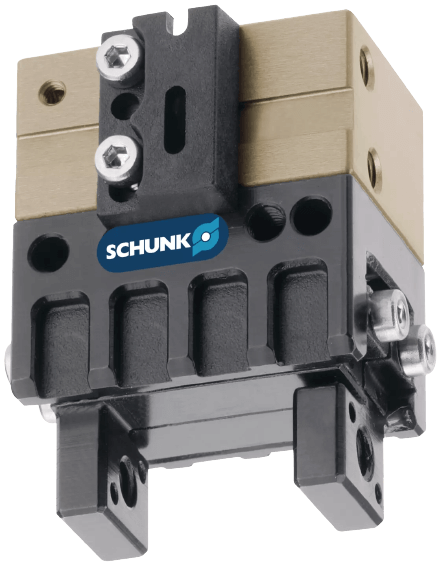

This SCHUNK pneumatic parallel gripper delivers high-precision handling for small workpieces in automated systems.

With 3 mm stroke per jaw and a maximum gripping force of 51 N, the unit is rated for workpieces up to 0.19 kg.

Repeatability of 0.02 mm supports consistent positioning in assembly and electronics handling applications.

The gripper operates in ambient temperatures up to 90°C and uses food-grade lubrication for applications requiring clean operation.

Optional gripping-force maintenance is available to sustain holding force during power interruptions or pressure loss.

The mounting interface accepts fasteners from two sides in four screw directions, simplifying integration into modular automation cells.

At 0.07 kg, the compact form factor suits space-constrained installations.

Typical applications include small component assembly, testing operations, lab automation, and pick-and-place tasks where precision and compactness are required.
