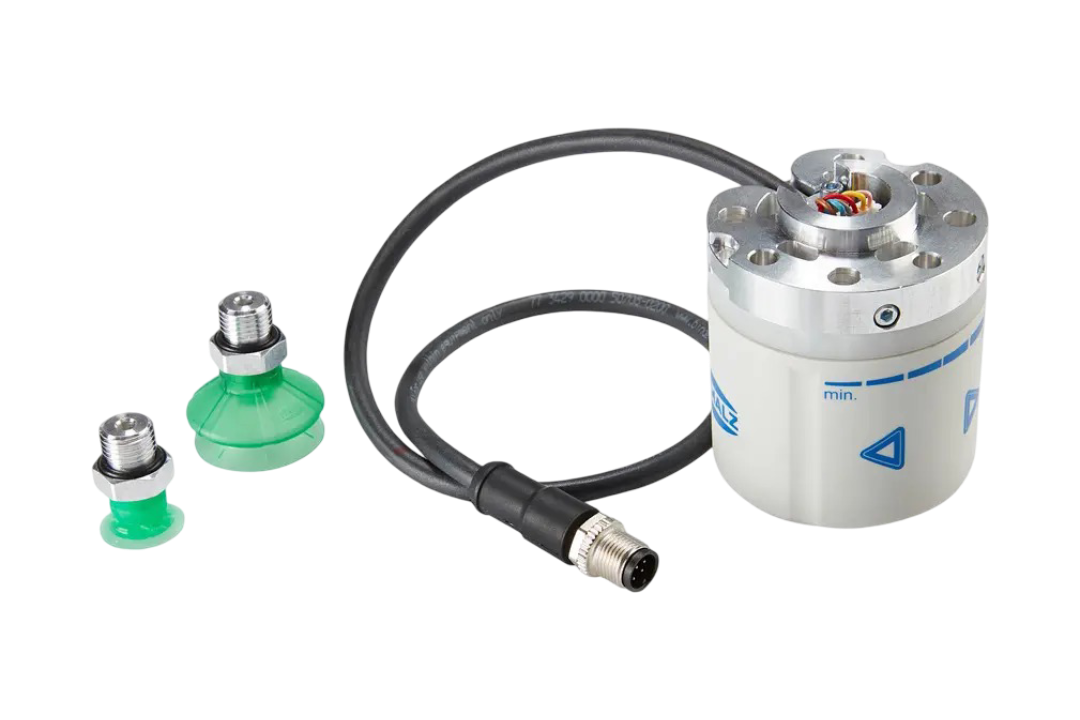

Schmalz CobotPump | electric vacuum pump for cobots

The Schmalz CobotPump (part number 10.03.01.00556) is an electric vacuum generator engineered for collaborative robot end-of-arm tooling.

Weighing 0.225 kg, it generates up to -600 mbar vacuum with a maximum rated flow of 0.096 and handles workpieces up to 3 kg.

Because vacuum generation is fully electric, no compressed air supply or associated pneumatic infrastructure is required at the installation site.

This vacuum pump is optimized for integration with collaborative and lightweight industrial robots from Universal Robots, FANUC, ABB, Dobot, igus, and other manufacturers.

The Plug & Work design approach, supported by optional URCap software, enables straightforward commissioning on compatible platforms.

Typical applications include pick-and-place operations, packaging automation, assembly tasks, and bin-picking where airtight or minimally porous workpieces are handled.
