Schmalz CobotPump | electric vacuum pump for cobots

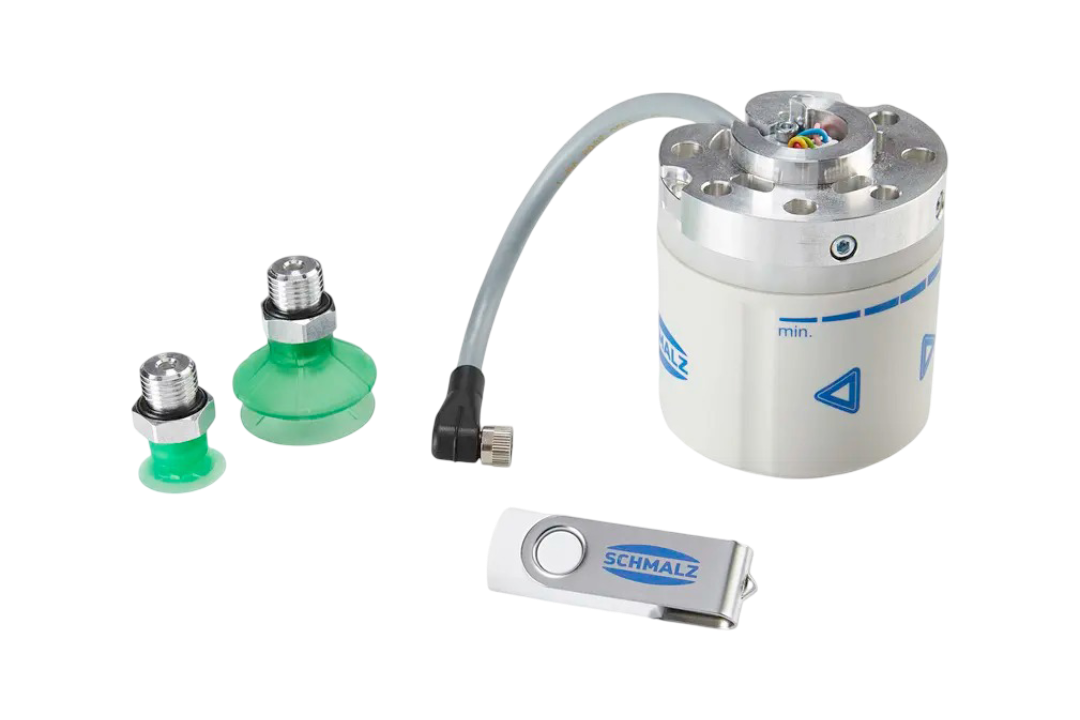

The Schmalz CobotPump (model 10.03.01.00621) is an electric vacuum generator engineered for cobot end-of-arm tooling applications.

Weighing 0.224 kg, it generates up to -0.6 mbar vacuum with a maximum rated flow of 1.6 and handles payloads up to 3 kg.

The unit operates across a 0-40°C temperature range.

The electric vacuum generation design removes the need for compressed air infrastructure, simplifying installation and reducing system complexity.

The CobotPump has been optimized for integration with Universal Robots, FANUC, ABB, Dobot, igus, and other cobot platforms.

Optional URCap software supports streamlined commissioning through a Plug & Work approach.

This vacuum generator suits pick-and-place, packaging, assembly, and bin-picking tasks, particularly with airtight workpieces within the 3 kg payload limit.
