Will the Air Vise Self-Centering Vise 4in Pneumatic fit my Haas rotary table?

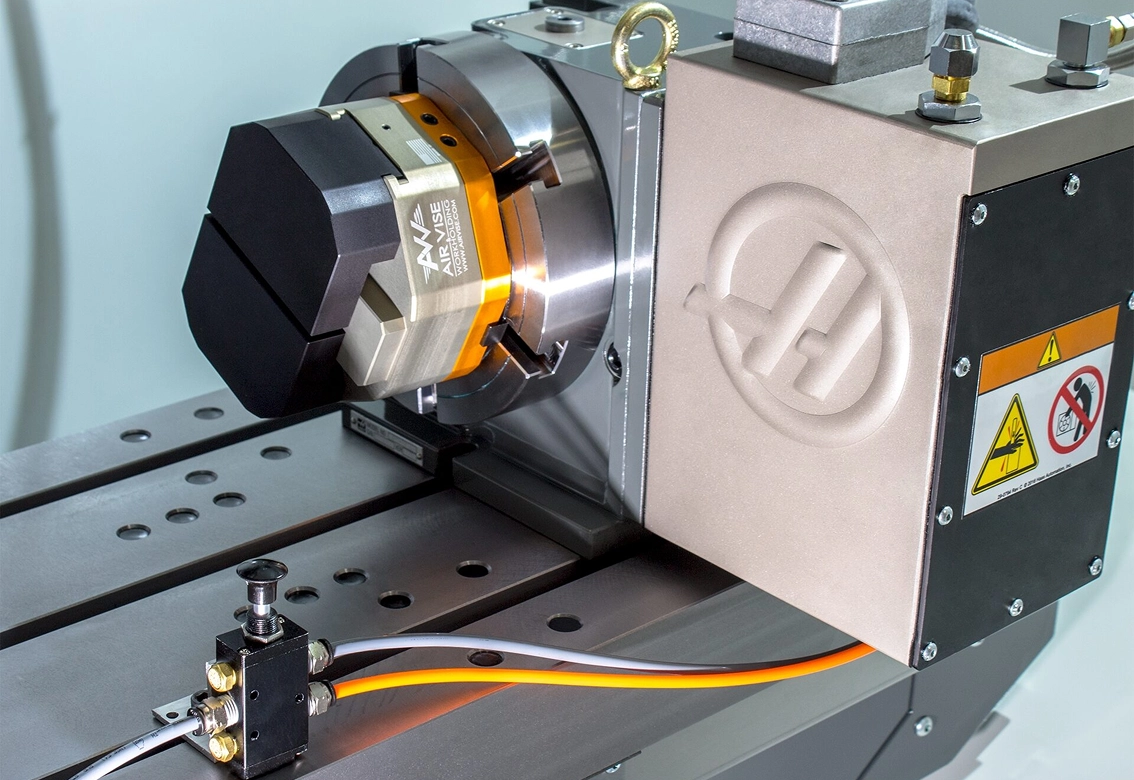

The Air Vise Self-Centering Vise 4in Pneumatic integrates directly with Haas HRT160 and HRT210 rotary tables without adapters, using precision-machined keyways that fit standard rotary mounts. No fixturing modifications are needed for installation.

What is the jaw width on the Air Vise Self-Centering Vise 4in Pneumatic?

The jaw width is 4 inches, with a throat depth of 15/16 inch and a 6-inch square footprint that supports low-profile chip evacuation in tight machine setups.

Does this vise reduce setup time compared to a standard vise?

Self-centering jaw movement automatically aligns each workpiece, reducing setup time, and the T-Hook mechanism enables rapid jaw disengagement for fast changeovers between jobs. One-touch pneumatic open/close cycles keep clamp timing consistent across production runs.

What material is the Air Vise Self-Centering Vise made from?

The vise is constructed from 7075 T-6 hard anodized aluminum, which resists wear and corrosion in high-volume production environments. The vise is made in the United States.

Can I adjust the clamping force for different workpiece sizes?

Adjustable clamping force allows repeatable holding of both outside diameter and inside diameter workpieces. Soft jaws are included to support custom workpiece geometry and secure fit.

What do I need to do to set up the Air Vise pneumatic vise?

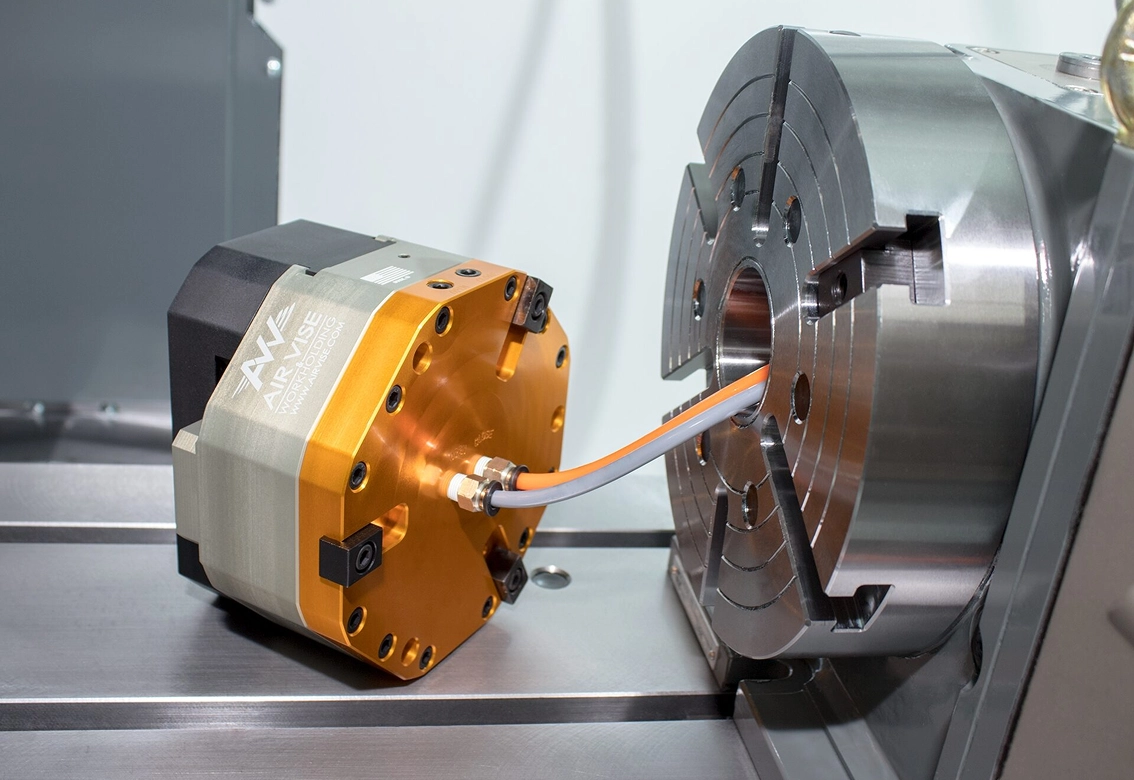

Mount the vise directly to your Haas HRT160 or HRT210 rotary platter using the machined keyways, connect your air supply to the pneumatic fittings, install the included soft jaws to match your workpiece, and use the T-Hook for rapid jaw disengagement during changeovers.

Air Vise Self-Centering Vise 4in Pneumatic

Not sure it fits your cell? Book 20 minutes with an engineer who has specified this part before.

Book a call

Ordered the wrong size or interface? Here is exactly how sending it back works.

In Stock3-Finger Grip

Air Vise Self-Centering Vise 4in Pneumatic

Name: Air Vise Self-Centering Vise 4in Pneumatic
Brand: Air Vise & Workholding
SKU: 2000
Price: 1795 USD
Availability: InStock

Air Vise & Workholding

$1,795.00

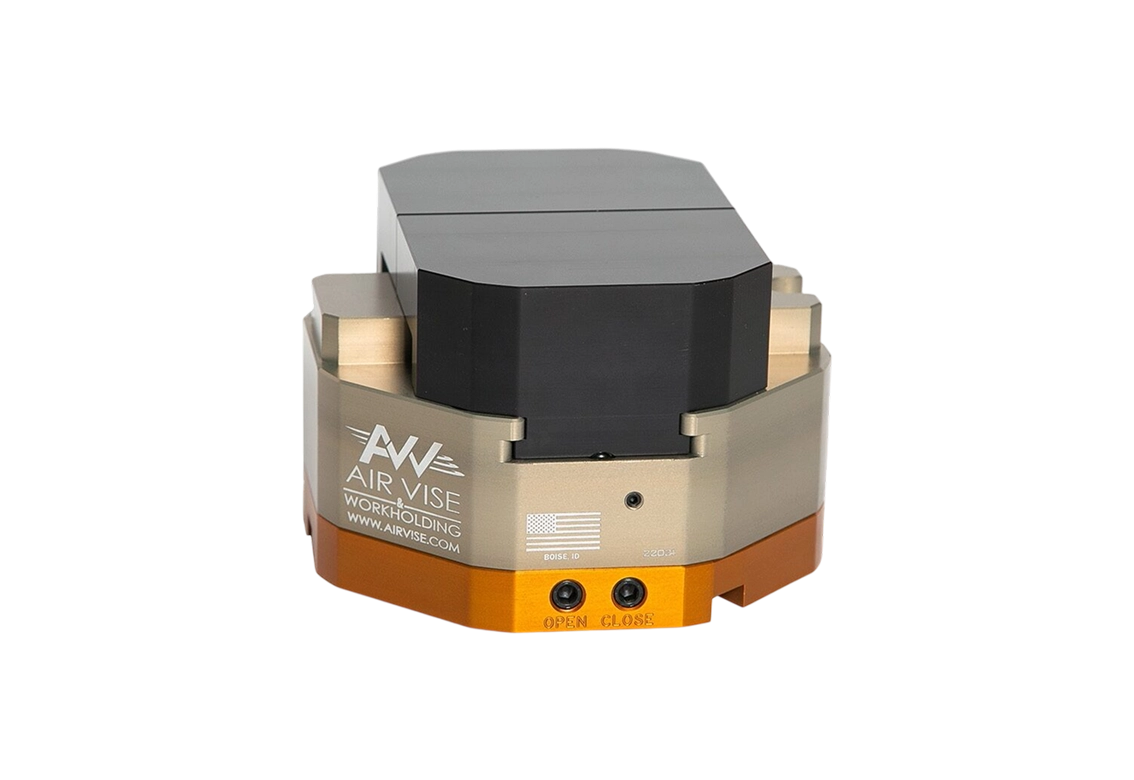

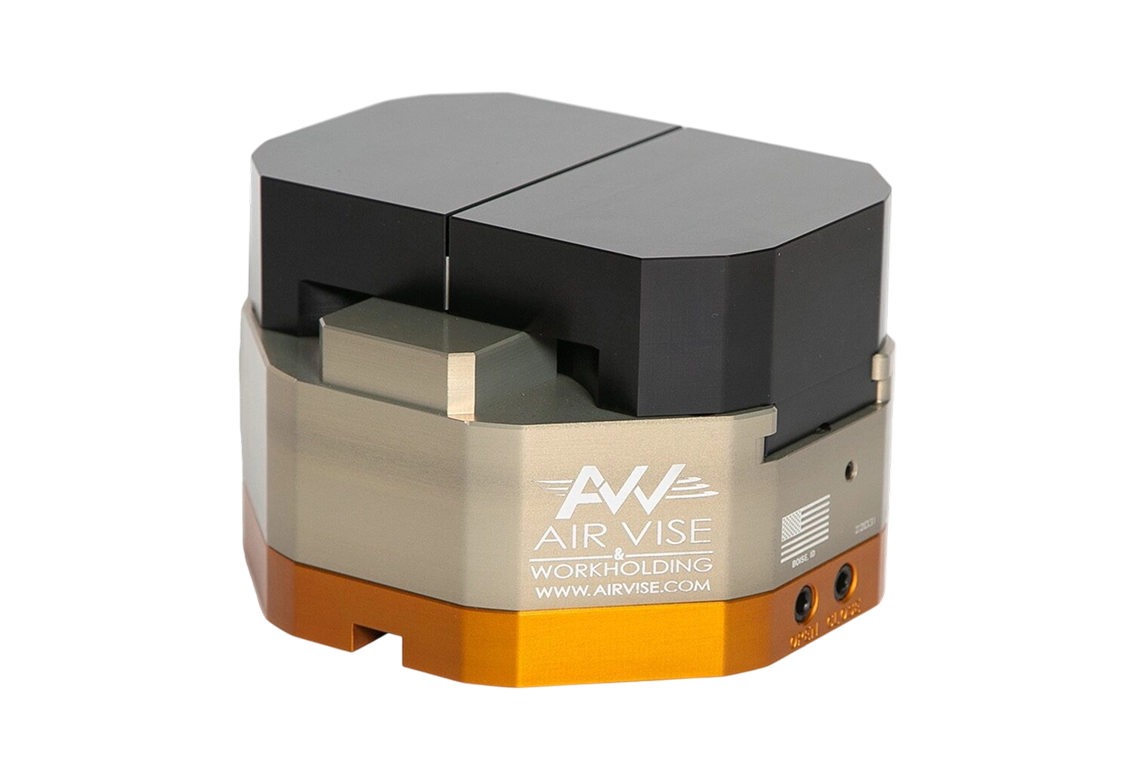

Pneumatic self-centering rotary vise with 4-inch jaw width for Haas HRT160 and HRT210 4th axis. Features 7075 T-6 aluminum construction, T-Hook rapid jaw release, adjustable clamping force for OD and ID work, and low-profile design for chip evacuation. Includes soft jaws, fixture keys, and pneumatic fittings.

The Air Vise Self-Centering Vise 4in Pneumatic is a pneumatic rotary vise designed for CNC 4th axis workholding, featuring direct compatibility with Haas HRT160 rotary tables and ideal for precision automation setups.

Features:

Pneumatic actuation for consistent, repeatable clamping cycles
Self-centering jaw movement ensures optimal alignment of each workpiece
Integrated T-Hook mechanism enables rapid disengagement for fast changeovers
Low-profile design improves chip evacuation and supports robotic or M-code command integration

Specifications:

Jaw width: 4-inch (101.6 mm)
Throat depth: 15/16-inch (23.8 mm)
Footprint: 6-inch (152.4 mm) square
Material: 7075 T-6 hard anodized aluminum

Compatibility:

Keyways are precision-machined for direct fit to Haas HRT160 and HRT210 rotary platters, making the Air Vise Self-Centering Vise 4in Pneumatic an optimal choice for Haas-compatible CNC automation workholding. Compatible with standard rotary tables, robot integration, and fourth axis machine setups in varied CNC environments. Fits both Haas and other industry-standard rotary mounts without fixturing adaptation.

Included:

Soft jaws for custom workpiece geometry
Fixture keys and jaw shims
Pneumatic fittings
Workholding hardware

STEP file available for download to support CAD planning and fixture design.

Application Scenarios:

Palletizing and automated pick-and-place operations with CNC rotary tables
Precision machine tending in high-volume production
Complex workholding for multi-axis CNC milling

Comparison to Alternative Workholding:

Unlike manual vises, pneumatic rotary vises offer faster cycle times and improved repeatability for robotic applications
Self-centering function reduces setup time compared to standard fixed-jaw vises
Direct fit to Haas HRT160 and HRT210 negates the need for custom adapters or fixturing

Maintenance Tips:

Keep pneumatic fittings clear of debris for reliable operation
Regularly inspect jaw shims and fixture keys for wear
Apply manufacturer-recommended lubricant to moving parts

How to Set Up:

Mount directly to Haas HRT160 or HRT210 rotary platters using machined keyways
Connect air supply to pneumatic fittings
Install included soft jaws to match workpiece geometry
Use T-Hook for rapid jaw disengagement during job changeovers

Internal Links:

Call to Action: Download STEP file | Request quote | Add to cart

Schema Markup Recommendation:

Product schema should include: manufacturer (Air Vise & Workholding), price, availability, customer rating, category (CNC Automation, Workholding)

Made in the United States.

Weight5 kg

Footprint6.000 in x 6.000 in

Footprint6 inches square

Jaw Width: 4.000 in
Throat Depth: 15/16 in
Material: 7075 T-6 Hard Anodized Aluminum
Keyways fit Haas HRT160 and HRT210 rotary platters: Yes
Includes workholding hardware, fixture keys, jaw shim and fittings: Yes
STEP file available for download: Yes
Mounting Interface: Haas HRT160, Haas HRT210
Clamping Force: Adjustable
Soft Jaws: Included
Design: Low-profile
Integration: Robotic command controls, M-code programming
Construction: 7075 T-6 hard anodized aluminum
Workholding Hardware: Included
CAD File: STEP file available

Centers workpieces automatically, reducing setup time
T-Hook mechanism enables rapid jaw disengagement for fast changeovers
One-touch pneumatic open/close cycles consistently
7075 T-6 hard anodized aluminum resists wear and corrosion
Soft jaws included for custom workpiece geometry
Adjustable clamping force for repeatable O/D and I/D holding
Integrates directly with Haas HRT160, HRT210 rotary tables without adapters
Low-profile 6-inch square footprint improves chip evacuation
Precision keyways fit standard rotary mounts, no fixturing modifications needed
Pneumatic actuation delivers fast, consistent clamping cycles for automation
Made in the U.S.A.

: The Air Vise Self-Centering Vise 4in Pneumatic integrates directly with Haas HRT160 and HRT210 rotary tables without adapters, using precision-machined keyways that fit standard rotary mounts. No fixturing modifications are needed for installation.
: The jaw width is 4 inches, with a throat depth of 15/16 inch and a 6-inch square footprint that supports low-profile chip evacuation in tight machine setups.
: Self-centering jaw movement automatically aligns each workpiece, reducing setup time, and the T-Hook mechanism enables rapid jaw disengagement for fast changeovers between jobs. One-touch pneumatic open/close cycles keep clamp timing consistent across production runs.
: The vise is constructed from 7075 T-6 hard anodized aluminum, which resists wear and corrosion in high-volume production environments. The vise is made in the United States.
: Adjustable clamping force allows repeatable holding of both outside diameter and inside diameter workpieces. Soft jaws are included to support custom workpiece geometry and secure fit.
: Mount the vise directly to your Haas HRT160 or HRT210 rotary platter using the machined keyways, connect your air supply to the pneumatic fittings, install the included soft jaws to match your workpiece, and use the T-Hook for rapid jaw disengagement during changeovers.

Pneumatic rotary vise vs. manual vise or fixed-jaw workholding:

The Air Vise Self-Centering Vise 4in Pneumatic is a pneumatic rotary vise designed for fast, repeatable 4th axis clamping on Haas CNC machines. It differs from manual vises and standard fixed-jaw setups in speed, repeatability, and ease of integration.

For high-volume production runs with frequent job changeovers, the T-Hook mechanism and one-touch pneumatic cycles reduce setup time compared to manual tightening and disassembly.
When parts require consistent centering across multiple shifts, self-centering jaws eliminate manual alignment drift and improve repeatability without operator adjustment.
On Haas HRT160 and HRT210 rotary tables, direct keyway compatibility eliminates custom adapter fabrication and fixturing modification, saving setup labor.
For delicate or non-standard workpiece geometries, included soft jaws and adjustable clamping force allow custom holding without dedicated fixtures.
In tight 4th axis cells where chip clearance matters, the low-profile 6-inch square footprint improves evacuation compared to larger or taller manual workholding.
