Room gantry RG-0012 | 3 DOF | 800x800x500mm | 5kg

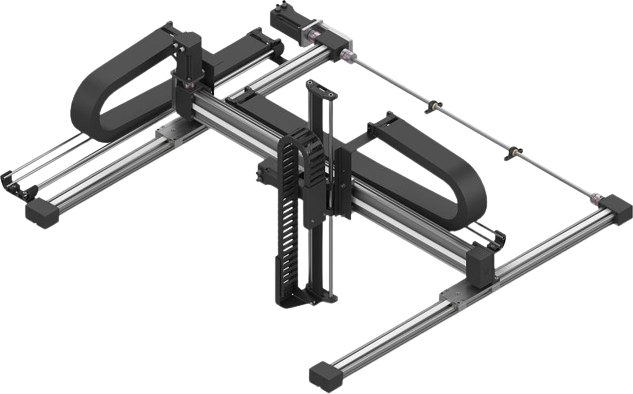

The igus drylin room gantry RG-0012 is a three-degree-of-freedom Cartesian robot designed for automated positioning and handling within an 800x800x500mm working space.

This unit offers 0.5mm repeatability and supports payloads up to 5kg, operating at speeds up to 0.5m/s.

Weighing 14.6kg, the gantry is suited for pick and place operations, lab automation, packaging, and assembly tasks where consistent positioning accuracy is required.

The igus Robot Control system is available in both cabinet and DIN rail configurations to accommodate different installation requirements.

This model is part of the drylin room gantry series, which is also available in working envelopes up to 3000x3000x750mm for larger applications.

The system provides a low-maintenance automation solution appropriate for small to medium enterprises, research laboratories, and production environments.
