QKM | Double Tobot FlexSorter Station

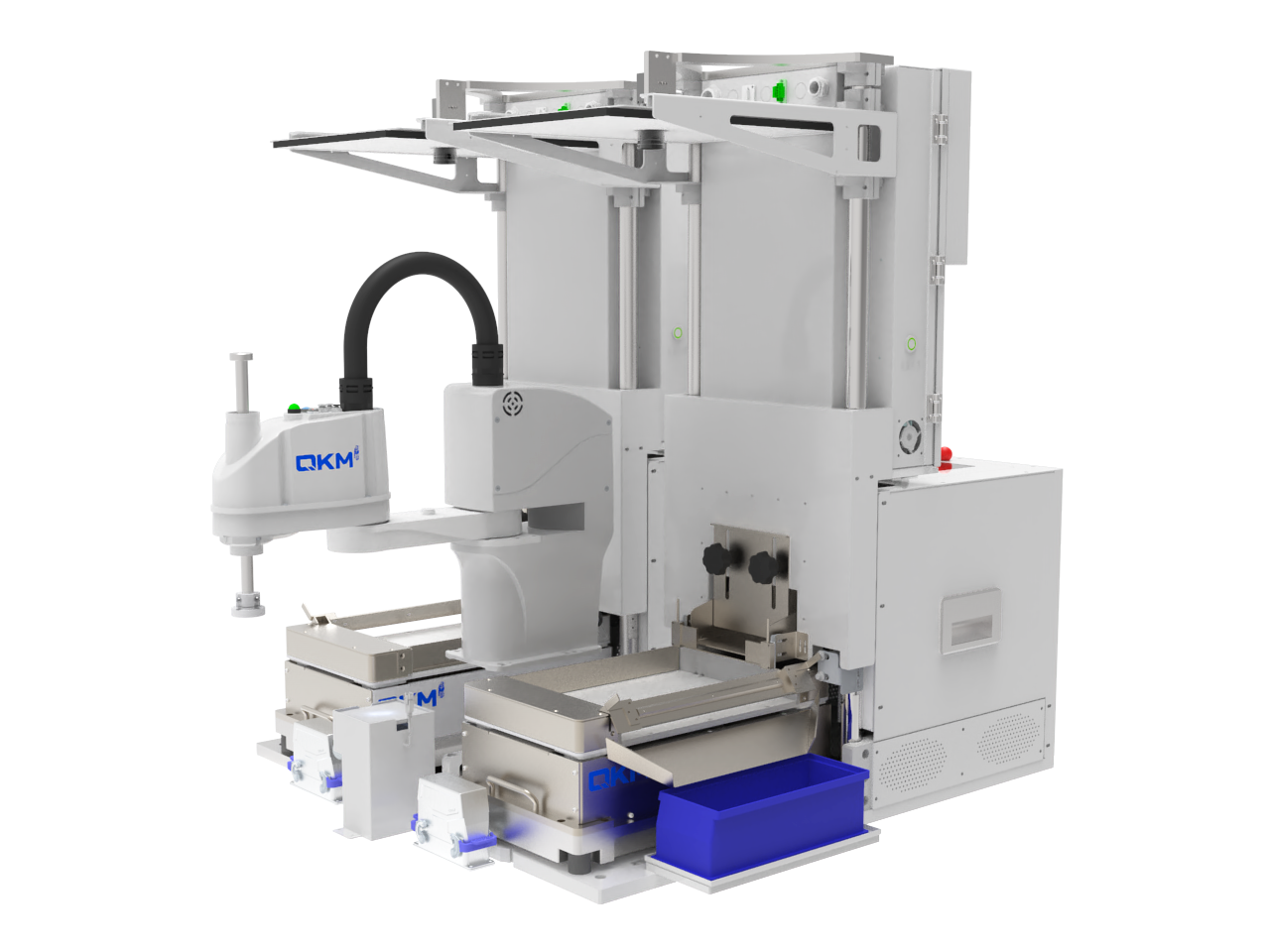

The QKM Double Tobot FlexSorter Station is a dual-unit material handling system designed for automated sorting, pick and place, and assembly operations.

This parallel-processing configuration handles parts ranging from 2 to 120 mm, accommodates vibration loads up to 1.5 kg, and works with bin volumes between 8 and 15 liters.

The system achieves positioning precision of ±0.07 mm with cycle times from 1.9 to 3 seconds, while reducing floor space requirements by up to 41 percent compared to conventional layouts.

The station is controlled through dedicated FlexSorter software accessed via a 13.3-inch touchscreen interface.

Standard interfaces include AC/DC power input, emergency stop, and Ethernet connectivity.

The system supports integration with top and bottom vision cameras and is compatible with multiple robot models, allowing configuration flexibility based on application requirements.

This sorting station suits operations in electronics manufacturing, medical technology production, automotive component handling, and toy assembly.

The dual-station design is particularly effective for small-batch production environments and workflows involving multiple product types, where the silicon wafer, thin sheet, or irregularly shaped component handling can occur simultaneously across both units.
