QKM | Double Tobot FlexSorter Station

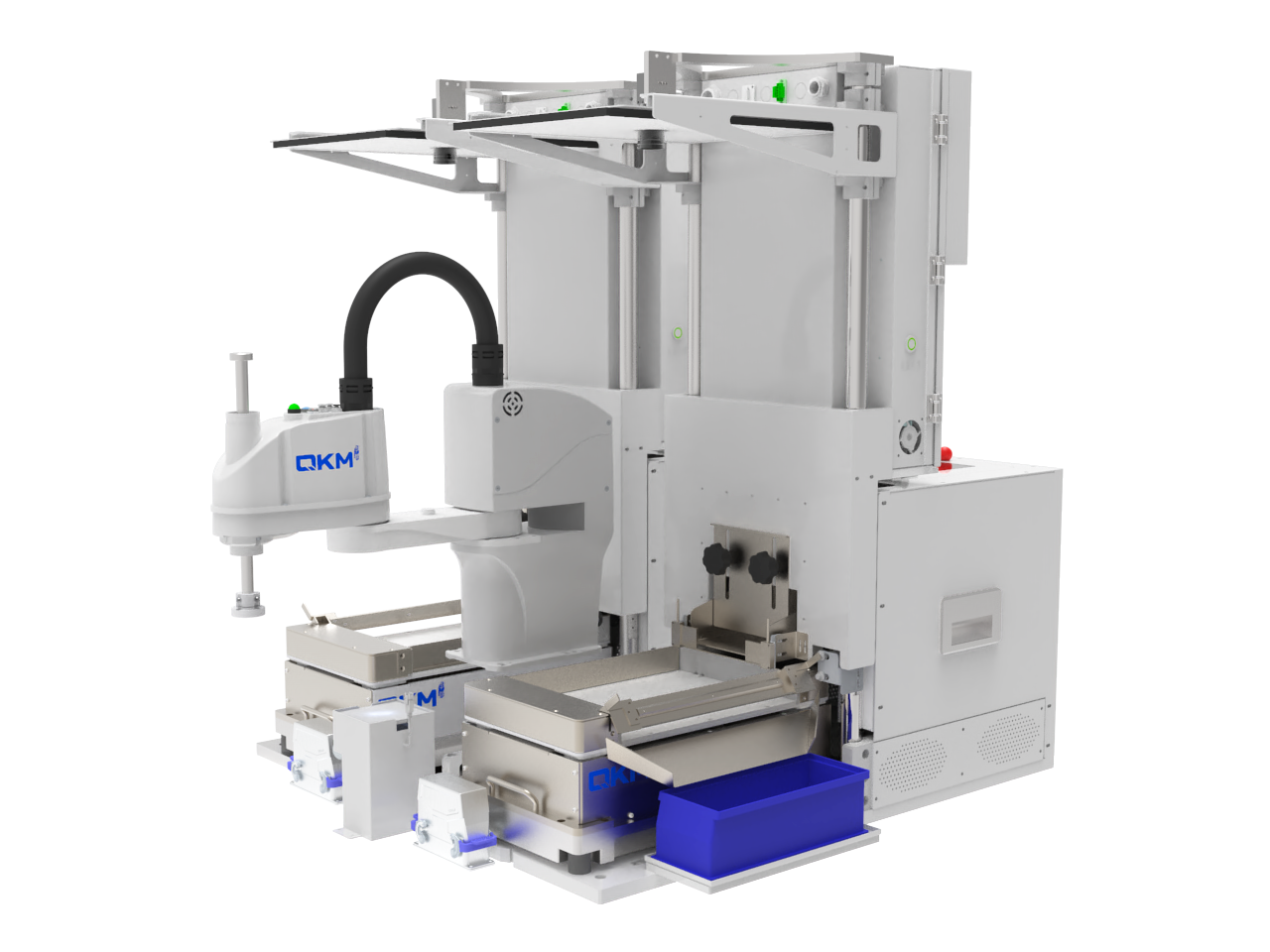

The QKM Double Tobot FlexSorter Station (QFSM-0002K-3224) is a dual-robot sorting system engineered for automated handling of diverse component geometries, including silicon wafers, thin sheets, and irregularly shaped parts.

The system accommodates part sizes ranging from 2 to 120 mm, supports vibration feeder loads up to 1.5 kg, and works with bin volumes between 8 and 15 liters.

Positioning precision is rated at ±0.07 mm, with cycle times between 1.9 and 3 seconds.

The dual-station configuration reduces floor space requirements by up to 41 percent compared to separate single-unit installations.

Operators control the system through FlexSorter software on an integrated 13.3-inch touchscreen interface.

Standard I/O includes AC and DC power connections, emergency stop integration, and Ethernet networking.

The station supports both top-mounted and bottom-mounted vision camera systems and is compatible with multiple robot models from the Tobot line.

Target applications include pick and place operations, sorting tasks, and assembly processes in electronics manufacturing, medical technology production, automotive component handling, and toy industry operations.

The system is particularly suited to small-batch production environments and workflows requiring frequent product changeovers.
