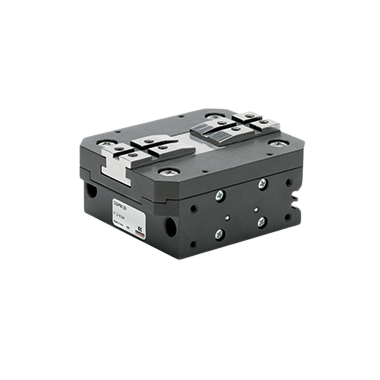

The Camozzi CGPM series is a pneumatic parallel gripper with an H-guide mechanism that delivers self-centering gripping action.
This model (part number 15-CGPM-0019) provides a maximum gripping force of 638 N with repeatability of 0.02 mm, weighing 0.658 kg.
The gripper operates in ambient temperatures up to 60°C.
The H-guide configuration and compact form factor make this gripper well-suited for pick and place operations commonly encountered in assembly automation.
The CGPM series is available in five sizes with options for standard or long stroke lengths, allowing selection based on specific part geometry and handling requirements.
