Parallel gripper CGS2-40 Series - | Pneumatic

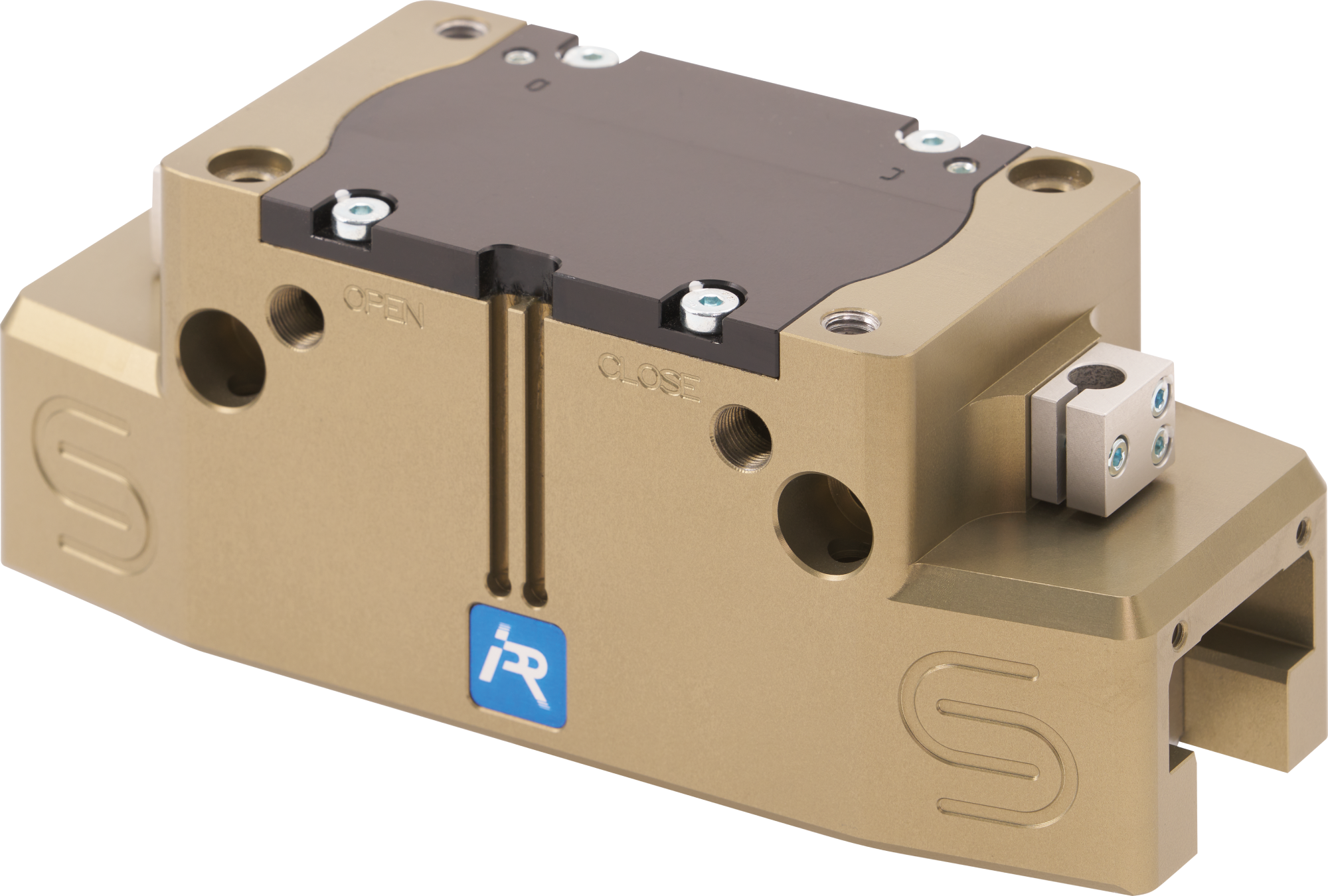

The IPR CGS2-40 Series is a two-jaw pneumatic parallel gripper designed for high-precision industrial automation applications.

Weighing 0.09 kg, this compact gripper delivers a maximum gripping force of 128 N with a stroke of 2.5 mm per jaw and repeatability of 0.01 mm, making it well-suited for applications requiring tight tolerances and consistent performance.

Operating at 3–8 bar, the gripper achieves opening and closing times of 0.015 seconds, supporting rapid cycle operations.

The unit is rated for a recommended workpiece weight of 0.64 kg and can operate in ambient temperatures up to 80°C, accommodating a range of production environments.

This gripper is appropriate for small-parts handling, precision assembly operations, test systems, and dynamic pick-and-place processes where compact size, low mass, and fast actuation are required.
