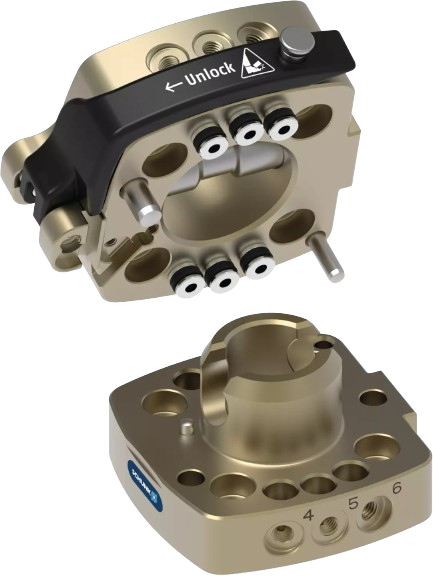

Manual change system CMS 050

The SCHUNK CMS 050 is a manually operated tool change system designed for both robot-mounted and stationary industrial applications.

With a maximum payload capacity of 11 kg and a lightweight 0.27 kg frame, this changer provides a practical solution for flexible production environments requiring frequent tool swaps without automatic actuation.

The system supports up to 6 fluid feed-throughs for routing pneumatic or hydraulic lines through the interface.

It is rated for a maximum axial force (Fz) of 900 N.

The CMS 050 is well-suited for assembly operations and manufacturing cells producing high-mix products where manual tool changes are preferred or where the cost and complexity of automatic changers is not justified.

Piston stroke monitoring is available as an optional feature.

Part numbers 1545289 and 1545310 are available.
