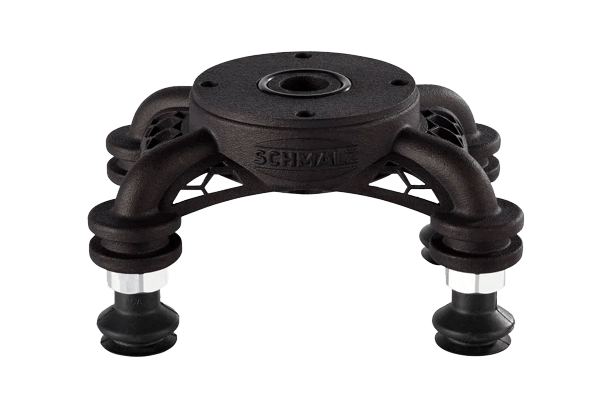

Lightweight gripping system SLG ECBPMi FSGA 3

The SLG ECBPMi FSGA 3 is a lightweight vacuum gripping plate from Schmalz that increases payload capacity by adding suction points to CobotPump ECBPMi installations.

This 102x75.3 mm plate weighs 0.074 kg and provides a payload rating of 1.88 kg.

The system allows integrators to scale holding force by distributing vacuum across multiple suction cups rather than relying on a single point of contact.

Installation uses M4 screws, which ship with the unit.

Schmalz produces this lightweight gripper series in three footprints: 102x102 mm, 102x75.3 mm, and 78.6x78.6 mm, enabling selection based on workpiece geometry and available mounting area.
