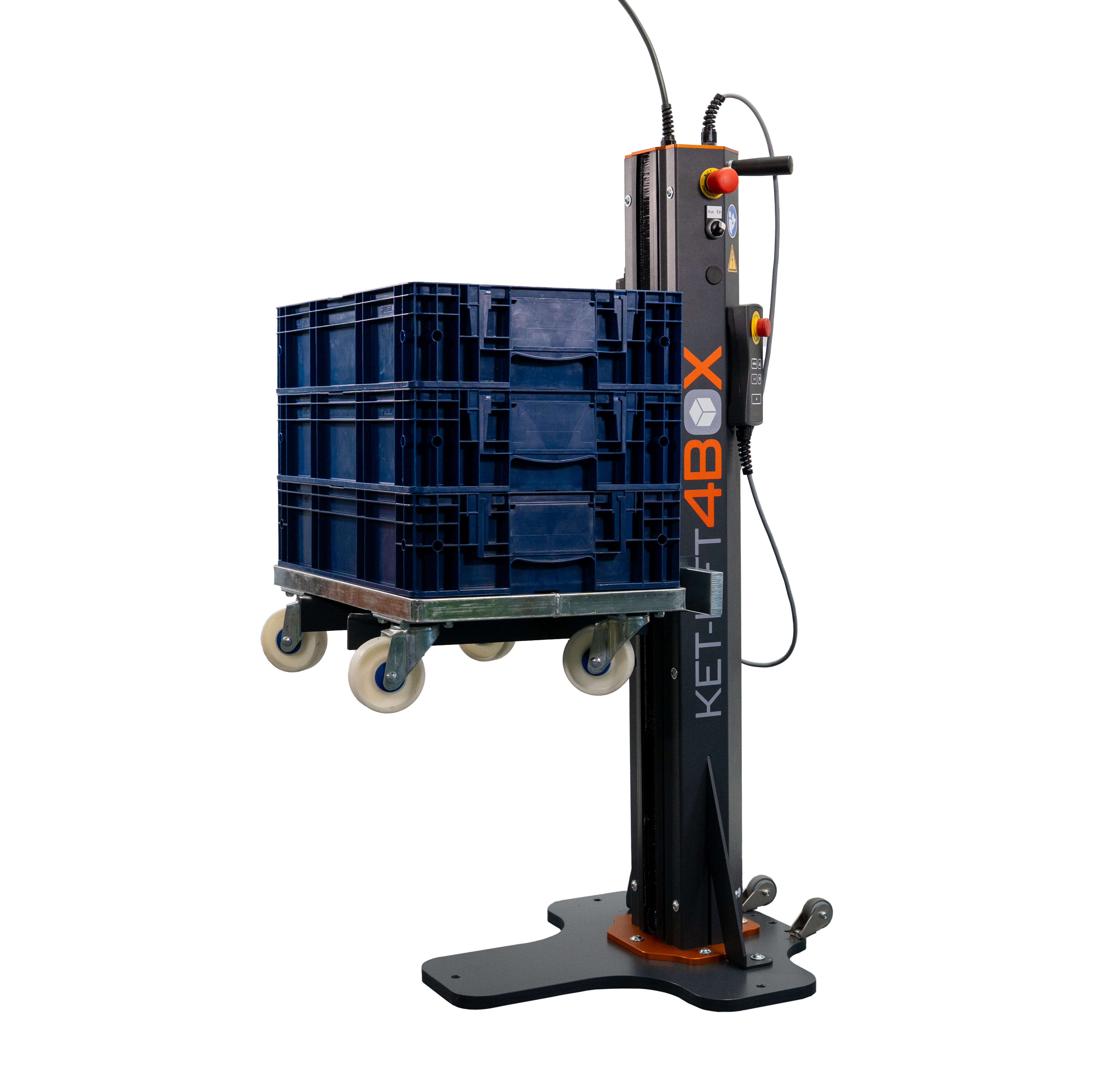

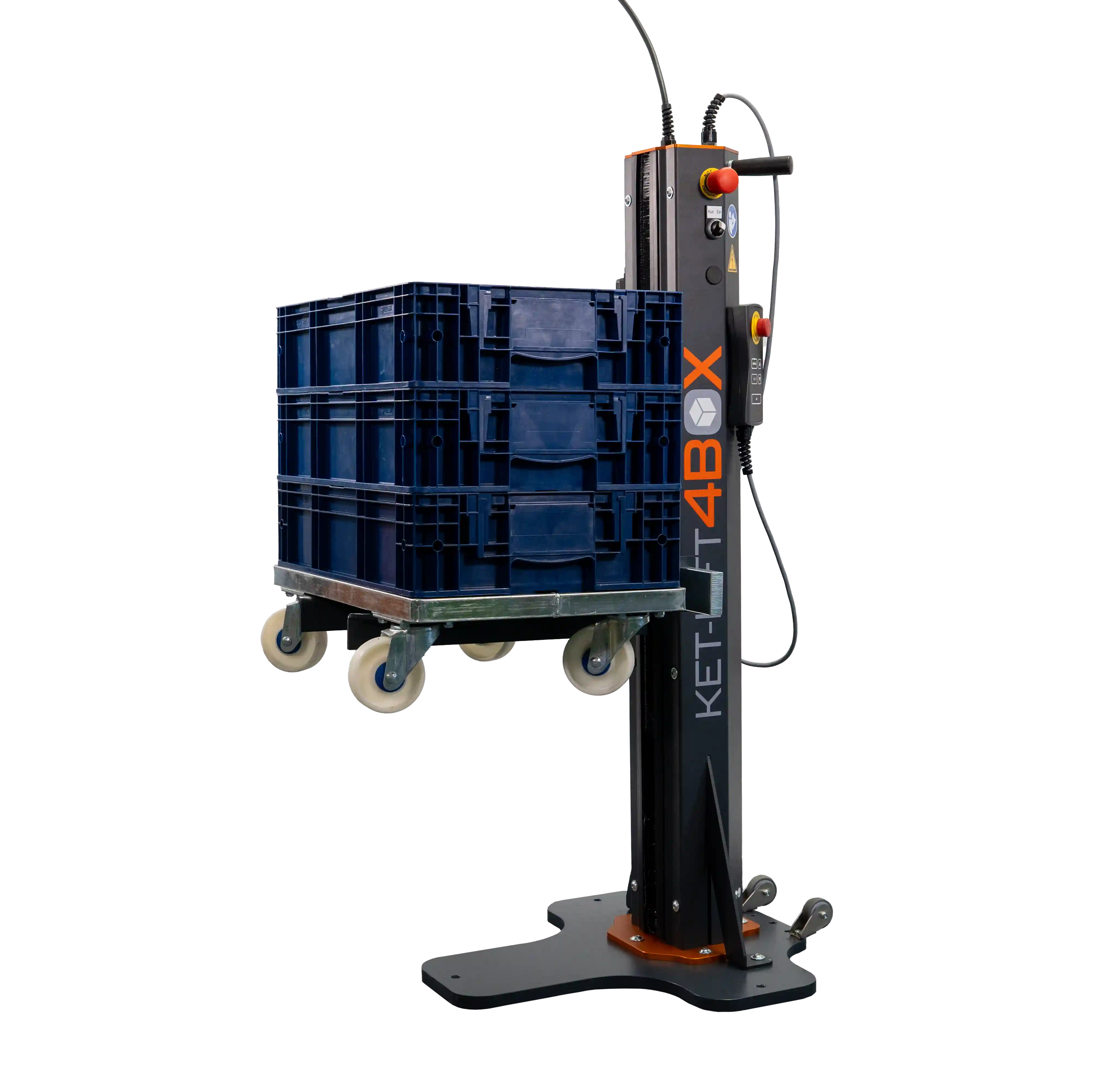

Ketterer KetLift4Box Ergonomic Lifting System, 200 kg

KetLift4Box Ergonomic Lifting System Overview:

The Ketterer KetLift4Box is an ergonomic lifting system for production and assembly workstations, engineered to facilitate efficient box lifting and sorting tasks.

Performance and Key Features:

• Payload Capacity: Up to 200 kg
• Unit Weight: 65 kg
• Column Width: 160 mm
• Protection Class: IP00

Manufactured by B.Ketterer Söhne, the KetLift4Box offers a compact footprint within its performance class, streamlining box handling without sacrificing lifting strength. Integrated handles and transport wheels allow the device to be moved between workstations without permanent floor anchoring. Anchoring is optional for static applications, supporting flexibility in layout changes.

Operation Modes and Sensor System:

• Manual operation via handheld control
• Fully automatic mode with dual optical sensors

In automatic mode, the device’s dual optical sensors detect stacked loads regardless of shape or color, and identify whether items are added or removed from the stack. This system optimizes workflow at high-throughput stations and reduces strain from repetitive box handling.

Typical Applications:

• Production workstation box lifting
• Sorting stations requiring ergonomic handling
• Portable material lift scenarios in manufacturing environments

The IP00 protection class suits the KetLift4Box for controlled indoor environments where dust and moisture ingress is not a concern. The device is ideal for areas where frequent repositioning and adaptability are preferred.

Competitive Position:

The KetLift4Box distinguishes itself among box lifting devices and portable material lifts by combining 200 kg payload capacity with a 160 mm column width and 65 kg overall weight, delivering compactness and ergonomic benefits for workstation users.
