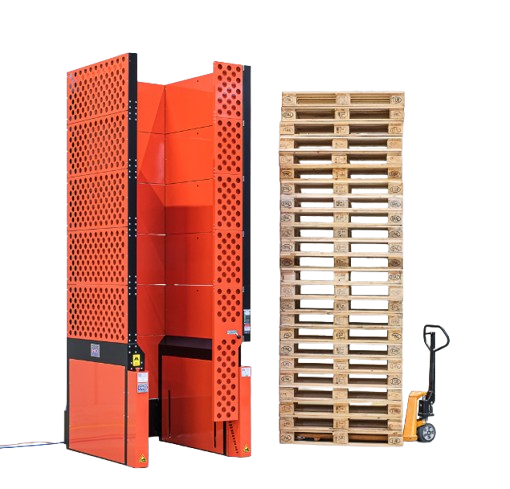

The Hagenauer-Denk automatic pallet magazine is a material handling system designed to store and dispense up to 24 pallets with standard dimensions up to 1200x800x150 mm.
The unit supports payloads to 1,000 kg and weighs 630 kg.
Loading is accomplished using a forklift or manual pallet truck.
The system operates in two modes.
In destacking mode, the bottom pallet remains accessible for removal at floor level.
In stacking mode, empty pallets are automatically stacked as they are returned.
This dual-mode operation removes the need for manual pallet lifting during retrieval or storage cycles.
This magazine is suited for manufacturing environments where pallet-based material flow is frequent and where reducing manual handling is a priority.
The space-saving vertical stacking configuration consolidates pallet storage while maintaining organized access to pallets at an ergonomic working height.
