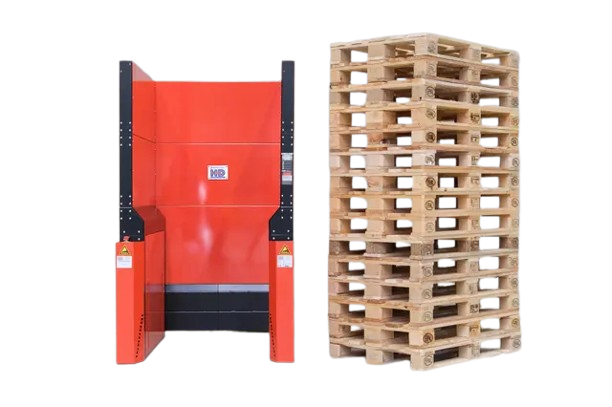

This automatic pallet magazine from Hagenauer-Denk handles the storage and dispensing of up to 24 pallets measuring up to 1200x800x150 mm in length, width, and height.
The unit supports a payload of 210 kg per pallet and weighs 520 kg.
It operates in two modes: destacking mode positions the bottom pallet for easy removal, while stacking mode accepts and automatically stacks empty pallets.
Loading can be performed using a forklift or manual pallet truck.
The system removes the need for manual lifting of heavy pallets, reducing both the risk of pallet damage and workplace accidents.
By consolidating pallet storage in a vertical configuration, the magazine reduces the warehouse footprint required for pallet staging.
This unit suits machine shops and manufacturing facilities that handle standard Euro pallets or similar dimensions and need to streamline pallet workflows at production cells or staging areas.
