FIPA | Non-rotating internal spring levelers | threaded body

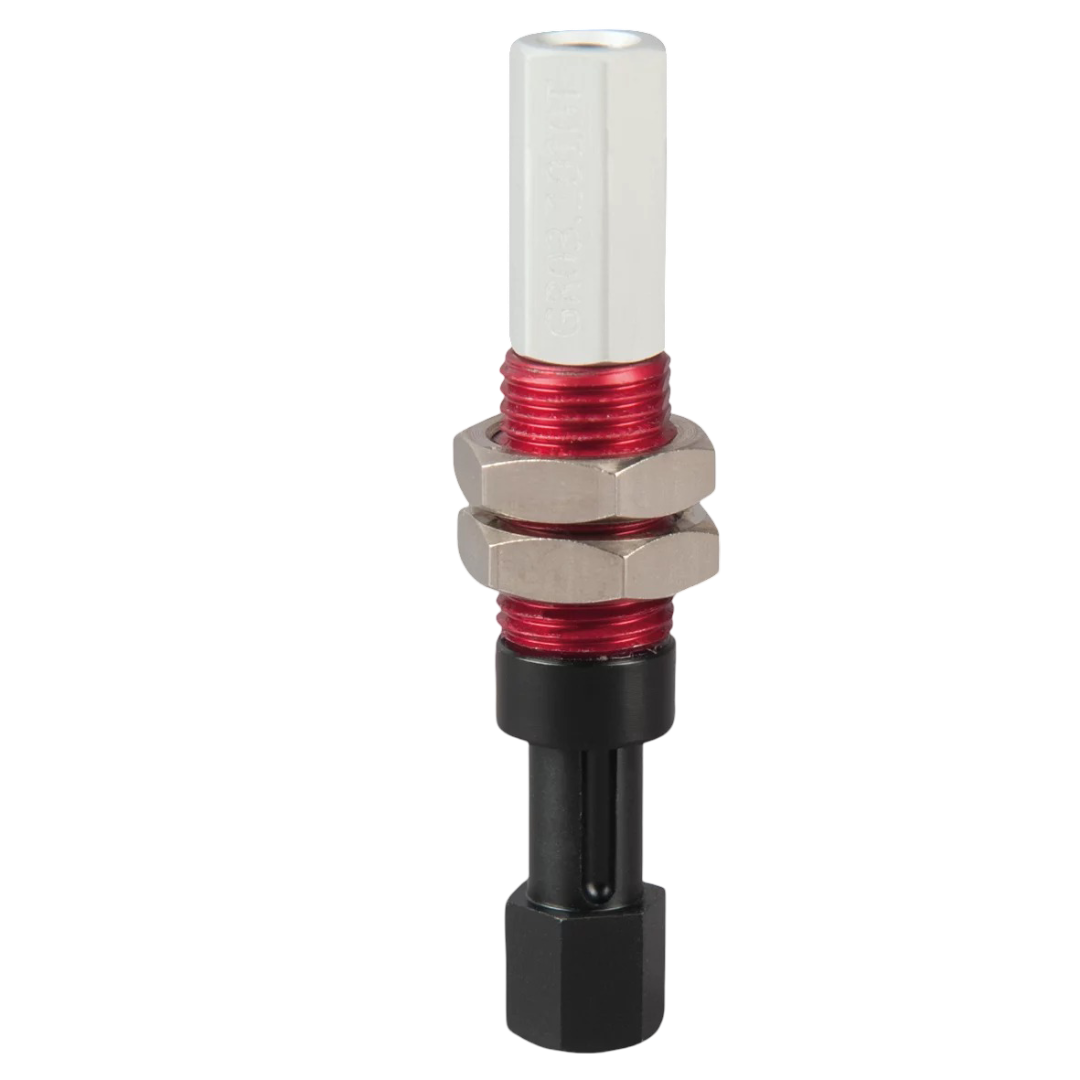

The FIPA GR03.1010T is a pneumatic spring leveler designed to compensate for height variations during automated handling and placement operations.

Its internal spring mechanism and non-rotating design maintain consistent alignment and stable contact with workpieces across uneven or shifting surfaces.

Weighing 0.011 kg, the unit features an anodized aluminum construction and provides 10 mm of stroke per jaw.

The threaded M10x1 body allows straightforward integration into end-of-arm tooling assemblies, while the M5 pneumatic port supports standard actuation and vacuum connections.

Overall length is 56 mm, and the SW 8 wrench size facilitates installation and adjustment.

The ball-guided sliding structure ensures repeatable motion under fast cycle conditions.

This leveler is suited to packaging lines, pick-and-place systems, and other applications requiring precise compensation when handling products with surface irregularities or variable stack heights.
