What is the payload and reach of the FANUC CRX-10iA/L?

The FANUC CRX-10iA/L has a 10 kg payload and 1,418 mm reach, which exceeds comparable cobots like the UR3 for handling heavier loads and reaching farther distances. This combination makes it suitable for complex painting, coating, and assembly tasks in industrial environments.

Can the CRX-10iA/L work in hazardous or explosive atmospheres?

Yes, the PAINT configuration of the CRX-10iA/L is explosion-proof and certified to ISO 13849-1 and ATEX standards for safe operation in hazardous zones with flammable atmospheres. The IP67 enclosure also resists dust and immersion in demanding coating and painting environments.

How is the FANUC CRX-10iA/L programmed and set up?

The robot uses a drag-and-drop Tablet Teach Pendant that cuts programming time and training effort for quick deployment. It also supports ROBOGUIDE software for offline simulation and path optimization before deployment on the production line.

What factory systems can the CRX-10iA/L integrate with?

The CRX-10iA/L integrates with existing factory systems through Ethernet/IP, PROFINET, and Modbus TCP connectivity. It is also compatible with FANUC iRVision, force sensors, and ROBOGUIDE for vision-guided and optimized operations.

How easy is it to mount and deploy the FANUC CRX-10iA/L?

Mounting is straightforward thanks to the compact 40 kg frame and lightweight design, which enables quick deployment to production lines. The ±0.04 mm repeatability ensures precise movements right after installation.

Not sure it fits your cell? Book 20 minutes with an engineer who has specified this part before.

Book a call

Ordered the wrong size or interface? Here is exactly how sending it back works.

In StockExplosion Proof

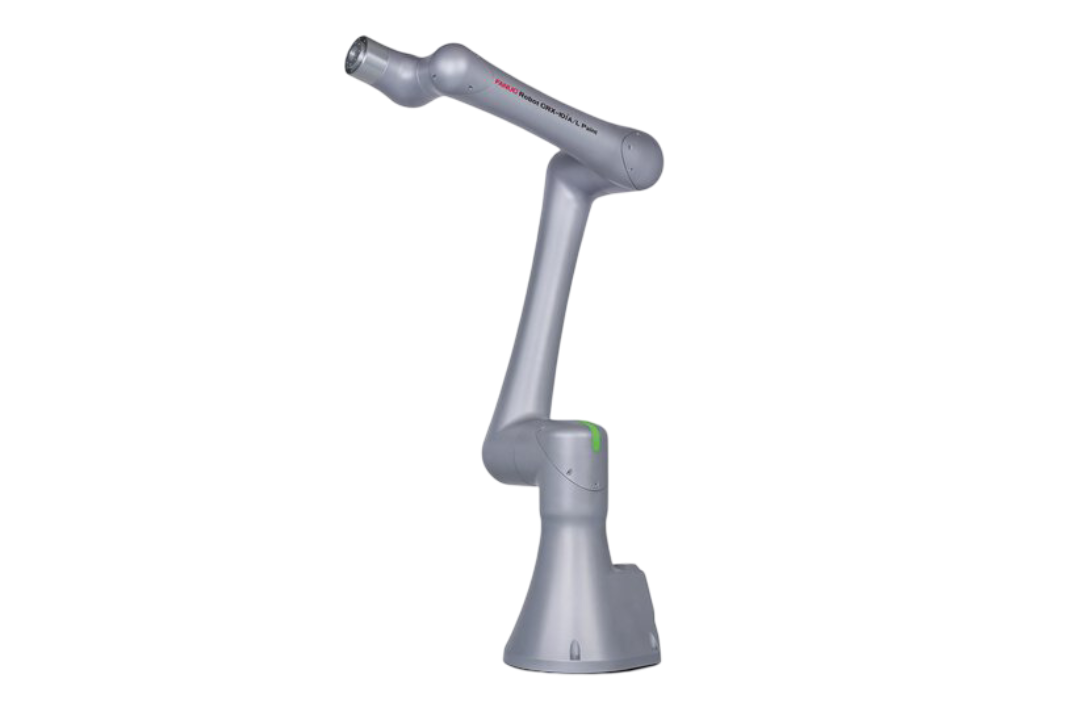

FANUC CRX-10iA/L Collaborative Robot, 10 kg, 1418 mm

Name: FANUC CRX-10iA/L Collaborative Robot, 10 kg, 1418 mm
Brand: FANUC
SKU: 3595
Price: 123500 USD
Availability: InStock

FANUC

$123,500.00

Six-axis collaborative robot with 10 kg payload, 1,418 mm reach, and 0.04 mm repeatability. IP67-rated for painting, coating, and machine tending with explosion-proof PAINT configuration, drag-and-drop programming, and factory network connectivity (EtherNet/IP, PROFINET, Modbus TCP).

FANUC CRX-10iA/L Collaborative Robot for Painting and Hazardous Environments:

The FANUC CRX-10iA/L is a six-axis collaborative robot designed for industrial painting, coating, and explosion-proof operations in manufacturing, automotive, and electronics sectors.

Payload: 10 kg
Reach: 1,418 mm
Weight: 40 kg
Protection: IP67 enclosure, PAINT (explosion-proof) configuration

Manufactured by FANUC, the CRX-10iA/L cobot integrates seamlessly with existing production lines and supports common factory protocols such as Ethernet/IP, PROFINET, and Modbus TCP. The model’s Tablet Teach Pendant enables drag-and-drop programming, reducing setup times and operator training requirements.

For vision-guided applications, the robot is compatible with FANUC iRVision and force sensors, enhancing adaptability and precision in tasks including painting, coating, packaging, pick-and-place, machine tending, and assembly. ROBOGUIDE software allows for offline simulation and path optimization, improving operational efficiency. Mounting is simple thanks to its compact 40 kg form factor.

Explosion-Proof and PAINT Configuration:

Certified for use in hazardous environments, the PAINT variant features explosion-proof safety and is compliant with ISO 13849-1, CE marking, and ATEX standards, making it suitable for workplaces with flammable atmospheres. The IP67 rating ensures resistance to dust and immersion, extending reliability in demanding conditions.

Unique Advantages over ABB IRB 1200 and Universal Robots UR3:

Explosion-proof PAINT configuration for safe operation in hazardous coating and painting zones.
Higher payload (10 kg) and greater reach (1,418 mm) compared to Universal Robots UR3’s 3 kg payload and ABB IRB 1200’s shorter reach.
Advanced FANUC network integration, vision, and simulation tools supported by ROBOGUIDE for fast deployment.

Internal Links:

Frequently Asked Questions:

What applications suit the FANUC CRX-10iA/L collaborative robot? Painting, coating, machine tending, pick-and-place, packaging, and assembly in hazardous environments.
What compliance standards does the CRX-10iA/L meet? ISO 13849-1, CE, ATEX. IP67 protection against dust and immersion.
Is the CRX-10iA/L suitable for explosion-proof painting zones? Yes, the PAINT configuration is engineered specifically for explosion-proof and hazardous coating tasks.

ROI and Availability:

FANUC CRX-10iA/L delivers fast deployment with simplified programming and robust safety features. Contact sales for real-time pricing and availability.

Weight40 kg

Max. Payload10 kg

Max. Reach: 1 / 418 mm
DOF: 6
Repeatability: 0.04 mm
Max. Speed: 2
Protection Class: 67
Model: FANUC CRX-10iA/L
Payload: 10 kg
Reach: 1418 mm
Mounting: Straightforward
Programming: Tablet Teach Pendant with drag-and-drop
Networking: Ethernet/IP, PROFINET, Modbus TCP
Vision: FANUC iRVision
Sensors: Force sensors for adaptive processes
Simulation: ROBOGUIDE software
IP Rating: IP67
Configuration: PAINT (for hazardous environments)
Applications: Painting, coating, machine tending, pick and place, packaging, assembly

Lightweight 40 kg frame with ±0.04 mm repeatability enables quick deployment and precise movements
Drag-and-drop Tablet Teach Pendant cuts programming time and training effort
Ethernet/IP, PROFINET, and Modbus TCP connectivity integrates with existing factory systems
Compatible with FANUC iRVision, force sensors, and ROBOGUIDE for vision-guided path optimization
PAINT configuration delivers explosion-proof safety, ISO 13849-1 and ATEX certified for hazardous zones
IP67 enclosure resists dust and immersion in demanding coating and painting environments
1,418 mm reach and 10 kg payload outpace UR3 and comparable cobots for complex tasks

: The FANUC CRX-10iA/L has a 10 kg payload and 1,418 mm reach, which exceeds comparable cobots like the UR3 for handling heavier loads and reaching farther distances. This combination makes it suitable for complex painting, coating, and assembly tasks in industrial environments.
: Yes, the PAINT configuration of the CRX-10iA/L is explosion-proof and certified to ISO 13849-1 and ATEX standards for safe operation in hazardous zones with flammable atmospheres. The IP67 enclosure also resists dust and immersion in demanding coating and painting environments.
: The robot uses a drag-and-drop Tablet Teach Pendant that cuts programming time and training effort for quick deployment. It also supports ROBOGUIDE software for offline simulation and path optimization before deployment on the production line.
: The CRX-10iA/L integrates with existing factory systems through Ethernet/IP, PROFINET, and Modbus TCP connectivity. It is also compatible with FANUC iRVision, force sensors, and ROBOGUIDE for vision-guided and optimized operations.
: Mounting is straightforward thanks to the compact 40 kg frame and lightweight design, which enables quick deployment to production lines. The ±0.04 mm repeatability ensures precise movements right after installation.

Collaborative robot vs standard industrial arm for hazardous painting and coating:

The FANUC CRX-10iA/L is a six-axis cobot built for explosion-proof painting and coating work. It bridges the gap between lighter collaborative models and rigid industrial arms, offering 10 kg payload and 1,418 mm reach in a 40 kg frame certified for hazardous zones.

For painting or coating in ATEX-regulated areas, the PAINT explosion-proof configuration and IP67 enclosure eliminate the need for secondary safety barriers or hazard-rated guarding that standard cobots require.
When parts exceed 3 kg or workspaces need reach beyond 1,250 mm, the 10 kg payload and 1,418 mm reach handle complex spray and coating passes without the cost and footprint of a larger industrial robot.
In cells where fast redeployment matters, the 40 kg lightweight frame and drag-and-drop tablet programming cut setup time compared to traditional teach-pendant-only systems.
Where vision-guided precision is critical, native FANUC iRVision and ROBOGUIDE offline simulation enable ±0.04 mm repeatability and path optimization without extensive recalibration.
On shared production lines, Ethernet/IP, PROFINET, and Modbus TCP integration plug directly into existing factory networks without protocol converters.
