Can the Fairino FR5 work in tight spaces and confined workspaces?

The Fairino FR5 Cobot weighs only 22 kg with a 922 mm reach and 5 kg payload, making it ideal for confined workspaces and line layouts where floor space is limited. Its compact frame allows it to fit into tight production areas while maintaining precision assembly, pick and place, and inspection capabilities.

What programming languages does the FR5 support?

The Fairino FR5 Cobot supports C#, C++, Python, and ROS/ROS2 programming interfaces for flexible automation across varied scenarios. This multi-language support simplifies integration for automation integrators with different software expertise.

Does the Fairino FR5 connect to factory network protocols?

The FR5 connects via TCP/IP and Modbus TCP/RTU as standard, with optional support for Profinet, EtherCAT, and Ethernet/IP protocols. Real-time EtherCAT architecture enables smooth, reliable performance on modern factory networks.

What repeatability does the Fairino FR5 Cobot achieve?

The Fairino FR5 Cobot hits +/- 0.02 mm repeatability, supporting precision assembly and quality inspection tasks where consistent, accurate motion is required. This high repeatability is maintained in its compact 22 kg frame.

Is there an explosion-proof version of the FR5?

An explosion-proof version of the Fairino FR5 Cobot is available for hazardous environments. Contact specialists for certification details and configuration options specific to your application.

How is the Fairino FR5 controlled and programmed?

The FR5 can be controlled via a 10.1-inch teach pendant or a web application with real-time EtherCAT support, enabling rapid deployment and remote operation. Setup and programming remain intuitive even for operators unfamiliar with complex automation systems.

Not sure it fits your cell? Book 20 minutes with an engineer who has specified this part before.

Book a call

Ordered the wrong size or interface? Here is exactly how sending it back works.

In Stock12 kg Payload

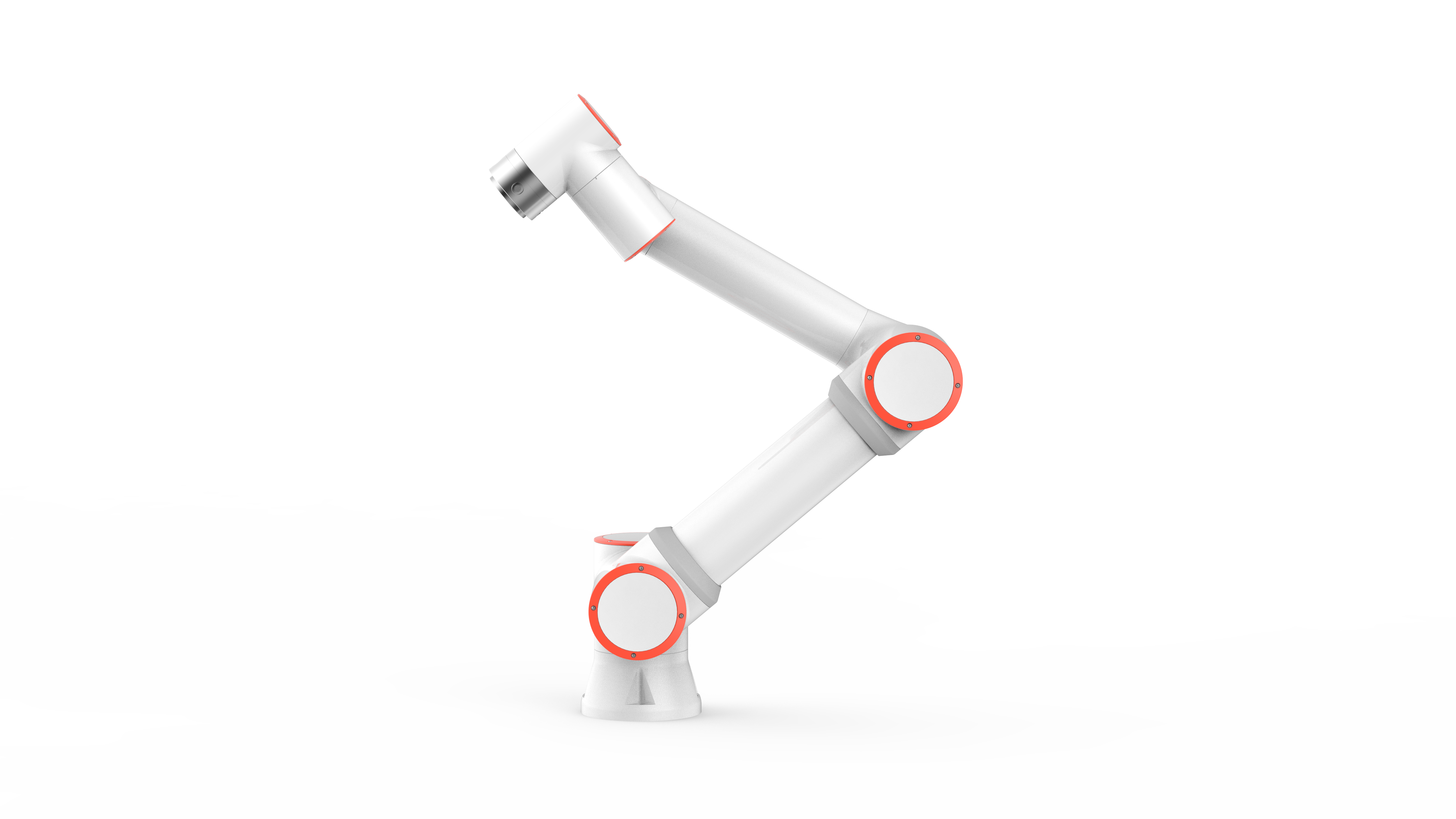

Fairino FR5 Cobot, 5 kg, 922 mm reach

Name: Fairino FR5 Cobot, 5 kg, 922 mm reach
Brand: Fairino
SKU: 3479
Price: 9000 USD
Availability: InStock

Fairino

$9,000.00

Fairino FR5 is a 6-axis collaborative robot with 5 kg payload, 922 mm reach, and 0.02 mm repeatability. Weighing 22 kg with IP54 protection, it supports TCP/IP, Modbus TCP/RTU, and optional Profinet/EtherCAT connectivity. Program in C#, C++, Python, or ROS via teach pendant or web interface. Ideal for pick and place, assembly, inspection, and gluing in electronics, automotive, and retail automation.

Fairino FR5 Cobot, 5 kg, 922 mm reach

The Fairino FR5 Cobot is a compact 6-axis collaborative robot designed for manufacturing engineers and automation integrators requiring precise, repeatable motion for assembly, quality inspection, and pick and place operations in space-constrained production environments.

Payload: 5 kg small payload cobot
Reach: 922 mm
Weight: 22 kg
Protection: IP54 rating

Key Features:

High repeatability of 0.02 mm supports applications as a precision assembly robot.
Supports TCP/IP and Modbus TCP/RTU, with options for Profinet, EtherCAT, and Ethernet/IP, ensuring seamless integration on the factory floor.
C#, C++, Python, and ROS/ROS2 interfaces, providing flexible programming for collaborative robots in varied automation scenarios.
Intuitive 10.1-inch teach pendant and web application interface for rapid deployment and setup.
Real-time EtherCAT architecture enables smooth, reliable system performance.
Explosion-proof version available for hazardous environments.

Applications:

Pick and place operations within confined workspaces
Precision assembly tasks for electronics and automotive components
Quality inspection in high-mix environments
Gluing and other repetitive processes requiring a small payload cobot

When to Choose the Fairino FR5 Cobot:

Ideal for line layouts where floor space and worker safety are top concerns
Beneficial in collaborative manufacturing cells with frequent task changes
Suitable where integration with leading factory protocols simplifies retrofitting

Common Questions Answered:

Is the FR5 food-grade safe? Contact our specialists for application-specific compliance and certification information.
What is the typical cycle time? Cycle time depends on specific programming and payload; detailed cycle charts are provided upon request.
What training is required? The intuitive FR5 interface supports fast onboarding for operators familiar with modern collaborative robots.

For cost-effective ROI, fast setup, and ongoing ease of maintenance, the Fairino FR5 Cobot offers a reliable solution for small and medium payload collaborative tasks across automotive, electronics, and retail.

Request a quote, schedule a demo, or speak to a specialist to learn how the Fairino FR5 Cobot addresses your automation needs.

Weight22 kg

Max. Payload5 kg

Max. Reach: 922 mm
DOF: 6
Repeatability: 0.02 mm
Max. Speed: 1
Protection Class: IP54
Model: FAIRINO FR5
Payload: 5 kg
Reach: 922 mm
IP Rating: IP54
Communication Protocols: TCP/IP, Modbus TCP/RTU, Profinet (optional), EtherCAT (optional), Ethernet/IP (optional)
Programming Interfaces: C#, C++, Python, ROS/ROS2
Control Interface: 10.1-inch teach pendant, web application
Architecture: EtherCAT
Applications: pick and place, quality inspection, gluing, assembly
Options: Explosion-proof version for hazardous environments

Hits ±0.02 mm repeatability in 22 kg compact frame for precision assembly
Explosion-proof version available for hazardous environments
Connects via TCP/IP, Modbus TCP/RTU, Profinet, EtherCAT, Ethernet/IP
Program in C#, C++, Python, ROS/ROS2 for flexible automation
Control from 10.1 inch teach pendant or web app with real-time EtherCAT
IP54 rated, 922 mm reach, 5 kg payload handles confined workspaces
Excels at pick and place, inspection, gluing, assembly tasks

: The Fairino FR5 Cobot weighs only 22 kg with a 922 mm reach and 5 kg payload, making it ideal for confined workspaces and line layouts where floor space is limited. Its compact frame allows it to fit into tight production areas while maintaining precision assembly, pick and place, and inspection capabilities.
: The Fairino FR5 Cobot supports C#, C++, Python, and ROS/ROS2 programming interfaces for flexible automation across varied scenarios. This multi-language support simplifies integration for automation integrators with different software expertise.
: The FR5 connects via TCP/IP and Modbus TCP/RTU as standard, with optional support for Profinet, EtherCAT, and Ethernet/IP protocols. Real-time EtherCAT architecture enables smooth, reliable performance on modern factory networks.
: The Fairino FR5 Cobot hits +/- 0.02 mm repeatability, supporting precision assembly and quality inspection tasks where consistent, accurate motion is required. This high repeatability is maintained in its compact 22 kg frame.
: An explosion-proof version of the Fairino FR5 Cobot is available for hazardous environments. Contact specialists for certification details and configuration options specific to your application.
: The FR5 can be controlled via a 10.1-inch teach pendant or a web application with real-time EtherCAT support, enabling rapid deployment and remote operation. Setup and programming remain intuitive even for operators unfamiliar with complex automation systems.

Small-payload cobot vs. larger or manual assembly:

The FR5 is a 5 kg collaborative robot built for tight workspaces where a full-size industrial arm or manual labour would not fit or scale. Choose it when precision and safety in confined areas matter more than high payload capacity.

For parts under 5 kg in crowded production cells, the 922 mm reach and 22 kg frame fit where bulkier 10+ kg cobots cannot be staged.
When repeatability to 0.02 mm is required, such as electronics assembly or quality inspection, the FR5 eliminates manual drift and rework.
In hazardous environments (dust, explosive atmospheres), the available explosion-proof version replaces manual handling without process redesign.
For frequent task switching between pick and place, gluing, and light assembly, the web app and teach pendant enable rapid reprogramming without IT overhead.
Multi-protocol support (TCP/IP, Modbus, Profinet, EtherCAT, Ethernet/IP) simplifies retrofit into existing factory floors without new control infrastructure.
