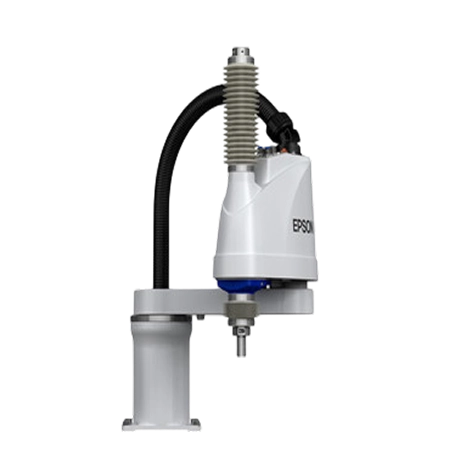

Epson LS3-B SCARA Robot, 400mm Reach, 3kg

Overview:

Epson LS3-B is a compact SCARA robot arm engineered for industrial small parts assembly, electronics manufacturing, medical device packaging, and automotive component handling.

Key Specifications:

• Reach: 400 mm
• Payload: up to 3 kg
• Repeatability: ±0.005 mm
• Cycle Time: 0.37 seconds
• Maximum Speed: 7000 mm/s
• Robot Weight: 19 kg
• Power Requirements: 230 V AC
• IP Rating: IP20
• Operating Temperature Range: 5 °C - 40 °C
• Mounting Orientations: Tabletop or wall

Performance and Capabilities:

• Residual Vibration Technology enables low vibration and high precision with minimal overshoot.
• Optimized for high acceleration and deceleration, supporting fast start-stop motion and quick cycle times.
• Clean Room ISO 4 models available for contamination-sensitive manufacturing environments.
• Battery-free encoder simplifies maintenance, reducing downtime.

Applications:

• Electronics assembly
• Medical device packaging
• Automotive component automation
• Pick-and-place operations
• Palletising and machine tending

Integration and Compatibility:

• Integrates seamlessly with Epson RC+ development software (Epson RC+) for open-platform setup and programming.
• Supports optional vision systems with built-in camera cable for robot guidance.
• Top-of-arm connections include electrical and pneumatic lines, plus screw holes for mounting accessories.
• Compatible with parts feeding solutions and fieldbus interface systems for efficient integration.

Competitive Positioning:

The Epson LS3-B offers a compact design with precise movement and fast cycle times, competitive with leading SCARA robot arms in its class. Compared to other Epson SCARA models, LS3-B features a smaller reach and lower payload, ideal for clean room and handling tasks requiring high precision in limited space.
