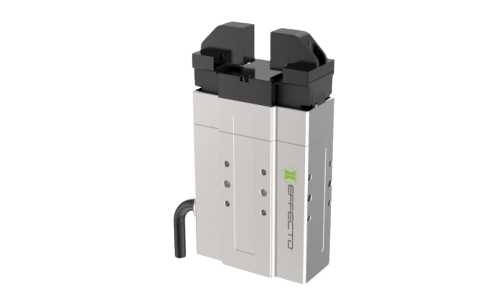

The Effecto Group SpA EIG2-13005 is an electric parallel gripper designed for controlled handling of small components in automated assembly and pick-and-place operations.
This model provides 13 mm of stroke per jaw with a maximum gripping force of 10 N and is rated for workpieces up to 0.1 kg.
Repeatability is specified at 0.02 mm, supporting precise positioning requirements in electronics assembly and similar applications.
The gripper uses electric propulsion and features programmable force and position control, enabling adaptive handling across varying part geometries without mechanical adjustments.
At 0.4 kg, the compact unit integrates into space-constrained end-of-arm tooling configurations.
The maximum ambient operating temperature is 40°C.
This EIG2 variant is one of four available sizes in the series.
Selection should be based on required stroke length, gripping force, and workpiece mass for the intended application.
