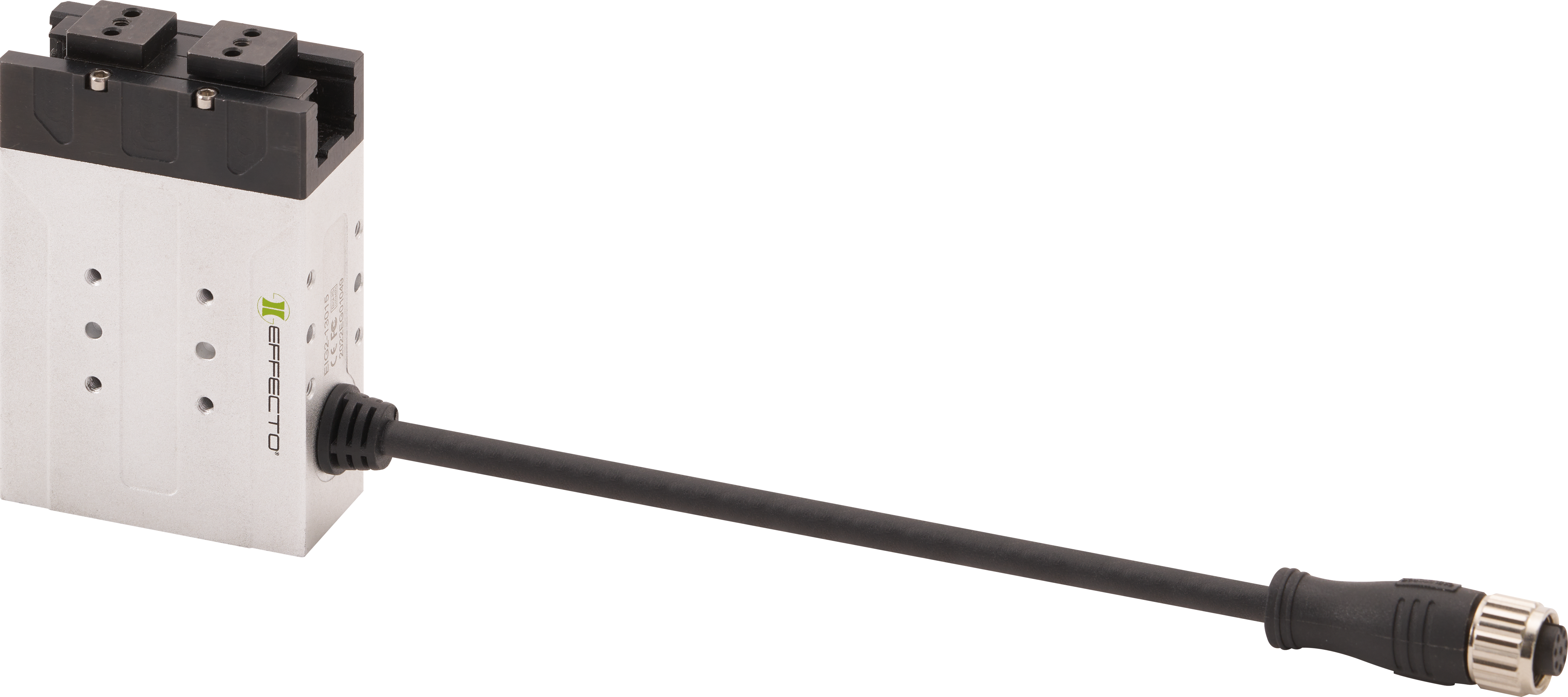

The Effecto Group EIG2-06002 is an electric parallel gripper engineered for controlled gripping of lightweight components in automated systems.
This model delivers 6 mm stroke per jaw with a maximum gripping force of 4 N and is designed to handle workpieces up to 0.05 kg.
Weighing 0.15 kg, the gripper provides positioning repeatability of 0.02 mm for consistent placement accuracy.
The EIG2 series uses electric propulsion with programmable force and position control, enabling adaptive handling across varied part geometries without tool changes.
Communication options include Modbus RTU and digital I/O, with optional expansion to USB, Ethernet, CAN, PROFINET, or EtherCAT for integration into diverse control architectures.
The compact rectangular housing supports five mounting orientations to accommodate space-constrained end-of-arm tooling configurations.
This gripper operates in ambient temperatures up to 40°C and is suited to applications requiring low gripping forces, such as electronics assembly, medical device handling, and small component manipulation.

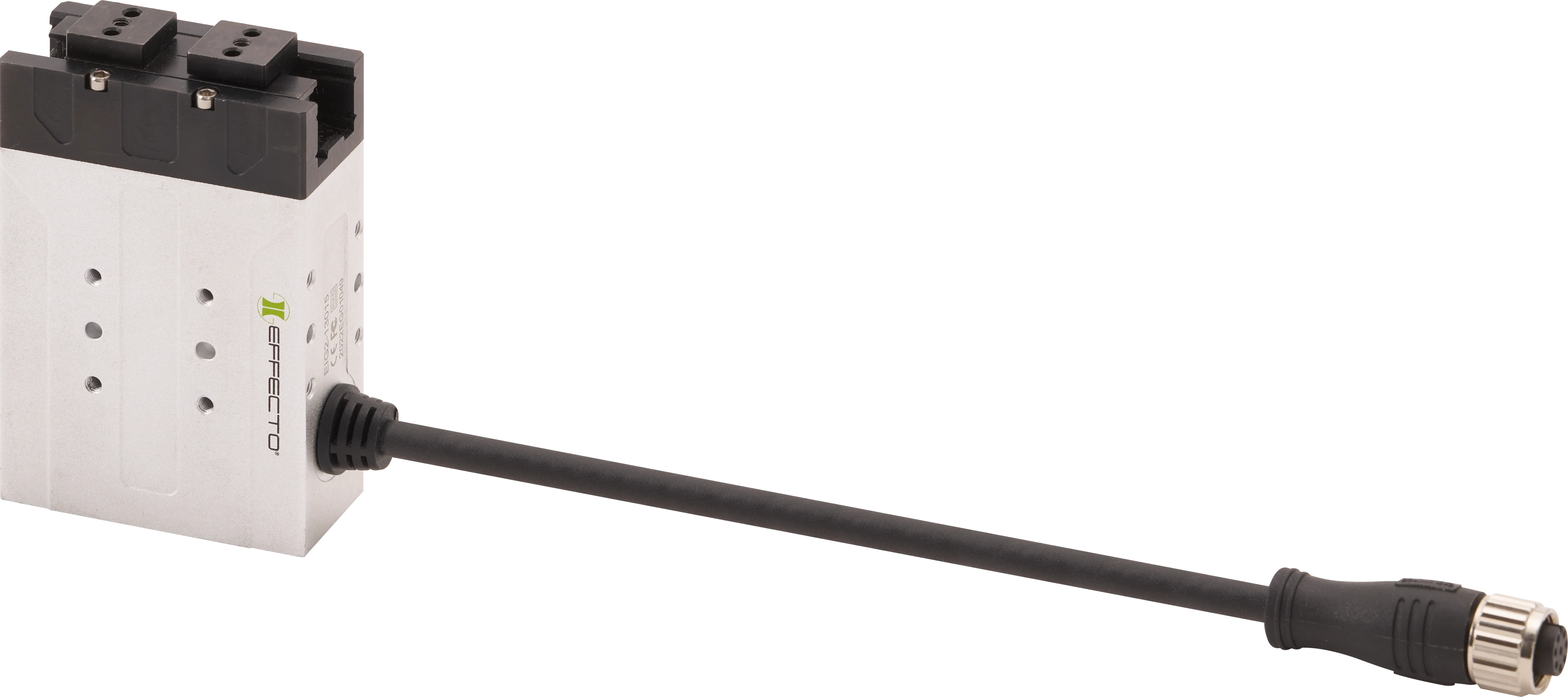

The EIG2 series is available in four sizes with strokes ranging from 6 to 40 mm and gripping forces up to 280 N across the product line.
