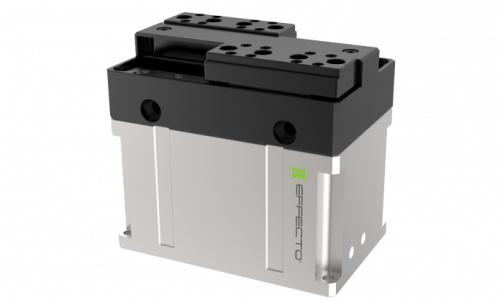

The Effecto Group SpA EIG2-40140 is an electric parallel gripper designed for automated handling of small parts in industrial environments.
This model provides 40 mm of stroke per jaw and delivers up to 280 N of gripping force, with a recommended workpiece weight capacity of 3 kg.
Repeatability is specified at 0.03 mm, supporting consistent positioning in precision assembly and pick-and-place operations.
Weighing 1 kg, the gripper features a compact form factor suited to space-constrained end-of-arm tooling configurations.
The electric propulsion method enables programmable control of force and position, allowing adaptive gripping across varying part geometries and materials.
Maximum ambient operating temperature is rated at 40 °C.
The EIG2 series is available in four sizes, with this model representing the configuration offering 40 mm jaw stroke.
Selection should be based on required stroke length, gripping force, and workpiece weight for the specific application.
