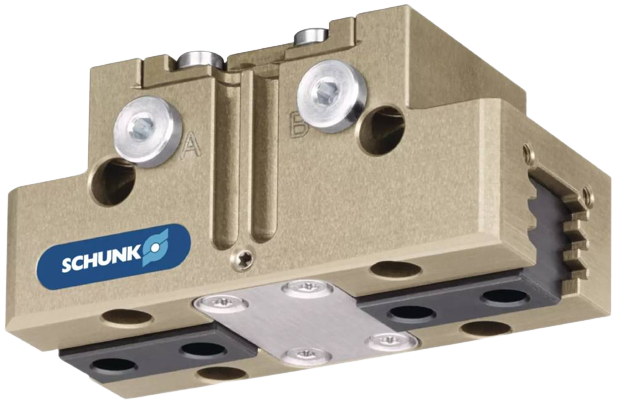

The SCHUNK PGN-plus-P 50-1 AS-SD is a pneumatic parallel gripper designed for precision handling in demanding industrial environments.
This two-finger gripper delivers 4 mm stroke per jaw and a maximum gripping force of 295 N, with repeatability held to 0.01 mm.
Weighing 0.21 kg, the unit is suitable for handling workpieces up to 1.1 kg and operates in ambient temperatures up to 90°C.
The AS designation indicates gripping-force retention capability, maintaining minimum clamping force even during air pressure loss.
The SD dustproof design provides protection against contaminants, making this gripper well-suited for moderately contaminated manufacturing environments where particulate ingress could otherwise compromise performance.
Operating on 24 V pneumatic control, the gripper completes opening and closing cycles in 0.015 seconds, supporting fast-cycle automation applications.
This combination of dust protection, force retention, and sub-millimeter repeatability makes the unit appropriate for pick-and-place operations, machine tending, and other universal handling tasks where both speed and reliability in the presence of dust are required.
