What is the DOBOT CR30H used for

The DOBOT CR30H is a 30 kg payload collaborative robot with 1,800 mm reach designed for palletizing, machine tending, pick-and-place, and material handling in food and beverage, automotive, logistics, and chemical production environments. It delivers up to 10 pieces per minute with 0.05 mm precision and IP67 protection for dust and water-exposed areas.

Can I teach the DOBOT CR30H cobot without programming experience

Yes, the CR30H supports drag-to-teach functionality via pendant, PC, or mobile app, which simplifies setup and reduces programming time. Torque feedback guidance helps operators teach movements intuitively without prior coding knowledge.

What networks does the DOBOT CR30H connect to

The CR30H connects via Modbus, TCP/IP, Profinet, EtherCAT, and digital I/O, allowing seamless integration into existing industrial automation networks and control systems.

Is the DOBOT CR30H safe to work around

The CR30H detects collisions in 1 millisecond and features fail-safe brakes that stop instantly, plus integrated torque sensors for collaborative operation. It meets ISO 13849 and CE certification standards for workplace safety.

Can the DOBOT CR30H work in wet or dusty environments

Yes, the CR30H has an IP67 rating, which ensures resistance to dust and water, making it reliable in harsh production areas including food processing facilities and material handling zones.

Not sure it fits your cell? Book 20 minutes with an engineer who has specified this part before.

Book a call

Ordered the wrong size or interface? Here is exactly how sending it back works.

In StockHigh Payload

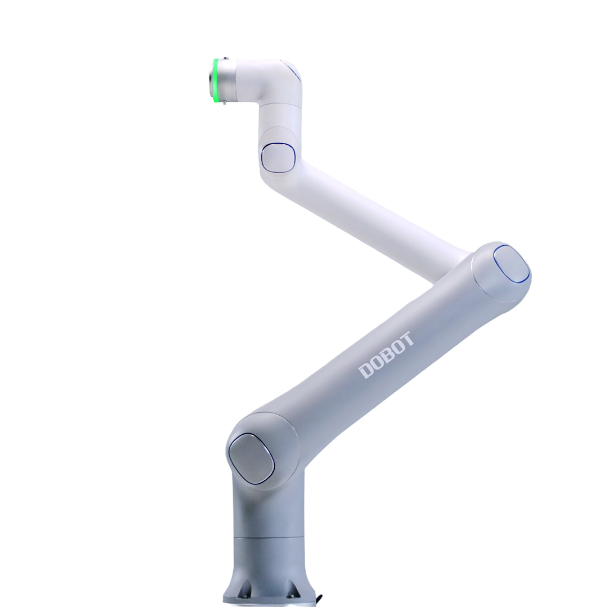

DOBOT CR30H Cobot, 30kg, 1800mm

Name: DOBOT CR30H Cobot, 30kg, 1800mm
Brand: DOBOT
SKU: 3578
Price: 61200 USD
Availability: InStock

Dobot Robotics

$61,200.00

DOBOT CR30H is a six-axis collaborative robot with 30 kg payload, 1,800 mm reach, and IP67 protection for heavy-duty tasks in food, automotive, logistics, and chemical processing. Features 0.05 mm repeatability, collision detection, and multi-interface programming.

Product Overview:

DOBOT CR30H is a heavy-duty six-axis collaborative robot arm designed for high-performance industrial automation in environments requiring a 30 kg payload capacity and 1,800 mm reach. Suitable for manufacturers, logistics providers, and processing plants seeking scalable and precise automation solutions.

Headline Specifications:

Payload Capacity: 30 kg
Maximum Reach: 1,800 mm
Repeatability: 0.05 mm
Protection Rating: IP67
Robot Weight: 98.5 kg

CR30H provides throughput up to 10 pieces per minute, matching requirements for fast-paced industrial workflows.

Key Features:

HyperMove Motion Control: Enables faster throughput and stable operation at high speeds.
TrueMotion Path Replication: Optimises accuracy for repeatable pick-and-place and machine tending tasks.
Integrated Vibration Suppression: Maintains precision during dynamic palletising and material handling.
Drag-to-Teach Functionality: Simplifies robot setup, reducing programming time.
Multiple Programming Interfaces: Supports teach pendant, PC, and app controls for flexible integration.
Industrial Communication: Compatible with Modbus, TCP/IP, Profinet, EtherCAT, and digital I/O for easy installation in automation networks.

Applications:

Food and beverage processing
Automotive manufacturing
Logistics automation
Chemical processing

Compact footprint and IP67 protection allow mounting in food-safe areas and space-constrained production sites. CR30H can be integrated for palletising, machine tending, pick-and-place, and materials handling.

Discover compatible collaborative robots and application guides for industrial automation solutions.

Safety Features:

1 ms collision detection for rapid response
Fail-safe braking system
Meets ISO 13849 and CE certification standards

Integrated torque sensors and advanced safety design reduce workplace risks in collaborative operating environments.

Comparison and Industry Context:

DOBOT CR30H offers a payload capacity above common cobot standards, with reach specification suited for demanding logistics and assembly tasks. IP67 protection makes CR30H more durable for dust and water-exposed facilities compared to light-duty collaborative robots.

Common Questions and Answers:

What is collaborative robot reach? Reach specification for CR30H is 1,800 mm, enabling automation across wide workspaces.
Why does IP67 matter? IP67 rating ensures resistance to dust and water, supporting reliable operation in harsh or hygienic environments such as food production.
Best applications for CR30H? Ideal for palletising, machine tending, and material handling in automotive, logistics, food processing, and chemical plants.
Can this robot handle heavy loads? CR30H is a heavy-duty cobot with 30 kg payload capacity for industrial automation tasks requiring robust lifting and manipulation.
Is it suitable for food production? Yes, IP67 protection and compact design make CR30H appropriate for food and beverage automation.

Alt Text Recommendation:

"DOBOT CR30H collaborative robot arm, 30 kg payload, 1,800 mm reach, shown in material handling action."

Internal Links:

Structured Data Recommendation:

Brand: DOBOT
Model: CR30H
Category: Collaborative robot arm, heavy-duty cobot
Payload: 30 kg
Reach: 1,800 mm
Repeatability: 0.05 mm
Protection: IP67
Controller Interfaces: Modbus, TCP/IP, Profinet, EtherCAT, digital I/O
Certification: ISO 13849, CE certified
Mounting Interface: Space-constrained, food-safe, multi-environment
Throughput Rate: 10 pieces per minute

Weight98.5 kg

Weight98.5kg

Max. Payload30 kg

Max. Reach: 1 / 800 mm
DOF: 6
Repeatability: 0.05 mm
Protection Class: IP67
Model: DOBOT CR30H
Payload: 30kg
Reach: 1800mm
IP Rating: IP67
Cycle Time: 10 pieces per minute
Communication Interfaces: Modbus, TCP/IP, Profinet, EtherCAT, Digital I/O

Palletize with ±0.05 mm precision, IP67 sealed, vibration suppressed
HyperMove motion and TrueMotion path replication deliver stable high-speed cycles
Teach via pendant, PC or app with drag-to-teach and torque feedback
Connects via Modbus, TCP/IP, Profinet, EtherCAT, digital I/O
Detects collisions in 1 ms, fail-safe brakes stop instantly
Food, automotive, logistics, chemical industries gain fast deployment
Cycles 10 pcs/min consistently across palletizing and machine tending
1,800 mm reach handles wide workspaces in space-constrained facilities
IP67 rating runs reliably in dust and water-exposed production areas

: The DOBOT CR30H is a 30 kg payload collaborative robot with 1,800 mm reach designed for palletizing, machine tending, pick-and-place, and material handling in food and beverage, automotive, logistics, and chemical production environments. It delivers up to 10 pieces per minute with 0.05 mm precision and IP67 protection for dust and water-exposed areas.
: Yes, the CR30H supports drag-to-teach functionality via pendant, PC, or mobile app, which simplifies setup and reduces programming time. Torque feedback guidance helps operators teach movements intuitively without prior coding knowledge.
: The CR30H connects via Modbus, TCP/IP, Profinet, EtherCAT, and digital I/O, allowing seamless integration into existing industrial automation networks and control systems.
: The CR30H detects collisions in 1 millisecond and features fail-safe brakes that stop instantly, plus integrated torque sensors for collaborative operation. It meets ISO 13849 and CE certification standards for workplace safety.
: Yes, the CR30H has an IP67 rating, which ensures resistance to dust and water, making it reliable in harsh production areas including food processing facilities and material handling zones.

Heavy-duty cobot versus standard-payload collaborative robots:

The DOBOT CR30H is built for high-payload material handling where lighter cobots fall short. It carries 30 kg across a 1,800 mm reach with 0.05 mm precision, making it suited to palletising, machine tending, and logistics automation in food, automotive, and chemical production. Choose this over lighter alternatives when your parts or gripper assemblies exceed 15 kg or when you need to cover wide workspaces in compact facilities.

For palletising boxes over 15 kg or stacking operations requiring consistent high-speed cycles, the 30 kg payload eliminates tool swaps and runs 10 pieces per minute without payload compromise.
In space-constrained food or chemical plants, the 1,800 mm reach covers wide assembly or pick-lines while the IP67 sealing operates reliably in dust and washdown zones where lighter cobots risk downtime.
When precision matters in tight tolerances, 0.05 mm repeatability with vibration suppression and TrueMotion path replication holds accuracy during dynamic palletising or machine loading that lighter cobots struggle to handle smoothly.
For fast deployment in mixed automation networks, drag-to-teach programming and native Modbus, Profinet, and EtherCAT connectivity integrate into existing cells in hours rather than days of custom coding.
