What is the payload capacity of the Dobot CR20A?

The Dobot CR20A has a maximum payload of 20 kg, allowing it to handle heavy materials across its 1700 mm reach for tasks like palletizing, machine tending, and material handling.

What is the reach of the CR20A cobot?

The CR20A has a 1700 mm working radius, giving it extended reach suitable for large workspaces and automation tasks that require both high payload and distance coverage.

Can the Dobot CR20A work in wet or dusty environments?

Yes, the CR20A is IP68 rated for dust and liquid protection, making it suitable for harsh factory conditions with moisture, dust, and oil exposure.

What software platforms does the Dobot CR20A integrate with?

The CR20A integrates seamlessly with DobotStudio, DobotLink, Modbus, TCP/IP, Ethernet/IP, and ROS, ensuring compatibility with existing industrial control systems.

What is the repeatability accuracy of the CR20A?

The Dobot CR20A holds precision at ±0.05 mm repeatability, delivering consistent accuracy for heavy-load applications across its 20 kg payload range.

Not sure it fits your cell? Book 20 minutes with an engineer who has specified this part before.

Book a call

Ordered the wrong size or interface? Here is exactly how sending it back works.

In Stock25 kg Payload

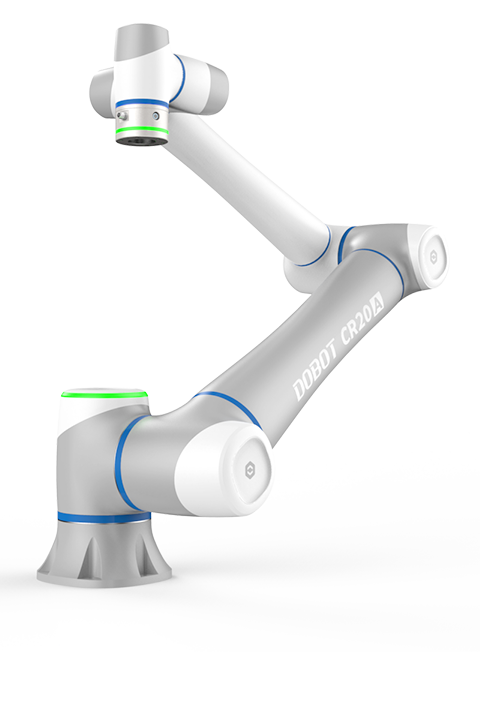

Dobot CR20A Collaborative Robot, 20 kg, 1700 mm

Name: Dobot CR20A Collaborative Robot, 20 kg, 1700 mm
Brand: Dobot
SKU: 3499
Price: 52900 USD
Availability: InStock

Dobot Robotics

$52,900.00

Six-axis collaborative robot with 20 kg payload, 1700 mm reach, and 0.1 mm repeatability. IP68-rated for dusty, wet, and oily environments. Integrates via DobotStudio, Modbus, TCP/IP, Ethernet/IP, and ROS. Built for palletizing, machine tending, packaging, and assembly in manufacturing.

The Dobot CR20A Collaborative Robot is a 6 dof robotic arm designed for heavy-duty material handling and large workspaces in manufacturing automation.

Maximum payload: 20 kg
Reach: 1700 mm
Repeatability: ±0.05 mm
IP rating: IP68 for dust and liquid protection

Key Features:

6-axis cobot robot suitable for palletizing, machine tending, packaging, material handling, and assembly tasks requiring both high payload and extended reach.
Full compatibility with industrial communication platforms, including DobotStudio, DobotLink, Modbus, TCP/IP, Ethernet/IP, and ROS, ensures seamless integration with existing manufacturing systems.
73 kg aluminium alloy and ABS construction for industrial environments.
The Dobot CRA Series includes the CR20A model to address demanding applications where consistent performance at high loads is required.

Advantages over Similar Cobots:

The CR20A outperforms typical collaborative robots in its class by combining a 20 kg payload with a 1700 mm working radius, making it ideal for handling larger or heavier workpieces compared to 10 kg or 12 kg class cobots.
IP68-rated design enables reliable operation in conditions with dust, moisture, and oil, extending deployment to harsh and variable factory environments.

Industry Compliance and Certification:

Meets IEC 60529 standards with IP68 rating, tested and certified by SGS for water and dust ingress protection.

Related Resources:

Weight73 kg

Max. Payload20 kg

Max. Reach: 1 / 700 mm
DOF: 6
Repeatability: 0.1 mm
Max. Speed: 2
Protection Class: IP 68
Model: CR20A
Payload: 20 kg
Reach: 1700 mm
IP Rating: IP68
Supported Protocols: DobotStudio, DobotLink, Modbus, TCP/IP, Ethernet/IP, ROS

Lifts 20 kg across 1700 mm reach, built for heavy material handling and large automation tasks
Integrates seamlessly with DobotStudio, DobotLink, Modbus, TCP/IP, Ethernet/IP, and ROS platforms
Deploy fast with user-friendly interface and flexible control suited to industrial environments
Holds precision at ±0.05 mm repeatability for consistent heavy-load accuracy
IP68 rated enclosure protects against dust, moisture and oil in harsh factory conditions
Six-axis design suits palletizing, machine tending, packaging, material handling and assembly work

: The Dobot CR20A has a maximum payload of 20 kg, allowing it to handle heavy materials across its 1700 mm reach for tasks like palletizing, machine tending, and material handling.
: The CR20A has a 1700 mm working radius, giving it extended reach suitable for large workspaces and automation tasks that require both high payload and distance coverage.
: Yes, the CR20A is IP68 rated for dust and liquid protection, making it suitable for harsh factory conditions with moisture, dust, and oil exposure.
: The CR20A integrates seamlessly with DobotStudio, DobotLink, Modbus, TCP/IP, Ethernet/IP, and ROS, ensuring compatibility with existing industrial control systems.
: The Dobot CR20A holds precision at ±0.05 mm repeatability, delivering consistent accuracy for heavy-load applications across its 20 kg payload range.

Collaborative robot for heavy handling versus lighter-payload cobots:

The Dobot CR20A combines 20 kg payload with 1700 mm reach, making it suited to tasks where standard 10–12 kg cobots fall short. Choose this model when workpieces, pallets, or assemblies demand both weight capacity and extended workspace.

For palletizing heavy boxes or handling large metal parts, the 20 kg capacity eliminates repeated passes that lighter cobots would require.
On large assembly lines or machine-tending cells, the 1700 mm reach reduces the need for repositioning the arm or moving parts between stations.
In wet, oily, or dusty shop floors, IP68 protection keeps the arm operational where lighter cobots with lower ingress ratings risk downtime.
With ±0.05 mm repeatability, heavy-load accuracy remains consistent for precise palletizing and part placement across long shifts.
Multi-platform integration (Modbus, Ethernet/IP, ROS) suits mixed-vendor production lines without custom adapters.
