What is the FAIRINO FR5 and what can it do?

The FAIRINO FR5 is a six-axis collaborative robot arm designed for precision assembly, material processing, and dispensing tasks in manufacturing environments. It delivers 5 kg payload capacity across a 922 mm reach with ±0.02 mm repeatability to meet high-accuracy requirements.

Can the FAIRINO FR5 work in wet or dusty environments?

Yes, the FAIRINO FR5 is IP66 rated, which means it can operate reliably in wet and dusty factory conditions. It functions at temperatures from 0 to 45°C and up to 90% relative humidity without condensation.

How do you program the FAIRINO FR5 without coding?

The FAIRINO FR5 uses graphical programming with drag teaching, allowing you to set up multi-axis tasks through a teach pendant or web app without writing code. This enables quick task setup even for complex automation workflows.

What is the footprint and weight of the FAIRINO FR5 collaborative robot?

The FAIRINO FR5 has a compact 128 mm diameter footprint and weighs approximately 22 kg, making it suitable for constrained work cells and assembly lines where space is limited.

What is the maximum speed of the FAIRINO FR5 arm?

The FAIRINO FR5 reaches a TCP speed of 1 m/s for efficient material processing workflows, and each of its six rotary joints can move at a maximum speed of ±180 degrees per second.

Not sure it fits your cell? Book 20 minutes with an engineer who has specified this part before.

Book a call

Ordered the wrong size or interface? Here is exactly how sending it back works.

In StockCompact Design

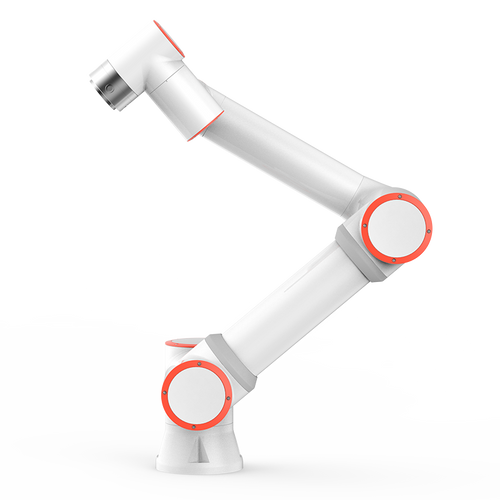

FAIRINO FR5 Collaborative Robot, 5 kg, 922 mm

Name: FAIRINO FR5 Collaborative Robot, 5 kg, 922 mm
Brand: FAIRINO
SKU: 1001
Price: 6999 USD
Availability: InStock

FAIRINO

$6,999.00

Six-axis collaborative robot with 5 kg payload, 922 mm reach, and ±0.02 mm repeatability. IP66-rated for dust and moisture. Programmed via drag teaching on 10.1 inch pendant or web app. Compact 22 kg design for assembly, dispensing, and precision automation.

FAIRINO FR5 Collaborative Robot Arm is a 6 axis cobot engineered for industrial automation tasks requiring precision handling in assembly, material processing, and manufacturing environments.

Technical Specifications:

Payload: 5 kg
Reach: 922 mm
Repeatability: ±0.02 mm movement, ±0.03 mm pose (ISO 9283)
Protection: IP66 rated against dust and moisture
Weight: approximately 22 kg
Footprint: 128 mm diameter

Programming Features:

Graphical programming interface for quick task setup
Drag teaching with teach pendant or web app control (10.1 inch pendant supported)
TCP speed of 1 m/s for efficient operations
Six rotary joints, each with ±180°/s maximum speed

Environmental Protection:

IP66 robot arm design enables use in wet or dusty workspaces
Operates from 0-45°C and up to 90% relative humidity (non-condensing)
Suitable for environments requiring robust protection, such as precision robot deployments in manufacturing

Applications:

Supports metal processing, automated assembly, dispensing, and related workflows
Multi-axis linkage and modular articulated robot arm design simplifies integration in constrained work cells
Ideal for industrial automation scenarios involving collaborative robots

Comparison:

FAIRINO FR5 cobot offers 5 kg payload and 922 mm reach, suitable for tasks where comparable models may fall below these capacities
IP66 rating distinguishes FAIRINO FR5 as a collaborative robot arm option for wet or dusty production lines
Precision repeatability (±0.02 mm) meets requirements for high-accuracy 6 dof robotic arm applications

Structured Answers:

Best cobot for precision assembly: FAIRINO FR5 delivers high repeatability and smooth integration for fine manufacturing tasks.
IP66 rated industrial robot: The FAIRINO FR5 withstands dust and water exposure in challenging factory conditions.
Drag teaching robot arm: Quick task setup is enabled through graphical programming and intuitive drag teaching methods.

FAQ-style Answers:

What is the FAIRINO FR5 payload capacity? The FAIRINO FR5 can handle a payload of up to 5 kg.
Can the FAIRINO FR5 work in wet environments? Yes, the FAIRINO FR5 collaborative robot arm is IP66 rated for operation in dusty or moist conditions.

Explore related collaborative robot arms, robot accessories, and automation application guides for comparison and integration options.

Weight≈22kg (without wire)

WeightApprox. 22 kg

Payload5kg

Reach: 922mm
Degrees of freedom: 6 rotating joints
Repeatability: ±0.02mm
Pose repeatability per ISO 9283: ±0.03mm
Typical TCP speed: 1m/s
Footprint: 128mm
Operating temperature: 0-45℃
Operating humidity: 90%RH (non-condensing)
HMI: 10.1 inch teach pendant or mobile terminal Web APP
Axis 1: ±175° working range / ±180°/s maximum speed
Axis 2: ﹢85°/﹣265° working range / ±180°/s maximum speed
Axis 3: ±150° working range / ±180°/s maximum speed
Axis 4: ﹢85°/﹣265° working range / ±180°/s maximum speed
Axis 5: ±175° working range / ±180°/s maximum speed
Axis 6: ±175° working range / ±180°/s maximum speed
Model: FAIRINO FR5
Joint Speed: Up to ±180°/s
TCP Speed: 1 m/s
IP Rating: IP66
Axis 1 Range: ±175°
Axis 2 Range: +85°/-265°
Axis 3 Range: ±150°
Axis 4 Range: +85°/-265°
Axis 5 Range: ±175°
Axis 6 Range: ±175°
Material: plastic / metals

Six-axis cobot arm built for the next generation of collaborative automation
Graphical programming with drag teaching enables multi-axis setup without code
IP66 rated, operates reliably in wet and dusty factory environments
Compact 128 mm footprint fits constrained work cells and assembly lines
±0.02 mm repeatability per ISO 9283 meets precision assembly requirements
TCP speed reaches 1 m/s for efficient material processing workflows
Handles 5 kg payload across 922 mm reach in metal processing and dispensing

: The FAIRINO FR5 is a six-axis collaborative robot arm designed for precision assembly, material processing, and dispensing tasks in manufacturing environments. It delivers 5 kg payload capacity across a 922 mm reach with ±0.02 mm repeatability to meet high-accuracy requirements.
: Yes, the FAIRINO FR5 is IP66 rated, which means it can operate reliably in wet and dusty factory conditions. It functions at temperatures from 0 to 45°C and up to 90% relative humidity without condensation.
: The FAIRINO FR5 uses graphical programming with drag teaching, allowing you to set up multi-axis tasks through a teach pendant or web app without writing code. This enables quick task setup even for complex automation workflows.
: The FAIRINO FR5 has a compact 128 mm diameter footprint and weighs approximately 22 kg, making it suitable for constrained work cells and assembly lines where space is limited.
: The FAIRINO FR5 reaches a TCP speed of 1 m/s for efficient material processing workflows, and each of its six rotary joints can move at a maximum speed of ±180 degrees per second.

Cobot vs traditional fixed automation, choosing when to go collaborative:

The FAIRINO FR5 is a six-axis collaborative arm designed for tasks where you need precision handling with the flexibility to reprogram and reposition quickly. Unlike hard-wired fixed automation, this cobot uses graphical drag teaching so setup requires no coding. Choose it over manual assembly or fixed tooling when precision and repeatability matter, or when your task mix changes across production runs.

For precision assembly lines where ±0.02 mm repeatability is required, the FR5 meets ISO 9283 standards without custom fixtures or manual calibration.
In wet or dusty factory environments, the IP66 rating allows reliable operation where standard cobots risk contamination or corrosion.
For constrained work cells and tight assembly lines, the 128 mm footprint and 922 mm reach fit spaces where larger arms cannot, freeing floor space for parallel processes.
On material processing and dispensing workflows, 1 m/s TCP speed delivers efficient cycle times while the 5 kg payload handles common parts and tool combinations.
When your production needs shift between tasks, graphical programming and teach pendant control reduce redeployment time versus reconfiguring hard automation or retraining manual operators.
