What is the payload and reach of the FAIRINO FR3 Robot Arm?

The FAIRINO FR3 has a payload capacity of 3 kg and a reach of 622 mm, making it suitable for precision tasks in compact assembly cells. The 128 mm footprint allows installation in tight spaces where larger robots cannot fit.

Can the FAIRINO FR3 work in wet or dusty environments?

The FAIRINO FR3 is rated IP66 for protection against dust and water in all scenarios and operates reliably in temperatures from 0 to 45°C with humidity up to 90% non-condensing. Its aluminum and steel construction provides durability in demanding industrial conditions.

How accurate is the FAIRINO FR3?

The FAIRINO FR3 delivers ±0.02 mm repeatability for high-precision tasks such as assembly, dispensing, and metalworking applications. The TCP reaches speeds up to 1 m/s with all six axes operating at up to ±180°/s.

Is the FAIRINO FR3 easy to program and set up?

The FAIRINO FR3 features graphical programming with drag-to-teach functionality that reduces operator training times and enables fast deployment. It can be operated via a 10.1-inch teach pendant or mobile web terminal and supports ROS secondary development for integration into various automation systems.

What applications is the FAIRINO FR3 suitable for?

The FAIRINO FR3 is designed for precision assembly, electronics manufacturing, metalworking, automated dispensing, and material handling in compact spaces where a lightweight, collaborative six-axis robot arm is needed.

Not sure it fits your cell? Book 20 minutes with an engineer who has specified this part before.

Book a call

Ordered the wrong size or interface? Here is exactly how sending it back works.

In Stock1100mm Reach

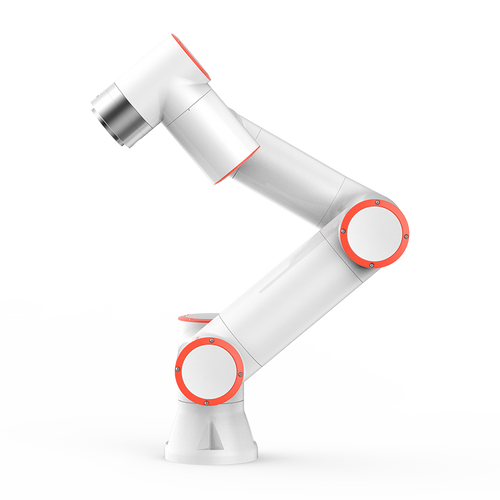

FAIRINO FR3 Robot Arm, 3 kg, 622 mm reach

Name: FAIRINO FR3 Robot Arm, 3 kg, 622 mm reach
Brand: FAIRINO
SKU: 1002
Price: 6099 USD
Availability: InStock

FAIRINO

$6,099.00

Six-axis collaborative robot arm with 3 kg payload, 622 mm reach, and ±0.02 mm repeatability. IP66-rated for dusty and wet environments. Compact 15 kg frame fits tight workspaces. Program via graphical interface, teach pendant, or web app. ROS-compatible for metalworking, assembly, dispensing, and material handling.

The FAIRINO FR3 Robot Arm is a six-axis collaborative industrial robot arm designed for precision tasks in assembly, dispensing, material handling, and metalworking environments.

Performance:

Payload: 3 kg
Reach: 622 mm
Repeatability: ±0.02 mm
Footprint: 128 mm
Total weight: 15 kg (without cabling)
All six axes operate at up to ±180°/s
TCP speed up to 1 m/s

The FAIRINO FR3 offers a lightweight alternative for small to medium-sized assembly cells and is ideal for applications requiring high precision and compact reach.

Operating Environment:

Protection: IP66 rated against dust and water
Temperature: 0–45°C
Humidity: up to 90% RH (non-condensing)

Aluminum and steel construction provides durability in demanding industrial conditions.

Integration:

The FR3 Robot Arm supports multiple communication protocols and ROS secondary development, allowing integration into a wide range of automation systems. Compatibility with graphical programming interfaces, drag teaching, and multi-axis linkage simplifies programming and setup. Users can operate the robot via a 10.1-inch teach pendant or a mobile web terminal.

Easy-to-use graphical programming enables fast deployment
Drag-to-teach reduces training times for operators

Explore related solutions and integration guides in Robot Arms, Assembly Solutions, and Material Handling Applications.

Applications:

Precision tasks in assembly and electronics manufacturing
Metalworking and automated dispensing
Material handling in compact spaces

The FAIRINO FR3 is suited for operators seeking a collaborative robot arm with fast setup and intuitive programming. Typical training times are shortened by the graphical interface and drag teaching. The robot is delivered with a teach pendant and supports customization through open communication protocols. Consult product documentation for more details on package contents and support options.

Weight≈15kg (without wire)

Weight15 kg (without cabling)

Payload3kg

Reach: 622mm
Degrees of freedom: 6 rotating joints
Repeatability: ±0.02mm
Pose repeatability per ISO 9283: ±0.03mm
Typical TCP speed: 1m/s
Footprint: 128mm
Operating temperature: 0-45℃
Operating humidity: 90%RH (non-condensing)
HMI: 10.1 inch teach pendant or mobile terminal Web APP
Maximum speed (all axes): ±180°/s
Max speed: ±180°/s
TCP Speed: 1 m/s
Pose Repeatability: ±0.03 mm (per ISO 9283)
Ingress Protection: IP66

Six-axis cobot delivers intelligent manufacturing and automation
Graphical programming with drag teaching and multi-axis linkage integration
IP66 protection rated for dust and water in all scenarios
Compact 128 mm footprint fits tight assembly cells
±0.02 mm repeatability for precision tasks
TCP reaches 1 m/s with all six axes at ±180 per second
Operates 0–45°C in up to 90% humidity, non-condensing

: The FAIRINO FR3 has a payload capacity of 3 kg and a reach of 622 mm, making it suitable for precision tasks in compact assembly cells. The 128 mm footprint allows installation in tight spaces where larger robots cannot fit.
: The FAIRINO FR3 is rated IP66 for protection against dust and water in all scenarios and operates reliably in temperatures from 0 to 45°C with humidity up to 90% non-condensing. Its aluminum and steel construction provides durability in demanding industrial conditions.
: The FAIRINO FR3 delivers ±0.02 mm repeatability for high-precision tasks such as assembly, dispensing, and metalworking applications. The TCP reaches speeds up to 1 m/s with all six axes operating at up to ±180°/s.
: The FAIRINO FR3 features graphical programming with drag-to-teach functionality that reduces operator training times and enables fast deployment. It can be operated via a 10.1-inch teach pendant or mobile web terminal and supports ROS secondary development for integration into various automation systems.
: The FAIRINO FR3 is designed for precision assembly, electronics manufacturing, metalworking, automated dispensing, and material handling in compact spaces where a lightweight, collaborative six-axis robot arm is needed.

Compact cobot versus larger or fixed-reach industrial arms:

The FAIRINO FR3 is a lightweight six-axis cobot designed for precision work in confined spaces, positioned against larger industrial robots and manual assembly methods. Choose it when workspace is tight, payloads are light, and repeatability matters.

For parts under 3 kg in assembly cells tighter than 500 mm wide, the 128 mm footprint and 622 mm reach fit where larger arms cannot be mounted.
When ±0.02 mm accuracy is required for electronic components or precision metalworking, this repeatability outpaces manual placement or simpler fixed-automation tools.
In humid or wet environments such as food-grade or washdown assembly lines, IP66 protection and sealed construction survive cleaning without enclosure add-ons.
For rapid task changes on shared workcells, graphical drag-and-teach programming reduces retraining time compared to text-based or teach-by-demonstration-only robots.
On dispensing or small-parts handling lines where 1 m/s end-effector speed is sufficient, this arm delivers speed without the capital cost of larger multi-axis systems.
